ASTM A240 F904L Slip On Flat Face Flange AWWA C207 Table2 Class D Meets US Water Standards

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM A240 F904L

Payment & Shipping Terms:

Minimum Order Quantity:	3 Pieces
Price:	Negotiable
Packaging Details:	Ply-wooden Case / Pallet
Delivery Time:	5 - 60 work days
Payment Terms:	T/T, L/C
Supply Ability:	According To Customers' Request

Contact Now

All Products

Stainless Steel Seamless Pipe (321)

Stainless Steel Seamless Tube (308)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (146)

Fin Tube (685)

Heat Exchanger (22)

Heat Exchanger Tube (452)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (123)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (93)

Copper Alloy Tube (245)

Alloy Steel Tube (206)

Titanium Tube (17)

Bright Annealed Tube (164)

Boiler Tube (151)

Steel Fitting (838)

Steel Flange (627)

Others (404)

Cladding Parts (8)

Detailed Product Description

Standard:	ASTM A240	Material Grade:	F904L, 1.4539, N08904
Size:	1/2"-48"	Pressure:	Class150-2500/ PN6-PN100
Technics:	Froged	Application:	Petroleum,chemical,fittings And Connection
Highlight:	Water Standards Slip On Flange , Slip On Flat Face Flange , ASTM A240 Slip On Flange

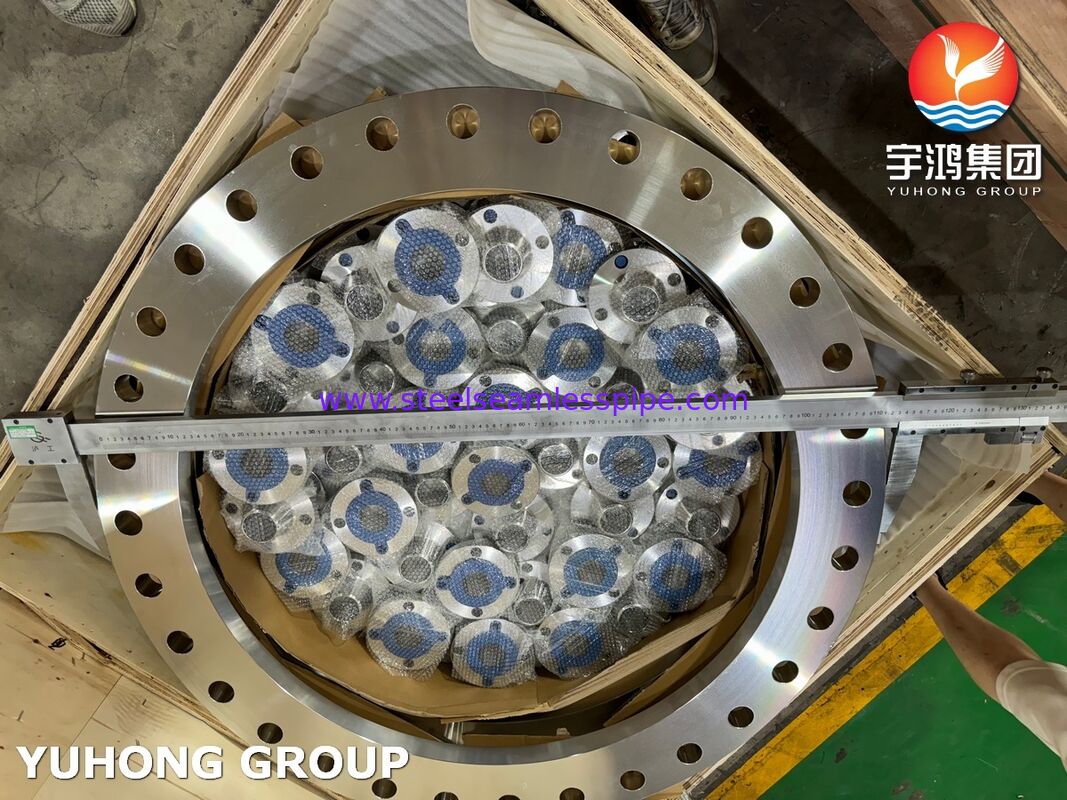

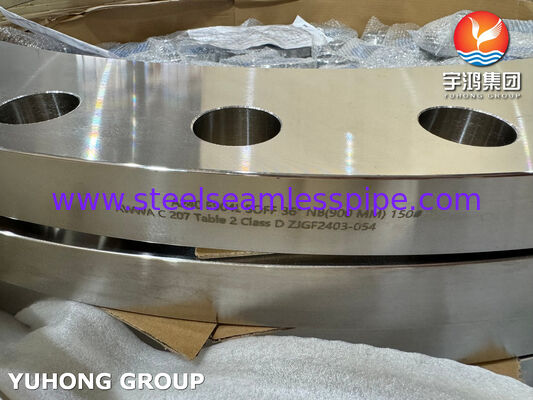

ASTM A240 F904L Slip On Flat Face Flange AWWA C207 Table2 Class D Meets US water standards

ASTM A240 is a standard specification from the American Society for Testing and Materials (ASTM) for chromium and chromium-nickel stainless steel plates, sheets, and strips used in pressure vessels and general applications.

904L, a high-alloy austenitic stainless steel, is renowned for its excellent corrosion resistance, particularly to sulfuric acid, phosphoric acid, and chloride-containing media. Its key alloying elements are high chromium, nickel, molybdenum, and copper content. This flange also conforms to AWWA C207 and meets the Water Works Association's "Steel Pipe Flanges" standard. It is recognized by the North American water industry and many general industries.

In the AWWA C207 standard, the default face type for Class D flanges is usually flat-face aligned, but it can also be specified as fully flat.

Chemical Composition (ASTM A240 F904L)
Element	Composition, % (min)	Composition, % (max)
Carbon (C)	-	0.02
Manganese (Mn)	-	2
Phosphorus (P)	-	0.045
Sulfur (S)	-	0.035
Silicon (Si)	-	1
Chromium (Cr)	19	23
Nickel (Ni)	23	28
Molybdenum (Mo)	4	5
Copper (Cu)	1	2
Nitrogen (N)	-	0.1
Iron (Fe)	Balance

Mechanical Properties (ASTM A240 F904L)
Property	Requirement	Note
Tensile Strength, min	71 ksi (490 MPa)
Yield Strength (0.2% offset), min	31 ksi (220 MPa)
Elongation in 2 in. (50 mm), min	35%	For plates ≤ 3/4 in. (19 mm) thick. Slightly lower for thicker plates.
Hardness, max	90 HRB (Rockwell B)	Typical Brinell Hardness (HBW) is ~180.
Important Fabrication Note: To achieve these mechanical properties and optimal corrosion resistance, the material and any welded fabrications must be supplied in the solution-annealed condition. This involves heating to a suitable temperature (e.g., 1100-1150°C) and rapidly quenching.
