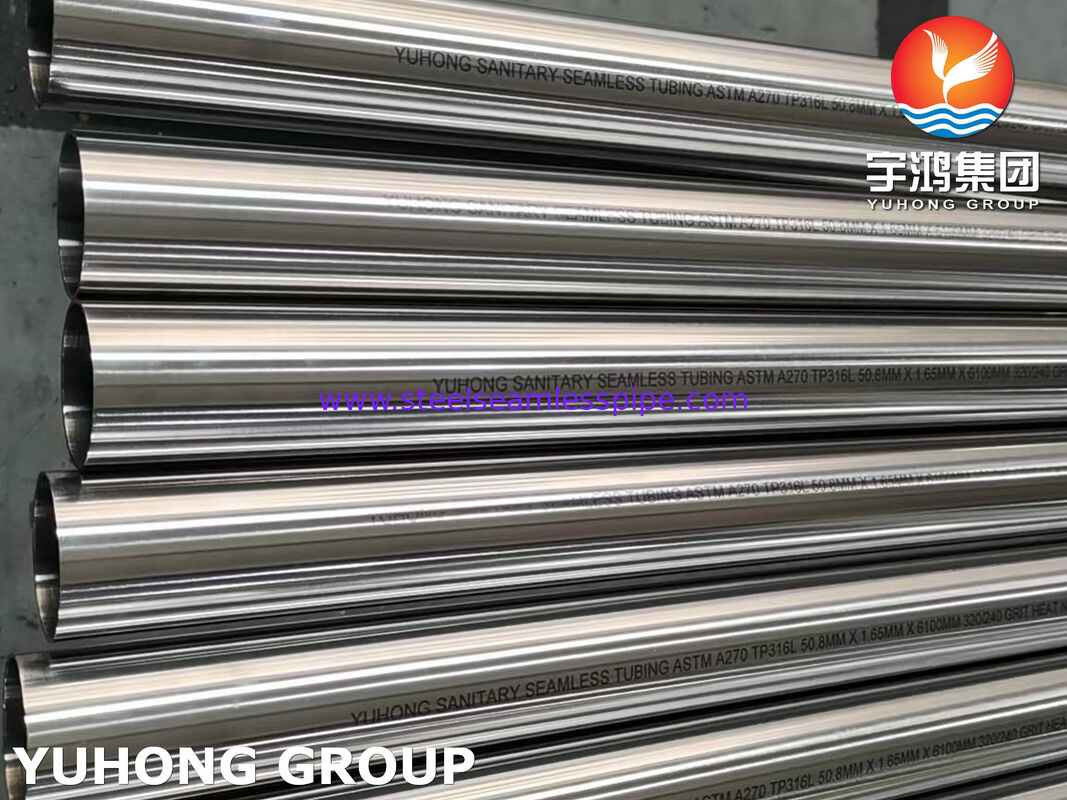

3A / ASTM A270 TP316L Bright Annealed Stainless Steel Sanitary Tube For Sugar Refinery

3A / ASTM A270 TP316L Bright Annealed Stainless Steel Seamless Sanitary Tube For Sugar Refinery

The stainless steel 316L sanitary tube refers to a high-precision, corrosion-resistant, seamless tube, in accordance with the ASTM A270 standard for sanitary applications. It is engineered specifically for hygienic process systems where cleanliness, corrosion resistance, and product purity are paramount, such as in sugar refineries, food & beverage, pharmaceutical industries, chemical processing, and so on. Stainless steel grade 316L, with its added Molybdenum(2-3%), provides superior resistance to pitting and crevice corrosion compared to standard 304 stainless steel. The seamless construction eliminates the risk of crevices and inclusion traps that can exist in welded tubes, ensuring a fully homogeneous structure. The Bright Annealed (BA) finish is extremely smooth, limiting bacterial adhesion and facilitating easy cleaning and sterilization (CIP - Clean-in-Place). ASTM A270 Stainless Steel Sanitary Tube can be polished either on the inside surface, outside surface, or on both surfaces, which can be customized depending upon the needs of the customer. YUHONG GROUP provides ASTM A270 TP316L stainless steel sanitary tube sizes from 6mm to 76.2mm OD in 20 feet standard lengths. Custom lengths and sizes are available upon the client’s detailed request.

Chemical Composition of ASTM A270 TP316L Sanitary Tube:

ASME SA270 TP316L Dairy Tube’s Mechanical Strength:

Key Advantages and Features of 316L Sanitary Tubes:

• Superior Corrosion Resistance: The Molybdenum content is key for resisting chlorides and acidic by-products in sugar processing.
• Low Carbon Content (<0.03%): "L" grade minimizes carbide precipitation during welding, preventing "weld decay" and ensuring corrosion resistance in the heat-affected zone.
• Hygienic, Non-Porous Surface: The seamless, smooth BA finish prevents product entrapment and biofilm formation, meeting 3-A Sanitary Standards.
• High Strength And Durability: Suitable for a wide range of pressures and temperatures found in refinery processes (evaporators, crystallizers).
• Ease of Fabrication & Welding: Excellent weldability, ideally via automated orbital welding, creating smooth, flush welds for a continuous sanitary surface.

Different Surface Finishes:

• Bright Annealed (BA): The standard and most common finish. Achieved by annealing in a controlled atmosphere (hydrogen) to prevent oxidation, resulting in a reflective, smooth surface. No additional pickling or passivation is usually required.
• Mechanically Polished (MP): After annealing, the tube is polished mechanically to achieve an even smoother finish.
• Electropolished (EP): An electrochemical process that removes a thin layer of surface material, smoothing peaks and enhancing the passive oxide layer. This provides the best cleanability and corrosion release properties.

Different Applications of SS316L Sanitary Tubes:

• Sugar Refinery: Transfer lines for raw juice, syrup, and molasses; heating/cooling coils in evaporators and vacuum pans; CIP lines; polished sugar slurry lines; hot water and steam lines for sterilization.
• Food & Beverage: Dairy processing (milk, whey), breweries, wineries, soft drinks, and high-acid food products.
• Pharmaceutical & Biotech: Process lines for purified water (WFI), fermentation, media transfer, and sterile product lines.
• Cosmetics: Transfer of creams, lotions, and liquid products.
• Fine Chemical: Where product purity and corrosion resistance are required.
