SEAMLESS COPPER ALLOY TUBE DIN 86019 CuNiFe 90/10 C70600 PIPE

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	CuNiFe 90/10 C70600

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Packaging Details:	PLYWOOD CASE,BUNDLE,PALLET
Delivery Time:	7DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (322)

Stainless Steel Seamless Tube (315)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (147)

Fin Tube (686)

Heat Exchanger (22)

Heat Exchanger Tube (453)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (125)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (207)

Titanium Tube (17)

Bright Annealed Tube (167)

Boiler Tube (151)

Steel Fitting (838)

Steel Flange (631)

Others (404)

Cladding Parts (8)

Detailed Product Description

MATERIAL:

CuNiFe 90/10 C70600

STANDARD:

ASTM B111, DIN 86019

OD:

1/2" To 48"

WT:

Sch10s To XXS

Highlight:

seamless copper alloy tube DIN 86019

CuNiFe 90/10 alloy pipe

C70600 copper alloy tube

SEAMLESS COPPER ALLOY TUBE DIN 86019 CuNiFe 90/10 C70600 PIPE

CuNiFe 90/10 is the alloy (90% Copper, 10% Nickel, plus Iron).Copper Nickel CuNi alloys are alloys of copper and nickel – with or without other elements – where the zinc content may not be more than 1%. Additions of iron significantly improve the resistance of Cu-Ni alloys to erosion corrosion in flowing seawater and other aggressive waters.

CuNiFe 90/10 C70600 Material Grade:

KS D5301,JIS H3300	C7060T
ASTM B111	C70600
ASTM B466	C70600
BS2871	CN102
AS1752	C70600
DIN17664	CuNi10Fe 1Mn
DIN 86019 WL2.1972	CuNi10Fe 1.6Mn
EEMUA 144	7060X
MIL-T-16420K	706
EN12449	CW352H

CuNiFe 90/10 C70600 Chemical Composition:

Element	Weight %
Copper	Remainder
Nickel	9-11
Lead	0.05
Iron	1-1.8
Zn	1 max
Mn	1 max

Typical Uses for C706 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines

INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators

MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses

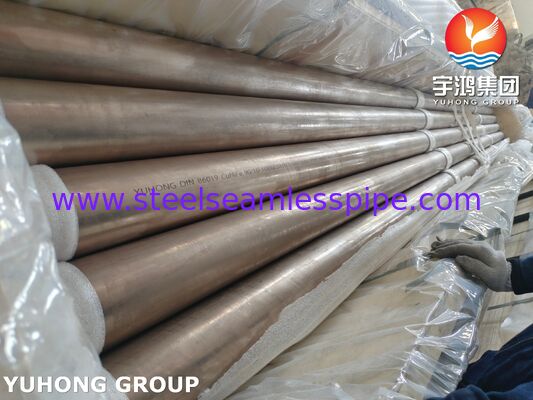

SEAMLESS COPPER ALLOY TUBE DIN 86019 CuNiFe 90/10 C70600 PIPE 0
