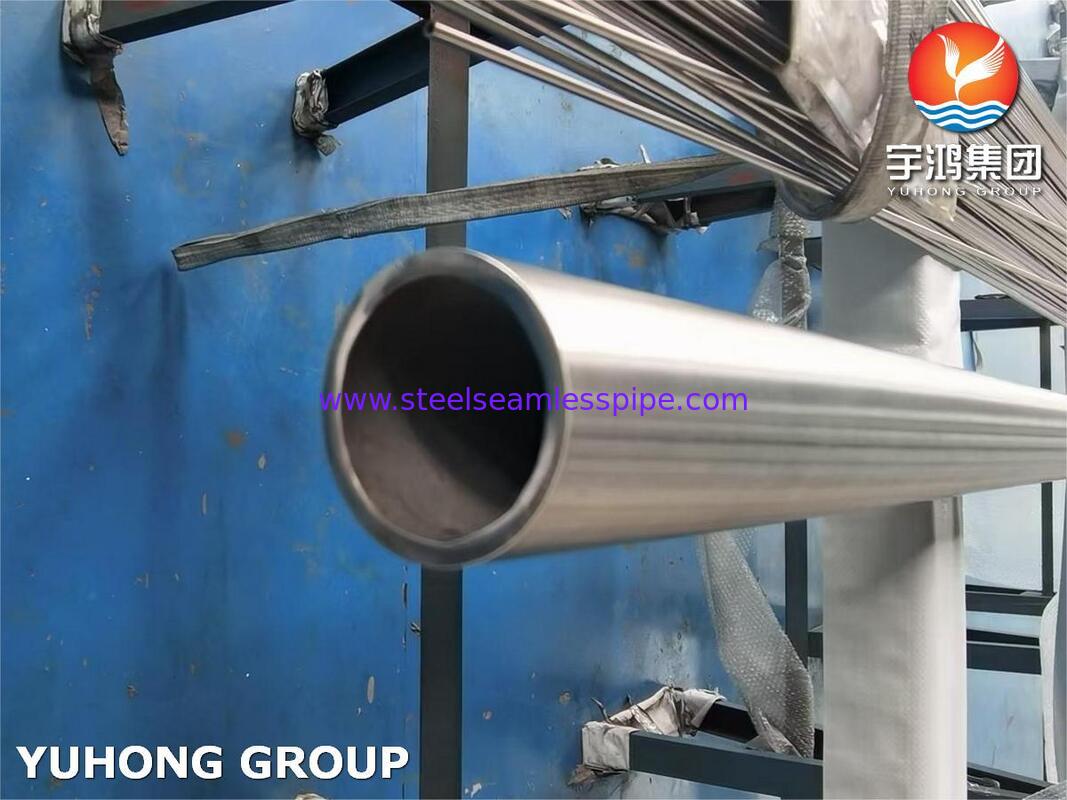

ASTM B409 Alloy 800HT (UNS N08811) Seamless Nickel Alloy Tube for High Temperature Service

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B407 Alloy 800HT Seamless Pipe

Payment & Shipping Terms:

Minimum Order Quantity:	500 KGS
Price:	Negotiable
Packaging Details:	Wooden Cases
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
Supply Ability:	Depends On Quantity

Contact Now

All Products

Stainless Steel Seamless Pipe (327)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (152)

Fin Tube (698)

Heat Exchanger (24)

Heat Exchanger Tube (456)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (124)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (130)

Nickel Alloy Pipe (271)

Nickel Alloy Tube (96)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (20)

Bright Annealed Tube (173)

Boiler Tube (151)

Steel Fitting (855)

Steel Flange (655)

Others (404)

Cladding Parts (8)

Detailed Product Description

Item:	Specification	Standard:	ASTM B409 / ASME SB409, Compliant With UNS N08811
Grade:	Alloy 800HT (UNS N08811), Nickel-Iron-Chromium Alloy	Type:	Seamless Tube (SMLS), Industrial Grade, High-Temperature Service
Surface:	Annealed & Pickled (A/P), Smooth & Rust-Free, Ra ≤ 1.6μm; 2B/BA Optional	OD (Outside Diameter):	1/8” – 24” (3.18mm – 610mm); Common: 6mm-159mm; Tolerance: ±0.13mm (≤25.4mm)
WT (Wall Thickness):	SCH 5S – SCH 160, XXS (1.0mm – 20mm); Common: 1.65-5.0mm; Tolerance: ±10% Of Nominal	Length:	6m, 12m, Random Length; Cut-to-Length Available (Tolerance ±5mm)
Ends:	Plain End (PE), Beveled End (BE, 37°), Deburred; Custom End Treatment Optional
Highlight:	ASTM B409 nickel alloy tube , UNS N08811 seamless tube , high temperature nickel alloy tube

ASTM B409 Alloy 800HT (UNS N08811) Seamless Nickel Alloy Tube for High Temperature Service

Product Description

ASTM B409 Alloy 800HT is a nickel‑iron‑chromium alloy with controlled carbon, aluminum, and titanium for elevated‑temperature strength. It offers excellent creep‑rupture strength, oxidation resistance, and carburization resistance up to 1100°C. Widely used in furnace components, heat exchangers, petrochemical processing, and high‑temperature piping systems.

Chemical Composition (wt%)

Alloy Grade	Ni (Nickel)	Fe (Iron)	Cr (Chromium)	C (Carbon)	Al (Aluminum)	Ti (Titanium)	Mn (Manganese)	Si (Silicon)	P (Phosphorus)	S (Sulfur)
Alloy 800HT (UNS N08811)	30.0-35.0	Bal.	19.0-23.0	0.06-0.10	0.20-0.60	0.60-1.00	≤1.50	≤1.00	≤0.030	≤0.015

Typical Mechanical Properties

Mechanical Property	Standard Requirement (ASTM B409)	Typical Value
Yield Strength (Rp0.2), MPa	≥275	290-350
Tensile Strength (Rm), MPa	≥550	580-650
Elongation (A), %	≥30	35-45
Hardness (HB), Brinell	≤200	160-190
Creep-Rupture Strength (1000°C/1000h), MPa	≥10	12-15

Available Tests

Test Type	Standard
Eddy Current Test (ECT)	ASTM B409
Hydrostatic Pressure Test	ASTM B409
Tensile & Creep-Rupture Test	ASTM E8/E8M, ASTM E139
Chemical Composition Test (PMI)	Spectrometer
Oxidation & Corrosion Test	ASTM G48, ASTM G110
Hardness Test	ASTM E10

Core Product Advantages

Superior High-Temperature Performance: Operates stably up to 1100°C, with excellent creep-rupture strength and high-temperature stability, no deformation under long-term high-temperature stress.
Excellent Oxidation & Carburization Resistance: Stable in cyclic heating and harsh industrial atmospheres, not easy to oxidize or decarburize, extending service life.
Reliable Corrosion Resistance: Resistant to many aqueous environments, high-temperature gases and medium corrosion, adapting to petrochemical and high-temperature harsh scenarios.
Stable Microstructure: Controlled Al+Ti composition and solution annealing treatment ensure uniform microstructure, good toughness and fatigue resistance.
Strict Quality Compliance: Fully complies with ASTM B409/ASME SB409 standard, MTC (EN 10204 3.1) available, full traceability, reliable for critical applications.
Precise Dimensions & Easy Assembly: Seamless process, precise OD/WT tolerance, good interchangeability, easy to weld and assemble with other components.

Packaging & Delivery

Packaging Standard: Seaworthy export packaging (wooden case, steel frame), each tube wrapped with anti-rust paper/plastic film, moisture-proof, anti-collision and anti-rust.
Marking: Each package is marked with product information (standard, grade, OD, WT, length, batch number) and export marks for easy traceability and customs clearance.
Delivery Time: 10-15 days for stock specifications; 25-35 days for customized specifications.
Trade Terms: Support FOB, CIF, EXW and other trade terms, cooperate with professional international logistics to ensure timely delivery.

Application Scope

Industry Field	Typical Applications
Petrochemical	Cracking furnace tubes, reformer tubes, high-temp reaction pipelines
Power Generation	Boiler superheater/reheater tubes, nuclear power auxiliary pipelines
Heat Exchange	Heat exchanger tubing bundles, condenser/evaporator tubes
Metallurgy	Heat treatment furnace tubes, smelting equipment pipelines
Other	Furnace components, high-temp steam/flue gas pipelines
