ASTM A403 WP321-S 180° Elbow Stainless Steel Pipe Fitting

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A403 WP321-S

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Wooden Cases
Delivery Time:	15-20 Days
Payment Terms:	,T/T,L/C
Supply Ability:	Depends On Quantity

Contact Now

All Products

Stainless Steel Seamless Pipe (322)

Stainless Steel Seamless Tube (315)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (147)

Fin Tube (686)

Heat Exchanger (22)

Heat Exchanger Tube (453)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (125)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (207)

Titanium Tube (17)

Bright Annealed Tube (167)

Boiler Tube (151)

Steel Fitting (838)

Steel Flange (631)

Others (404)

Cladding Parts (8)

Detailed Product Description

Standard:	ASTM A403 / ASME SA403	Grade:	WP321-S (UNS S32100)
Type:	180° Elbow, Stainless Steel Pipe Fitting	Wall Thickness:	SCH 10S – SCH 80S
Outside Diameter:	12.7mm – 610mm	Surface:	Annealed & Pickled (A/P, Acid Pickling + Annealing), 2B Optional; Acid Pickling And Annealing Process Ensures Surface Cleanliness And Enhances Corrosion Resistance
Highlight:	ASTM A403 WP321-S stainless steel elbow , 180° stainless steel pipe fitting , seamless stainless steel elbow fitting

ASTM A403 WP321-S 180° Elbow Stainless Steel Pipe Fitting

Brief Introduction

ASTM A403 WP321-S 180° elbow is a titanium-stabilized austenitic stainless steel pipe fitting, designed for pipeline direction change (180° U-turn) in industrial systems. It complies with ASTM A403 standard, features excellent anti-intergranular corrosion and high-temperature performance, easy to install, widely used in various medium transport pipelines requiring corrosion resistance and structural stability.

Chemical Composition (wt%)

Grade	C	Cr	Ni	Ti	Mn	Si	P	S
WP321-S (UNS S32100)	≤0.08	17.0-19.0	9.0-12.0	5*C-0.70	≤2.00	≤1.00	≤0.045	≤0.030

Typical Mechanical Properties

Mechanical Property	Standard Requirement (ASTM A403)	Typical Value
Yield Strength (Rp0.2), MPa	≥205	210-280
Tensile Strength (Rm), MPa	≥515	520-620
Elongation (A), %	≥35	38-45
Hardness (HB), Brinell	≤201	150-190
Impact Toughness (KV), J (-20℃)	≥60	70-90

Available Tests

Test Type	Standard

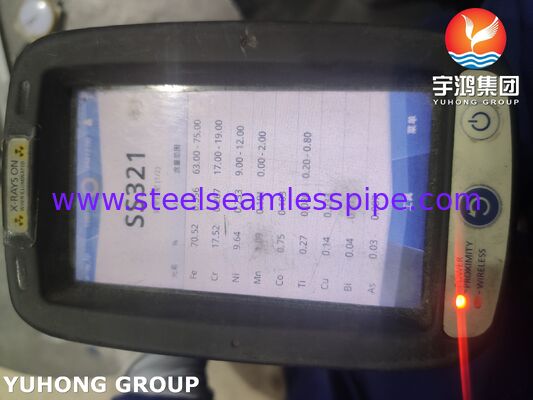

Chemical Composition Test (PMI)	Spectrometer
Tensile & Impact Test	ASTM E8/E8M, ASTM A370
Hardness Test	ASTM E10
Pressure Test (Hydrostatic/Pneumatic)	ASTM A403
Corrosion Resistance Test	ASTM G48
Dimensional & Visual Inspection	ASTM A403

Application Scope

Industry Field	Typical Applications
Petrochemical	Oil/gas pipeline U-turn, chemical reaction equipment pipeline fitting
Power Generation	Boiler, heat exchanger pipeline direction change fitting
Chemical Processing	Acid-base medium, organic solvent pipeline connection
Water Treatment	Seawater, sewage treatment pipeline U-turn fitting
Other	Food, pharmaceutical, metallurgy industry corrosion-resistant pipelines
