ASTM A182 F5 Alloy Steel Flange for High-Temp Pressure Systems

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A182 F5 Alloy Steel Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiate
Packaging Details:	Wooden Cases
Delivery Time:	7 Days
Payment Terms:	T/T,L/C
Supply Ability:	Depends On Quantity

Contact Now

All Products

Stainless Steel Seamless Pipe (322)

Stainless Steel Seamless Tube (315)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (147)

Fin Tube (686)

Heat Exchanger (22)

Heat Exchanger Tube (453)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (125)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (207)

Titanium Tube (17)

Bright Annealed Tube (167)

Boiler Tube (151)

Steel Fitting (838)

Steel Flange (631)

Others (404)

Cladding Parts (8)

Detailed Product Description

Standard:	ASTM A182 / ASME SA182	Grade:	F5 (UNS K11562)
Size Range:	1/2” – 24”	Outside Diameter:	12.7mm – 610mm
Pressure Class:	150LB – 2500LB, PN10 – PN420	Face Type:	RF (Raised Face), FF (Flat Face) Optional
Highlight:	ASTM A182 F5 alloy steel flange , high-temperature pressure system flange , alloy steel flange with warranty

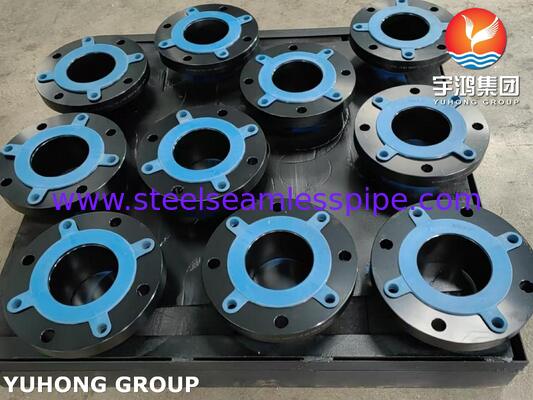

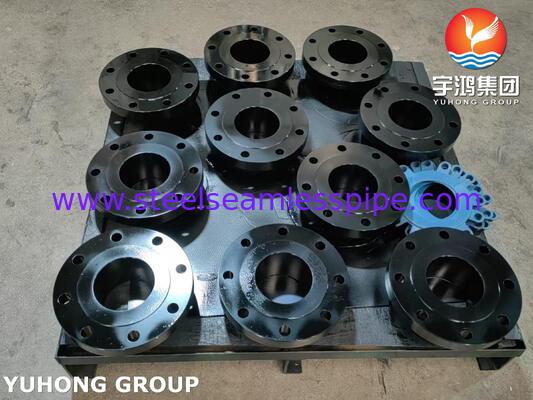

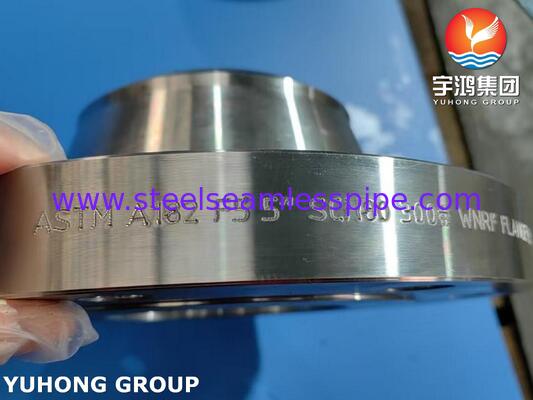

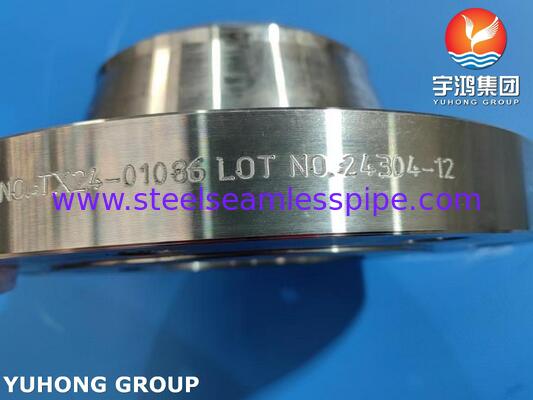

ASTM A182 F5 Alloy Steel Flange for High-Temp Pressure Systems

Brief Introduction

ASTM A182 F5 flange is a high-performance chromium-molybdenum (Cr-Mo) alloy steel flange, strictly compliant with ASTM A182 / ASME SA182 standard. It is made of F5 alloy steel (UNS K11562), featuring excellent high-temperature strength, good weldability, and strong corrosion resistance to high-temperature media. As a key pipeline connection component, it is mainly used for connecting pipelines in medium-high temperature and medium-high pressure industrial systems, suitable for long-term service under harsh working conditions up to 593℃, ensuring stable and leak-free pipeline operation.

Chemical Composition Analysis (wt%)

Alloy Grade	C	Cr	Mo	Mn	Si	P	S	Ni
F5 (UNS K11562)	0.10-0.20	4.00-6.00	0.45-0.65	0.30-0.60	0.10-0.35	≤0.035	≤0.035	≤0.40

Typical Mechanical Properties

Mechanical Property	Standard Requirement (ASTM A182)	Typical Value
Yield Strength (Rp0.2), MPa	≥276	280-360
Tensile Strength (Rm), MPa	≥485	490-590
Elongation (A), %	≥20	22-30
Hardness (HB), Brinell	≤207	160-200
Impact Toughness (KV), J (-20℃)	≥40	45-65

Available Tests

Test Type	Standard
Chemical Composition Test (PMI)	Spectrometer, ASTM A182
Tensile & Impact Test	ASTM E8/E8M, ASTM A370
Hardness Test	ASTM E10
Pressure Test (Hydrostatic/Pneumatic)	ASTM A182
Non-Destructive Testing (NDT)	UT, RT, MT, PT (ASTM E165)
Dimensional & Visual Inspection	ASTM A182, ASME B16.5

Product Application Scope

Industry Field	Typical Applications
Petrochemical	Oil/gas refining pipelines, chemical reaction equipment, high-temp medium conveying pipelines
Power Generation	Thermal power plant boilers, steam pipelines, nuclear power auxiliary system flanges
Chemical Processing	Acid-base medium pipelines, organic solvent conveying systems, high-temp reactor connections
Metallurgy	Smelting equipment pipelines, heat treatment furnace flue gas pipelines, high-temp steam pipelines
Other	High-temperature industrial pipelines, hazardous waste treatment equipment, pressure vessel connections
