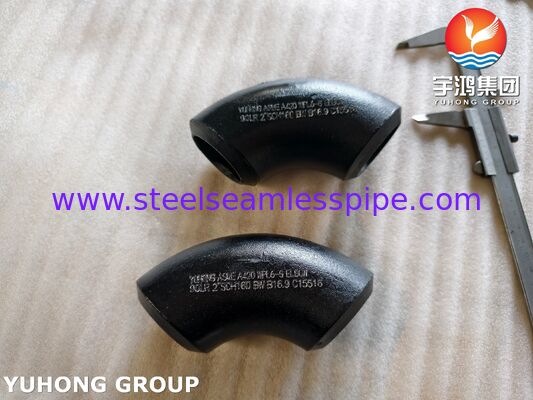

ASME SA420 Grade WPL6 Low Temperature Carbon Steel Fitting LTC Buttweld 90DEG Elbow

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA420 WPL6 Carbon Steel 90 Degree Elbow

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Packaging Details:	Plwood case or Pallet
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (323)

Stainless Steel Seamless Tube (318)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (148)

Fin Tube (690)

Heat Exchanger (22)

Heat Exchanger Tube (455)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (126)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (18)

Bright Annealed Tube (170)

Boiler Tube (151)

Steel Fitting (849)

Steel Flange (649)

Others (404)

Cladding Parts (8)

Detailed Product Description

Product Name:	Elbow	Specification:	ASTM A420 , ASME SA420
Material:	WPL6	O.D.:	1/8”NB To 48”NB
W.T.:	Schedule 10s - Schedule XXS	Surface:	Black Painting
Type:	45/90/180 Degree Elbow	Radius:	SR, LR, 3D, 5D ...
Application:	Power Generation, Oil & Gas, Chemical Processing, Pipeline
Highlight:	ASME SA420 WPL6 carbon steel elbow , low temperature buttweld 90DEG elbow , LTC steel fitting with warranty

ASME B16.9 ASME SA420 WPL6-S Carbon Steel Buttweld Pipe Fitting 90Deg LR Elbow

ASTM A420 / ASME SA420 WPL6 Buttweld Elbow, it is a pipe fitting (elbow) manufactured according to the material standard ASTM A420 (ASME SA420 is the equivalent Boiler and Pressure Vessel Code designation). The WPL6 designation specifies the grade of material, which is a normalized carbon steel suitable for low-temperature impact testing.

Chemical Composition of ASME SA420 Grade WPL6 Low Temperature Carbon Steel Pipe Fittings

Mn	C	P	S	Si	Cr	Mo	Ni	V	Cu	Cb
0.050-1.35	0.3	0.035	0.04	0.15-0.40	0.3	0.12	0.4	0.08	0.4	0.02

Mechanical Properties of ASME SA420 Grade WPL6 Low Temperature Carbon Steel Pipe Fittings

Standard	Yield Strength 0.2% Proof (MPa) min	Tensile Strength (MPa) min
ASTM A420	35	60-95

Impact Test temperature ASME SA420 LTC Low Temperature Carbon Steel Pipe Fittings

Grade	Impact Test Temperature, ℉ (℃)
WPL6	-50 (-45)
WPL9	-100 (-75)
WPL3	-150 (-100)
WPL8	-320 (-195)

ASTM A420 WPL6 Pipe Fittings VS ASTM A234 WPB Pipe Fittings

Feature	ASTM A420 WPL6	ASTM A234 WPB (Standard Grade)
Service Temp	Down to -50°F (-45°C)	Down to -20°F (-29°C)
Impact Test	Mandatory (Charpy V-Notch)	Optional (usually not required unless specified)
Heat Treatment	Normalizing required	As-formed is usually acceptable
Primary Use	Low-temperature/cryogenic service	Moderate temperature service

Applications

Because of its low-temperature toughness, WPL6 is used extensively in environments where carbon steel would otherwise become brittle and fail (brittle fracture).

Oil & Gas: Refineries, gas processing plants, and pipelines in cold climates (e.g., Northern Canada, Siberia).
Petrochemical: Plants handling liquefied gases like propane, butane, or ethylene, which are stored at cryogenic temperatures.
Power Generation: Feedwater systems and outdoor piping in cold weather regions.
Industrial Refrigeration: Ammonia plants and cold storage facilities.
