Nickel Alloy Steel U Bend Heat Exchanger Tube Monel400 ASME SB163 N04400

Nickel Alloy Steel U Bend Heat Exchanger Tube Monel400 ASME SB163 N04400

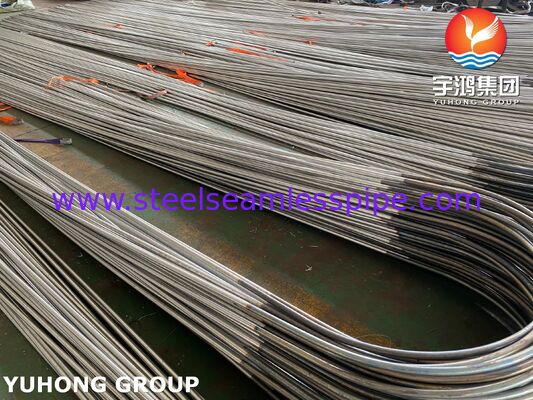

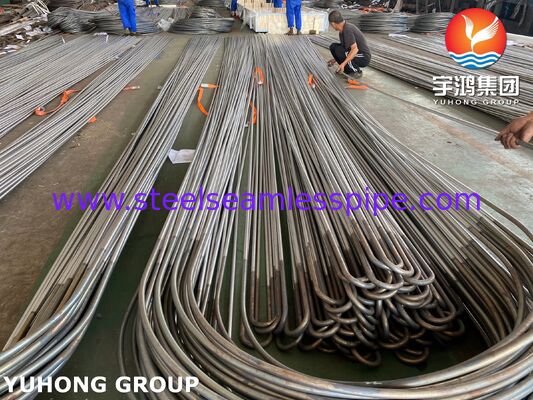

A Monel 400 U-bend tube is a high-performance tubular product specifically designed for heat transfer equipment. It combines the exceptional properties of the Monel 400 alloy with the functional "U" shape to manage fluid flow, temperature changes, and corrosion in demanding industrial environments.

U-Bend Tube are widely used in Heat Exchanger Systems:

• 'U' bending is done by cold working process.
• 'U' bending is done to the required radius as per customer drawings.
• The bend portion and six inch leg is stress relieved by resistance heating.
• Inert gas (Argon) is passed through it at the required flow rate to avoid oxidation in ID.
• The radius is checked for its OD and wall thinning with the recommended specification.
• The physical properties and micro-structure is checked at three different position.
• Visual inspection for waviness and cracks is done with Dye Penetrant Test.
• Each tube is then hydro tested at the recommended pressure to check for leakage.
• Cotton ball test is done to check the ID cleanliness of the tube.
• Thereafter pickled, dried, marked and packed.
• All procedure is strictly followed as per TEMA "C" and ASTM A-688.

Choosing Monel 400 for a U-bend tube is a strategic decision based on its unique combination of properties, particularly in environments where standard stainless steels would fail. Here are the primary reasons to select it:

- Superior Corrosion Resistance in Harsh Environments: This is the primary reason for choosing Monel 400. It offers excellent resistance to:

- Flowing Seawater: It is a go-to material for marine engineering, shipbuilding, and offshore platforms because it resists corrosion from saltwater .

- Acidic Conditions: It stands up remarkably well to hydrofluoric acid, as well as sulfuric and hydrochloric acids under reducing conditions, making it ideal for chemical processing equipment .

- Alkaline Solutions: It also resists corrosion from alkaline substances and salt solutions .

- Excellent Mechanical Properties: Monel 400 maintains high strength and toughness across a wide temperature range, from cryogenic sub-zero conditions up to around 500°C (1000°F). It also has good ductility, meaning it can be easily formed into complex shapes like a U-bend without losing its mechanical integrity .

- Resistance to Specific Corrosion Types: It is highly resistant to stress corrosion cracking and pitting, which are common failure modes for other materials in chloride-rich environments like seawater .

- Good Thermal Properties: The alloy has good thermal conductivity and a low rate of thermal expansion. Its thermal expansion coefficient is closely matched to carbon steel, which reduces mechanical fatigue at the joint where the tube connects to the equipment's tubesheet .

- Fabrication Friendly: Despite its high performance, Monel 400 can be welded and machined using standard techniques, which is essential for manufacturing the U-bend shape and integrating it into larger systems .

-Customer Specifications.



Some of the quality tests carried out by us includes:
