ASTM A105N Carbon Steel Forgings ASME Self Reinforced Nozzles for Pressure Vessels

ASTM A105N Carbon Steel Forged Self Reinforced Nozzles for Pressure Vessels

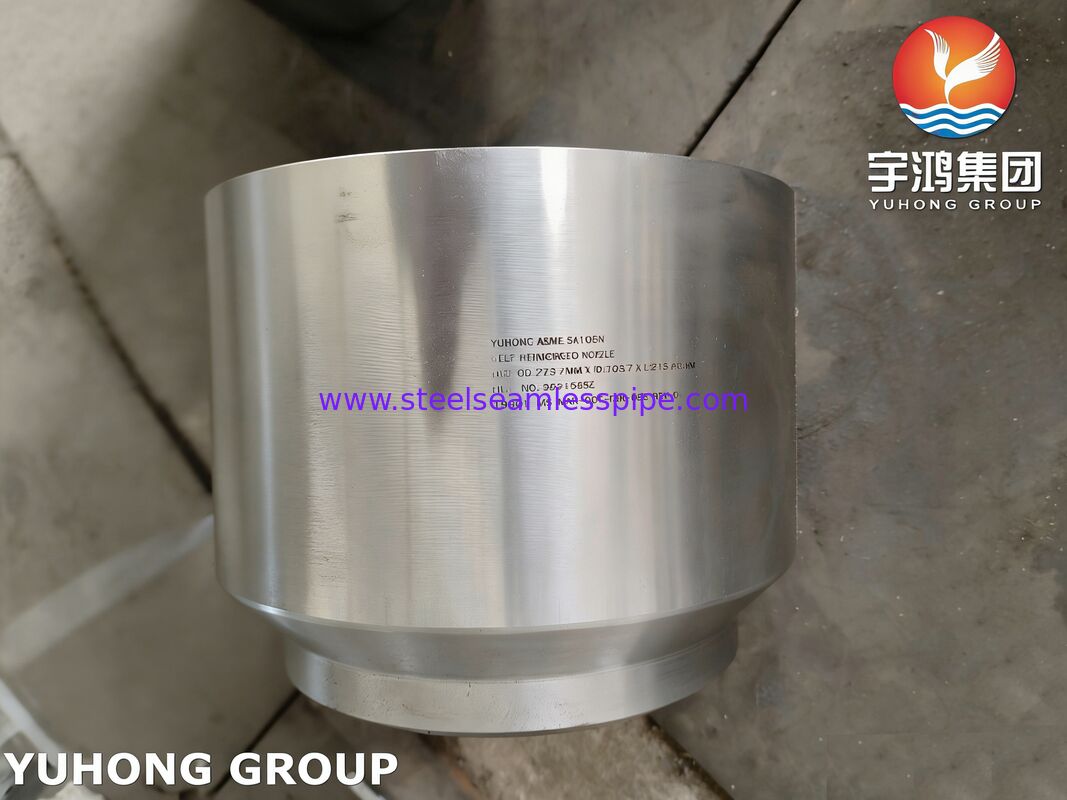

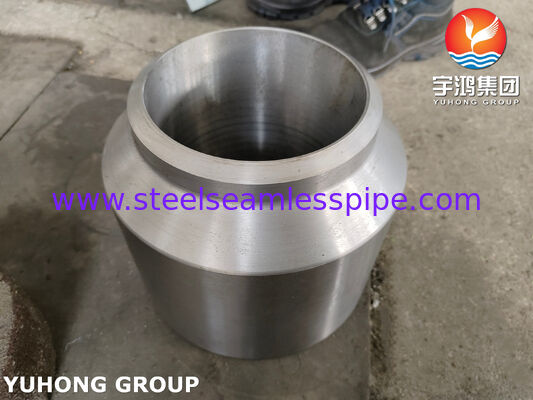

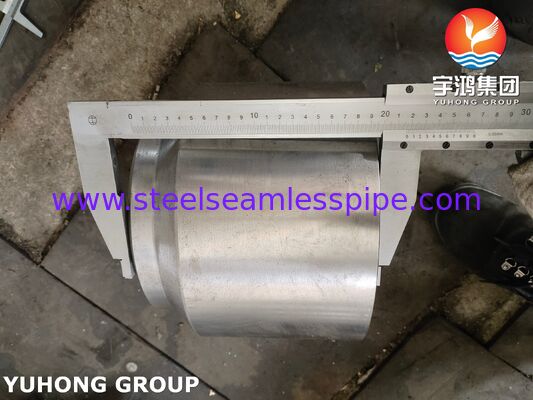

ASTM A105N Carbon Steel Self-Reinforced Nozzle is a pipe fitting (nozzle) used as an inlet or outlet connection on a pressure vessel. It is forged from a single piece of carbon steel and is designed so that its geometry provides the necessary reinforcement to handle internal pressure, eliminating the need for a separate reinforcement pad. It is a high-integrity connection point welded into a pressure vessel (like a heat exchanger, separator, or storage tank) or a large pipeline.

Available Standards and Materials

Advantages of Self-Reinforced Design:

1. Eliminates a Potential Leak Path: The standard "repad" design creates two weld seams that are potential sites for corrosion and leaks. A self-reinforced nozzle has a single, better-designed weld.

2. Reduces Stress Concentrations: The gradual, contoured shape minimizes stress concentrations at the junction, leading to a longer fatigue life, especially under cyclic loading.

3. Simplifies Inspection: With fewer welds, non-destructive examination (NDE) like radiography or ultrasonic testing is simpler and more effective.

4. Better for High-Pressure or Cyclic Service: It is the preferred design for severe service conditions.

Applications

1. High-Pressure and High-Temperature Services

2. Cyclic and Fatigue Service (Vibration and Temperature Swings)

3. Sour Service (Wet H₂S Environments)

4. Low-Temperature Services (Cold climates or Chilling)

5. Critical Rotating Equipment (Compressors and Pumps)

6. Heat Exchangers (Especially Reboilers and Coolers)
