ASTM A182 F53 UNS S32750 1.4410 Super Duplex Stainless Steel Socket Weld RF Flange With Flange Water Line

Product Details:

Place of Origin:	China , USA, UK
Brand Name:	YUHONG
Certification:	API, PED,
Model Number:	ASTM A182 F53

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	NEGITABLE
Packaging Details:	PLY-WOODEN CASE
Delivery Time:	7DAYS
Payment Terms:	T/T , LC
Supply Ability:	100 TONS PER MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (156)

Fin Tube (703)

Heat Exchanger (28)

Heat Exchanger Tube (458)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (101)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (860)

Steel Flange (659)

Others (404)

Cladding Parts (8)

Detailed Product Description

Specification:	ASTM A182	Material:	Super Duplex Stainless Steel
Material Grade:	F53 UNS S32750	Flange Type:	Socket Weld
Flange Specification:	ASME B16.5	Seal:	Flat Face
Highlight:	ASTM A182 F53 stainless steel flange , Super Duplex S32750 socket weld flange , RF flange with water line

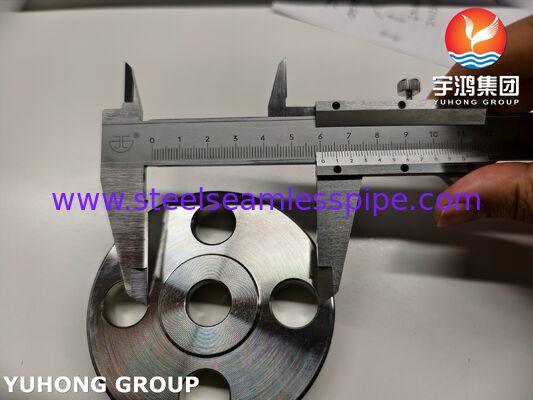

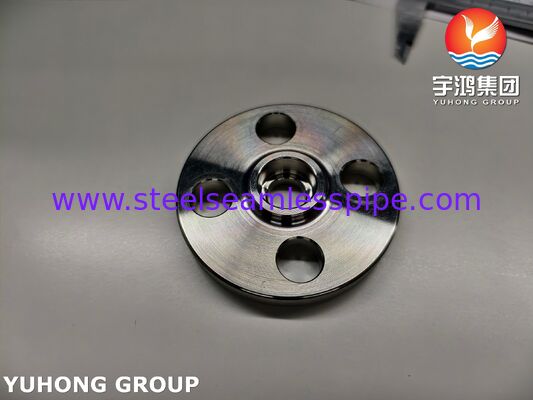

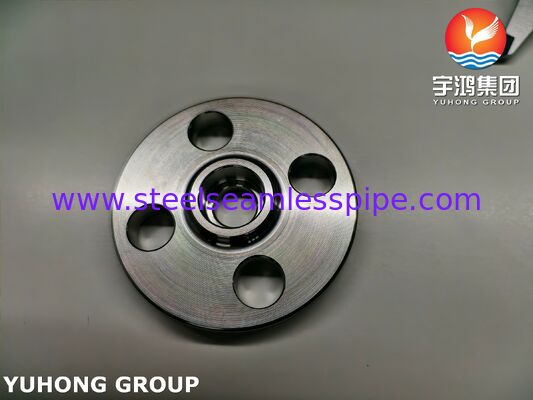

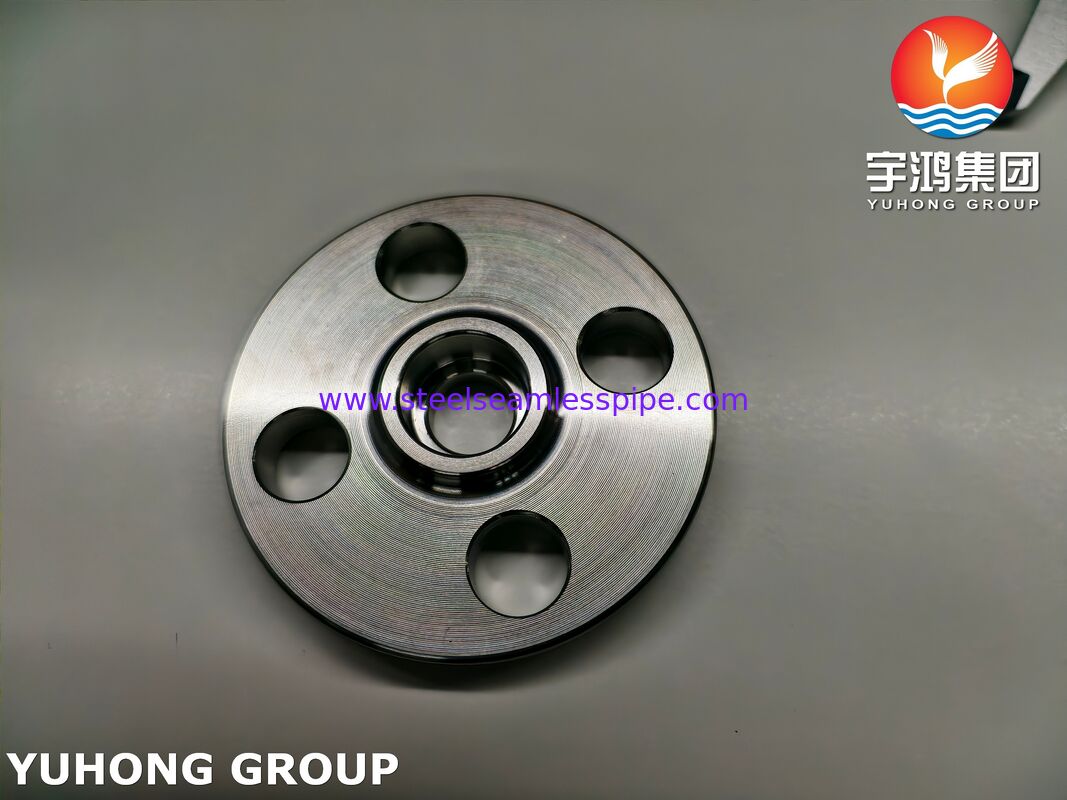

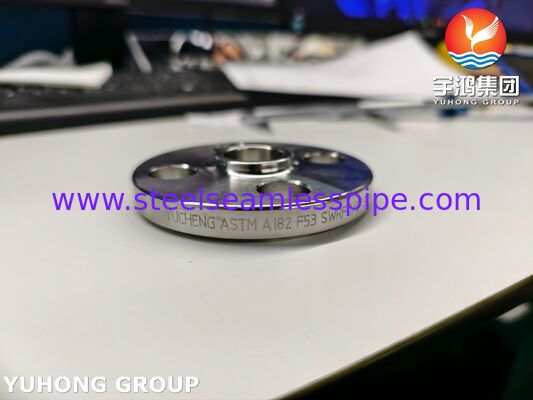

ASTM A182 F53 UNS S32750 1.4410 Super Duplex Stainless Steel Socket Weld RF Flange With Flange Water Line

Super duplex stainless steel socket weld flange,

specifically designed for harsh environments requiring high corrosion and strength, such as marine engineering and petrochemical industries.

The most common RF sealing face type, used with gaskets, is suitable for various pressure ratings. Commonly used in offshore platforms, seawater desalination, high-pressure, high-acidity oil and gas wells, chemical equipment, heat exchangers, etc

Chemical Composition (%)
Element	Composition Range
Carbon (C)	≤ 0.030
Manganese (Mn)	≤ 1.20
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.020
Silicon (Si)	≤ 0.80
Chromium (Cr)	24.0 – 26.0
Nickel (Ni)	6.0 – 8.0
Molybdenum (Mo)	3.0 – 5.0
Nitrogen (N)	0.24 – 0.32
Copper (Cu)	≤ 0.50

Mechanical Properties (Room Temperature)
Property	Value (for flange thickness ≤ 2" / 50mm)
Tensile Strength, Rm (min)	795 - 800 MPa (116 ksi)
Yield Strength, Rp0.2 (min)	550 MPa (80 ksi)
Elongation (in 2" or 50mm), min	15%
Hardness (Brinell HBW), max	310 HBW

Application:

Oil and Gas Industry: Subsea production systems, offshore high-pressure/high-temperature wells, acid gas treatment equipment
Marine Engineering and Offshore Platforms: Heat exchanger tubes, water treatment and supply systems, fire protection systems, high-pressure pump outlet flanges for seawater injection systems
Chemical Processing Industry: Reactors for treating hot acids containing chlorides, heat exchanger piping connections, complete chemical equipment sets
Seawater Desalination Equipment: High-pressure piping for high-pressure reverse osmosis units, brine heaters, desalination equipment

ASTM A182 F53 UNS S32750 1.4410 Super Duplex Stainless Steel Socket Weld RF Flange With Flange Water Line 1
