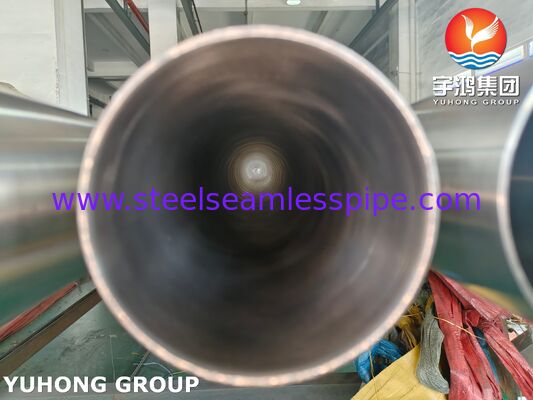

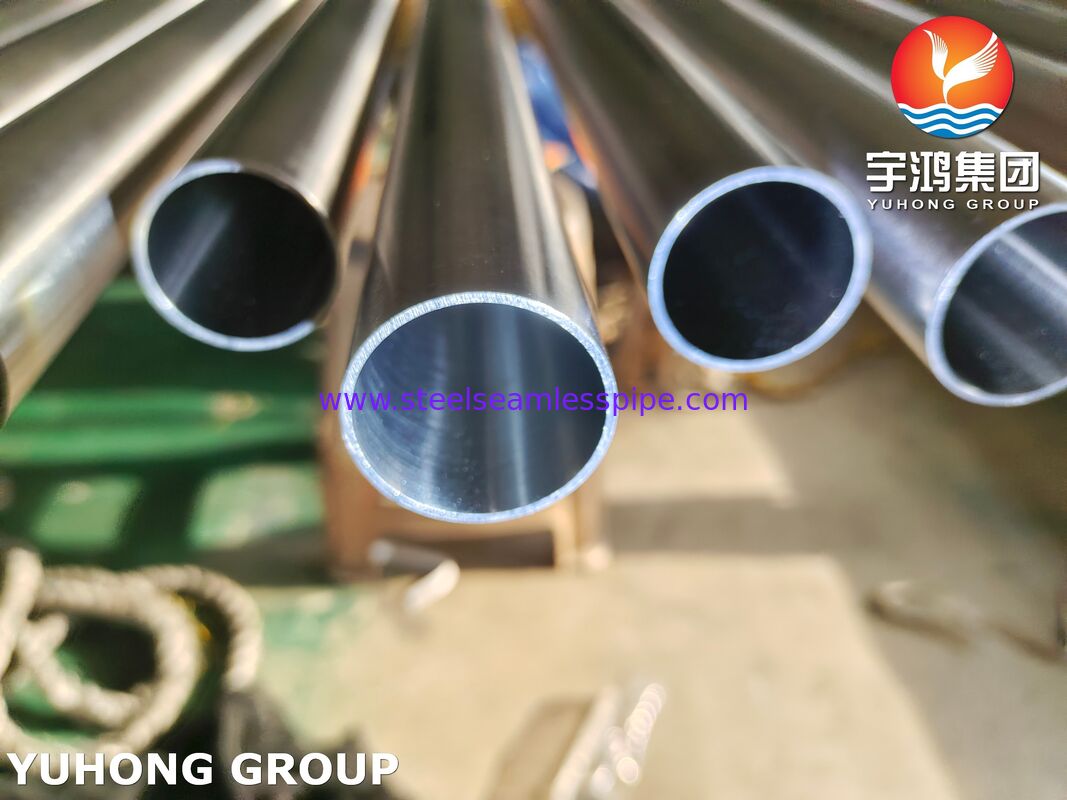

ASTM A270 Sanitary Tubing Food Grade 304 Stainless Steel Seamless Tube for Dairy Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A270 TP304 Stainless Steel Sanitary Tube

Payment & Shipping Terms:

Minimum Order Quantity:	500kgs
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (327)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (152)

Fin Tube (698)

Heat Exchanger (24)

Heat Exchanger Tube (456)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (124)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (130)

Nickel Alloy Pipe (271)

Nickel Alloy Tube (96)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (20)

Bright Annealed Tube (173)

Boiler Tube (151)

Steel Fitting (855)

Steel Flange (655)

Others (404)

Cladding Parts (8)

Detailed Product Description

Product Name:	Stainless Steel Sanitary Tubing	Standard:	ASTM A270 / ASME SA270

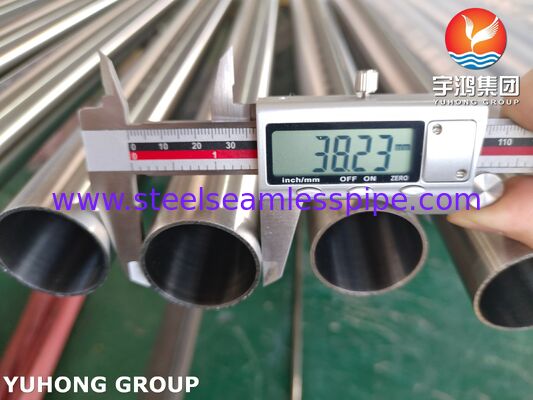

Material:	TP304/304L/316/316L	O.D.:	12.7, 25.4, 38.1, 50.8, 63.5MM....

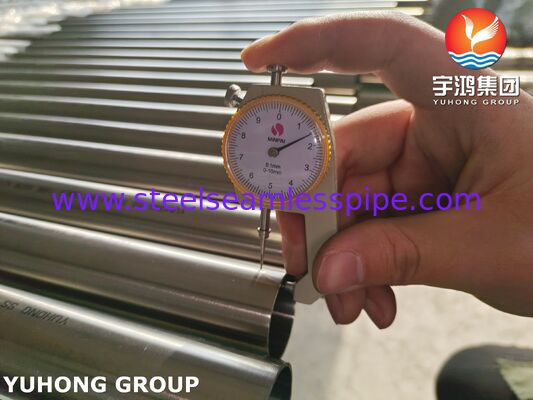

W.T.:	1.2, 1.5, 2MM....	Length:	Single Random, Double Random & Cut Length
Surface:	Polish, Bright Annealed	Type:	Seamless / Welded
END:	Plain End, Beleved End, Thread End
Highlight:	ASTM A270 sanitary tubing , food grade 304 stainless steel tube , seamless dairy industry tubing

ASTM A270 TP304 Stainless Steel Seamless Sanitary Tubing for Food Indusrty

ASTM A270 is the standard specification for seamless and welded austenitic stainless steel sanitary tubing. It covers tubing used in hygienic applications (food, dairy, beverage, pharmaceutical) where cleanability and corrosion resistance are critical. There are two main finish categories:

Mechanically Polished – ID (inner diameter) is mechanically polished to a smooth, bright finish. Common Ra (roughness average) values: 20 μin (0.5 μm) or 15 μin (0.38 μm).
Electropolished – After mechanical polishing, an electrochemical process removes a thin layer, further smoothing the surface and improving corrosion resistance. Often required for ultra-hygienic or pharmaceutical applications.

Typical finishes offered:

180 grit – standard dairy finish
240 grit – smoother, easier cleaning
320 grit / electropolish – for demanding CIP/SIP systems

Equivalent Grade of ASTM A270 TP304 Stainless Steel Seamless Tube Sanitary Tubing

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
304	S30400	304S31	58E	1.4301	X5CrNi18-10	2332	SUS 304

Chemical Composition of ASTM A270 TP304 Stainless Steel Seamless Tube Sanitary Tubing

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min.	–	–	–	–	–	18.0	–	8.0	–
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10

Mechanical Properties of ASTM A270 TP304 Stainless Steel Seamless Tube Sanitary Tubing

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201

What the difference between sanitary tube and normal tube?

Sanitary tube is designed for easy cleaning and bacteria‑free operation – the smooth inner surface and tight tolerances allow it to meet FDA and 3‑A sanitary standards.
Normal tube is made for strength, pressure, or structural use, but without the surface finish or cleanliness required for hygienic applications.

If you are supplying for the dairy industry, ASTM A270 sanitary tube with a polished ID is the correct product. Using “normal” tube (even if 304 stainless) would risk product contamination, difficult cleaning, and non‑compliance with food safety regulations.

Application
