Stainless Steel Sanitary Tube, ASME SA270 TP304 1.4301 Seamless/Welded and Polished

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASME SA270 TP304 1.4301

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depend on quantity
Payment Terms:	L/C,T/T
Supply Ability:	According to Clients' requirements

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (323)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (157)

Fin Tube (704)

Heat Exchanger (30)

Heat Exchanger Tube (459)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (103)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (861)

Steel Flange (660)

Others (405)

Cladding Parts (8)

Detailed Product Description

Product Name:	Stainless Steel Sanitary Polished Tube	Specification:	ASTM A270/ASME SA270
Material:	TP304	Type:	Seamless/Welded
Surface:	Polished, Bright Annealed	End:	Plain End, Beleved End, Thread End
Application:	Food And Beverage Industry, Pharmaceutical Industry, Biotechnology...
Highlight:	Stainless Steel Sanitary Tube TP304 , ASME SA270 seamless welded tube , Polished stainless steel tube 1.4301

YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

Stainless Steel Sanitary Tube, ASME SA270 TP304 1.4301 Seamless/Welded and Polished

ASTM A270/ASME SA270 specification covers grades of seamless, welded, and heavily cold worked austenitic and ferritic/austenitic stainless steel sanitary tubing. Seamless tubes shall be manufactured by a process that does not involve welding at any stage. Welded tubes shall be made using an automated welding process with no addition of filler metal during the welding process.

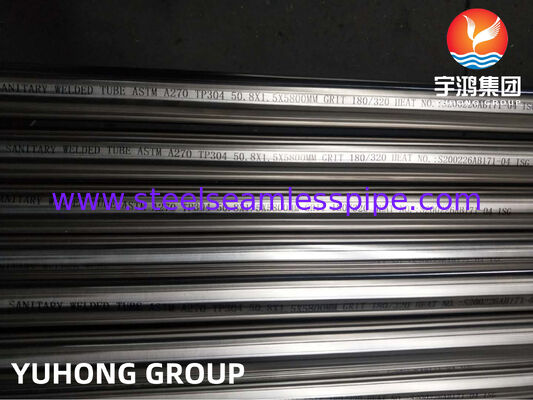

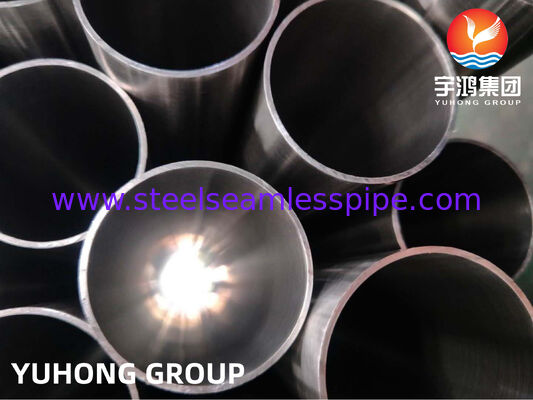

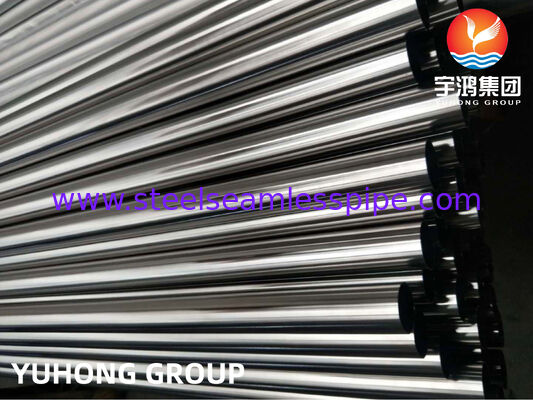

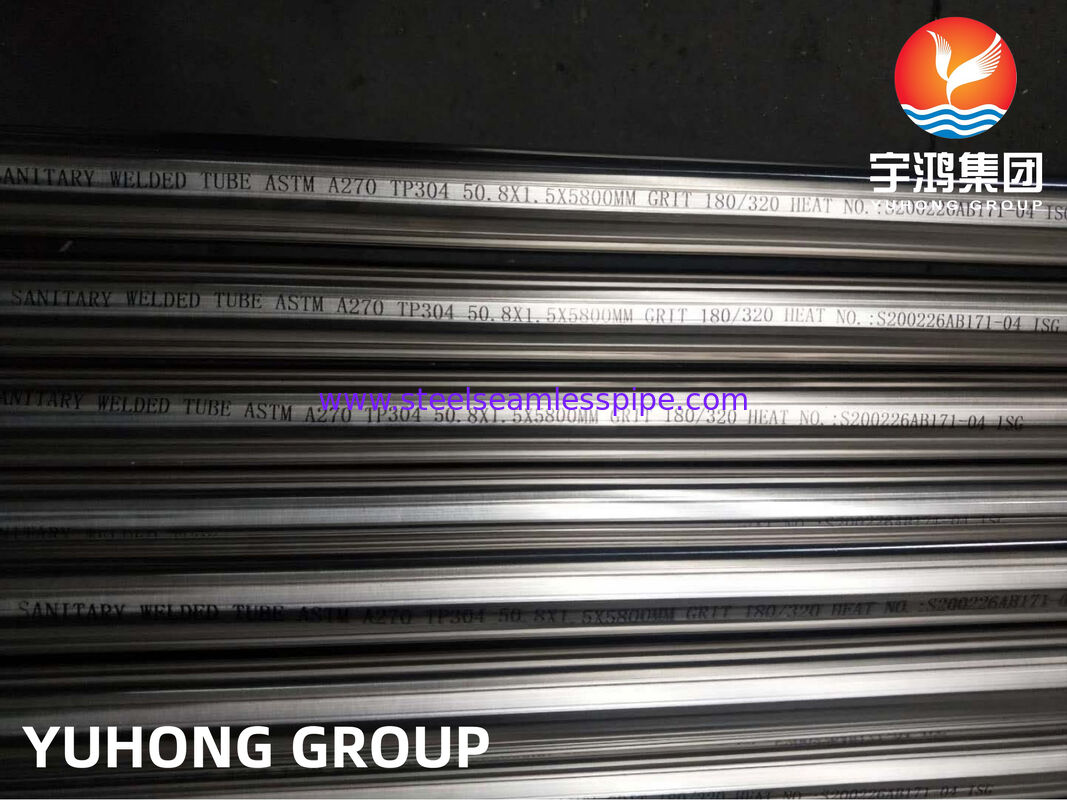

Stainless Steel Sanitary Tube per ASME SA270, grade TP304 (equivalent to 1.4301), available in seamless or welded construction and finished with a polished interior/exterior surface. It is designed for high-purity, corrosion-resistant applications in hygienic industries such as food processing, beverage, pharmaceutical, biotechnology, and dairy. The polished surface ensures low roughness, easy cleaning, and resistance to bacterial adhesion, complying with strict sanitary standards.

Grade	UNS No.	Old British		European Norm		Japanese JIS
		BS	En	No	Name
TP304	S30400	304S31	58E	1.4301	X5CrNi18-10	SUS 304

Chemical & Mechanical Properties

ASME SA270 TP304 Chemical Composition (%)
C	Mn	P	S	Si	Cr	Ni
≤0.08%	≤2.00%	≤0.045%	≤0.030%	≤1.00%	18.0%~20.0%	8.0%~11.0%

Mechanical Properties

Tensile Strength	Yield Strength	Elongation	Hardness(Rockwell) Number
≥ 515MPa	≥ 205MPa	≥ 35%	≤ B90

Permissible Variations in Dimensions

Size, Outside, Diameter, in. [mm]	Permissible Variations in Outside Diameter, in. [mm]		Pemissible Variations in Cut Length, in. [mm]
1.000 [25] and under	0.005 [0.13]	0.005 [0.13]	1/8	0
Over 1 [25] to 2 [50]	0.008 [0.20]	0.008 [0.20]	1/8	0
Over 2 [50] to 3 [75]	0.010 [0.25]	0.010 [0.25]	1/8	0
Over 3 [75] to 4 [100]	0.015 [0.38]	0.015 [0.38]	1/8	0
Over 4 [100] to5 [140], excl	0.015 [0.38]	0.015 [0.38]	3/16	0
5 1/2 [140] to 8 [200],excl	0.030 [0.75]	0.030 [0.75]	3/16	0
8 [200] to 12 [300]	0.050 [1.25]	0.050 [1.25]	3/16	0

Key Adventages

Corrosion resistance suitable for acidic and alkaline food, beverage, and pharmaceutical media.
Internal smooth surface prevents product adhesion, bacterial growth, and facilitates CIP/SIP (Clean-in-Place / Sterilize-in-Place) cleaning.
Full traceability of heat analysis and material certification per ASME SA270.
Option for polished exterior to improve cleanability and aesthetic appearance.

Key Applications

Dairy, beer, wine, juice, soft drink production lines
Pharmaceutical and biotech pure water / WFI systems
Cosmetic and personal care product transfer lines
High-purity chemical and semiconductor support systems (where 304 grade is acceptable)
