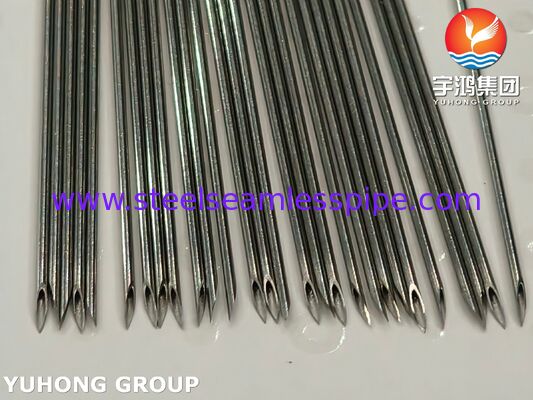

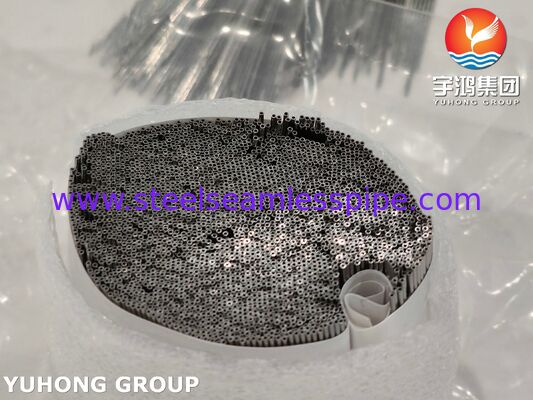

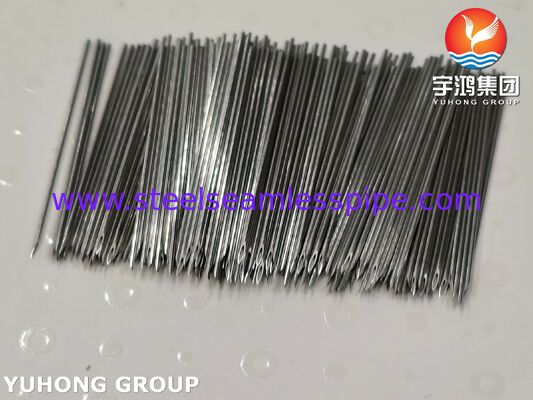

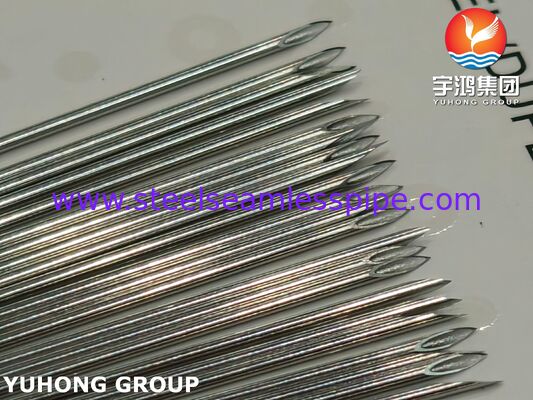

Tri-bevelled Stainless Steel Medical Injection Needle Tube , ISO9626 ISO7864 SUS304

Tri-bevelled Stainless Steel Medical Injection Needle Tube , ISO9626 ISO7864 SUS304

A SUS304 Tri-bevelled Stainless Steel Medical Injection Needle Tube is a precision-engineered, hollow cylindrical tube made from SUS304 grade stainless steel, specifically manufactured for parenteral medication administration and bodily fluid extraction. The "tri-bevelled" designation refers to the needle tip geometry, which features three distinct angled surfaces (primary, secondary, and tertiary bevels) converging at a single point, creating an exceptionally sharp, lancet-like point for minimal patient trauma. YUHONG GROUP manufactures high-volume disposable medical grade stainless steel needle tubes with various needle tips, for many years. Based on abundant production and exporting experience, we can customize most kinds of medical needle tubes according to clients’ drawings or samples.

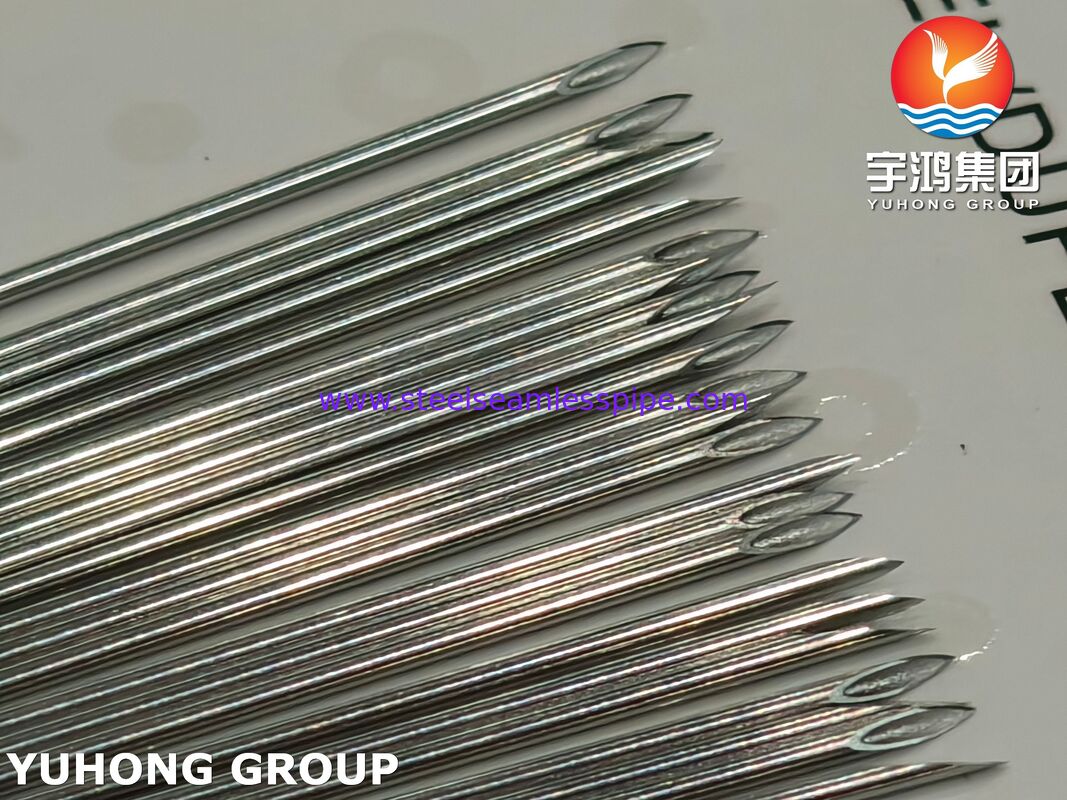

The triple bevel (or three-facet) design is a significant advancement over standard single or double bevel needles.

Primary Bevel: The longest bevel, forming the main cutting surface and the opening (lumen) of the needle.

Secondary Bevels (Two): Smaller, angled facets ground on either side of the primary bevel. These eliminate the "heel" and "barb" typically found on double-bevel needles.

Mechanism of Action: The three planes meet at a precise central point. Upon insertion, this point creates a clean, linear incision in the tissue rather than a tearing or wedging action. This reduces drag force, patient discomfort perception (sharpness score), and tissue coring (the removal of a tissue plug that can block the needle).

Key Features of SUS304 Injection Needles:

• Corrosion Resistance: Excellent resistance to bodily fluids, blood, and common disinfectants.
• High Stiffness: SUS304 work-hardens during cold drawing, providing the rigidity needed to penetrate tough skin/muscle without buckling.
• Formability: Can be easily hub-attached (glued or insert-molded), bent (e.g., Huber needle).
• Cost-Effective: Lower cost than high-nickel alloys (e.g., 316L), making it ideal for single-use disposable syringes.

Different Needle Points of SUS304 Injection Needles:

Different Applications of Stainless Steel Injection Needle Tube:

• Syringe Needles
• Biopsy Devices: To core out tissue samples.
• Ophthalmology: Irrigation/aspiration tips for cataract surgery.
• Endoscopic Injectors: Long, flexible needle tubes for injecting solutions into the GI tract.
• Dental Cartridges: Double-ended needles.
• Veterinary Syringes: High-volume dosing needles.
• Industrial Dispensing: Precise deposition of adhesives or lubricants (non-medical).

Different Types of Injection Needles (By Hub/Integration):

• Luer Slip Needle: Friction-fit onto a syringe tip.
• Luer Lock Needle: Threaded hub that screws onto syringe. Leak-proof, for high-pressure injections.
• Catheter Over-the-Needle (IV Cannula): The SS304 needle acts as a trocar. Once in the vein, the flexible plastic catheter is advanced, and the steel needle is withdrawn.
• Pen Needle: Ultra-short (4-8mm), ultra-fine (31G-34G), with a double-sided thread for insulin pens.
• Filter Needle: Contains a built-in micro-filter (5 µm to 20 µm) to trap glass or rubber particles.
