ASME SA350 LF2 CL.1 Carbon and Low-Alloy Steel Forged Body Flange for Low Temperature

• YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

ASME SA350 LF2 CL.1 Carbon and Low-Alloy Steel Forged Body Flange for Low Temperature

ASTM A350 (ASME SA350) applies to carbon and low-alloy steel forged or ring-rolled piping components intended primarily for low-temperature service, with mandatory notch toughness testing. Within this family, A350 LF2 is the most common LTCS grade used across oil & gas, petrochemical, LNG-adjacent utilities, and cold-region pipeline stations.

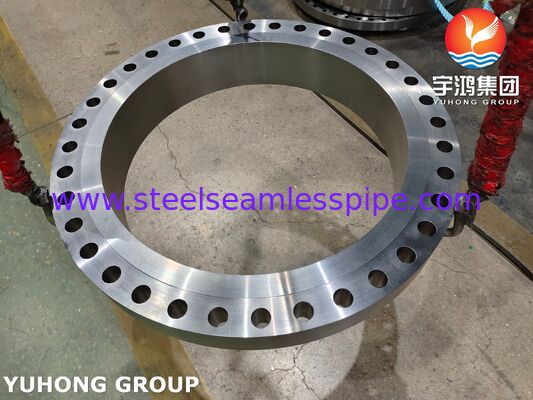

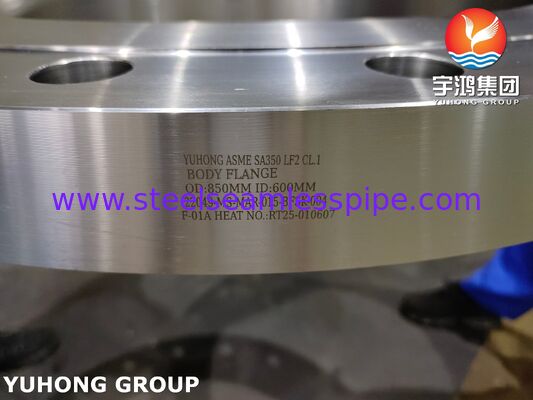

ASME SA350 LF2 CL1 flange is formed by integral forging, where the body (including sealing face, neck, bolt holes, etc.) is machined from a single forged billet without welded seams. It meets the standard’s requirements for chemical composition, mechanical properties (such as tensile strength, yield strength, elongation), and Charpy V-notch impact energy at -46°C. This flange is suitable for valves, equipment connections, and pressure vessel nozzles in petrochemical, natural gas, marine engineering, and low-temperature piping systems, ensuring safe and reliable operation under cryogenic conditions.

Chemical & Mechanical Properties

Mechanical Properties

Key Adventages

• The material is strictly controlled to maintain high impact toughness even at -46°C, effectively preventing brittle fracture.
• The flange body is integrally forged from a single billet, eliminating potential weak points and leakage risks associated with welds.
• Widely used in LNG (liquefied natural gas), liquid nitrogen, liquid oxygen, arctic pipelines, cryogenic valves, and pressure vessels.
• The low‑carbon and low‑alloy composition provides moderate corrosion resistance and resistance to stress cracking under low‑temperature conditions.
• Machined to standard dimensions, allowing direct connection with ASME B16.34 cryogenic valves and other low‑temperature piping components.

Specifications of ASTM A350 Body Flange

Testing

• Chemical Composition Analysis
• Mechanical Properties Testing(*Charpy V-Notch Impact Test)
• Non-Destructive Testing(NDT): Ultrasonic Testing, Magnetic Particle Testing, Liquid Penetrant Testing, Radiographic Testing
• Dimensional & Visual Inspection
• Metallographic Examination
