ASME SA335 P9 Studded Fin Tubes
Product Overview
ASME SA335 P9 Studded Fin Tubes are premium heat transfer components designed for high-temperature, high-pressure service in refineries, petrochemical plants, power stations, and industrial process heating systems. Manufactured from ASME SA335 Grade P9 seamless alloy steel pipe, these studded fin tubes are produced by automatically welding solid cylindrical studs onto the outer tube surface, substantially increasing the effective heat transfer area while maintaining excellent resistance to fouling, erosion, and thermal fatigue.
The 9% chromium and 1% molybdenum composition of P9 alloy steel provides excellent oxidation resistance, creep strength, and structural stability during prolonged operation at elevated temperatures. Compared with conventional finned tubes, studded fin tubes perform exceptionally well in dirty gas streams and applications involving particulate matter, where open stud geometry helps reduce ash accumulation and simplifies cleaning.
Engineered for demanding thermal environments, our ASME SA335 P9 studded fin tubes are manufactured using advanced automated stud welding equipment, ensuring uniform stud distribution, high weld integrity, and consistent thermal performance.
Product Features
- Manufactured from ASME SA335 Grade P9 seamless alloy steel
- Excellent heat transfer performance in high-temperature service
- High chromium alloy offers superior oxidation resistance
- Outstanding creep resistance for continuous operation
- Excellent resistance to thermal shock and cyclic loading
- Strong metallurgical stud-to-tube welds
- Reduced fouling compared with closely spaced fin designs
- Suitable for abrasive flue gas environments
- Long operational service life with minimal maintenance
- Custom stud configurations available for project-specific requirements
Typical Applications
ASME SA335 P9 studded fin tubes are widely used in:
- Fired heaters
- Petrochemical process furnaces
- Crude oil and vacuum heaters
- Delayed coking units
- Catalytic reforming units
- Boiler economizers
- Waste heat recovery boilers (WHRB)
- Fluidized bed boilers (CFB/BFB)
- Heat Recovery Steam Generators (HRSG)
- Sulfur recovery units (SRU)
- High-temperature industrial heat exchangers
- Thermal power plants
Typical Manufacturing Specifications
| Item |
Typical Range |
| Base Tube Standard |
ASME SA335 Grade P9 |
| Tube Type |
Seamless |
| Outside Diameter |
25.4–219.1 mm (1"–8") |
| Wall Thickness |
2.8–25 mm |
| Tube Length |
Up to 12,000 mm |
| Stud Diameter |
6–16 mm |
| Stud Height |
10–35 mm |
| Stud Pitch |
12–35 mm |
| Stud Arrangement |
Inline or Staggered |
| Welding Method |
Automated Resistance or Arc Stud Welding |
| Surface Finish |
Black, Shot Blasted, Pickled or Customized |
Chemical Composition (ASME SA335 Grade P9)
| Element |
Content (%) |
| Carbon (C) |
≤0.15 |
| Manganese (Mn) |
0.30–0.60 |
| Phosphorus (P) |
≤0.025 |
| Sulfur (S) |
≤0.025 |
| Silicon (Si) |
0.25–1.00 |
| Chromium (Cr) |
8.00–10.00 |
| Molybdenum (Mo) |
0.90–1.10 |
Mechanical Properties
| Property |
Minimum Requirement |
| Tensile Strength |
≥585 MPa |
| Yield Strength |
≥415 MPa |
| Elongation |
≥20% |
| Hardness |
In accordance with ASME SA335 requirements after heat treatment |
| Recommended Service Temperature |
Up to approximately 650°C (application dependent) |
Inspection & Testing
Each ASME SA335 P9 studded fin tube undergoes a comprehensive quality assurance program to ensure reliable performance in critical heat transfer applications.
Raw Material Inspection
- Positive Material Identification (PMI)
- Optical Emission Spectroscopy (OES)
- Chemical composition verification
- Material traceability
Dimensional Inspection
- Tube outside diameter and wall thickness
- Tube length verification

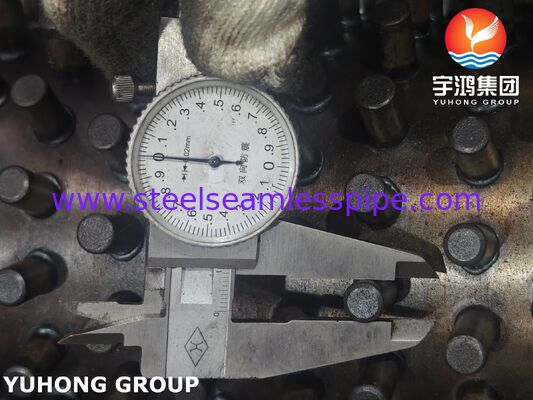

- Stud diameter measurement

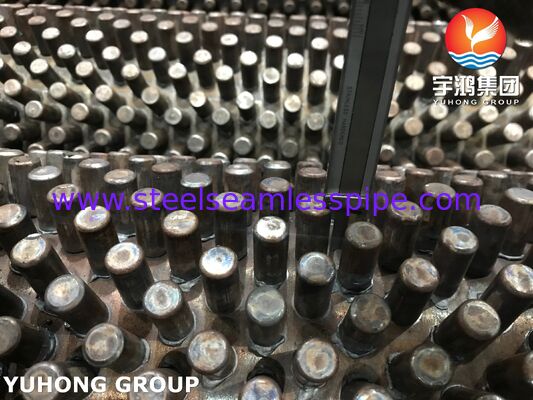

- Stud height inspection

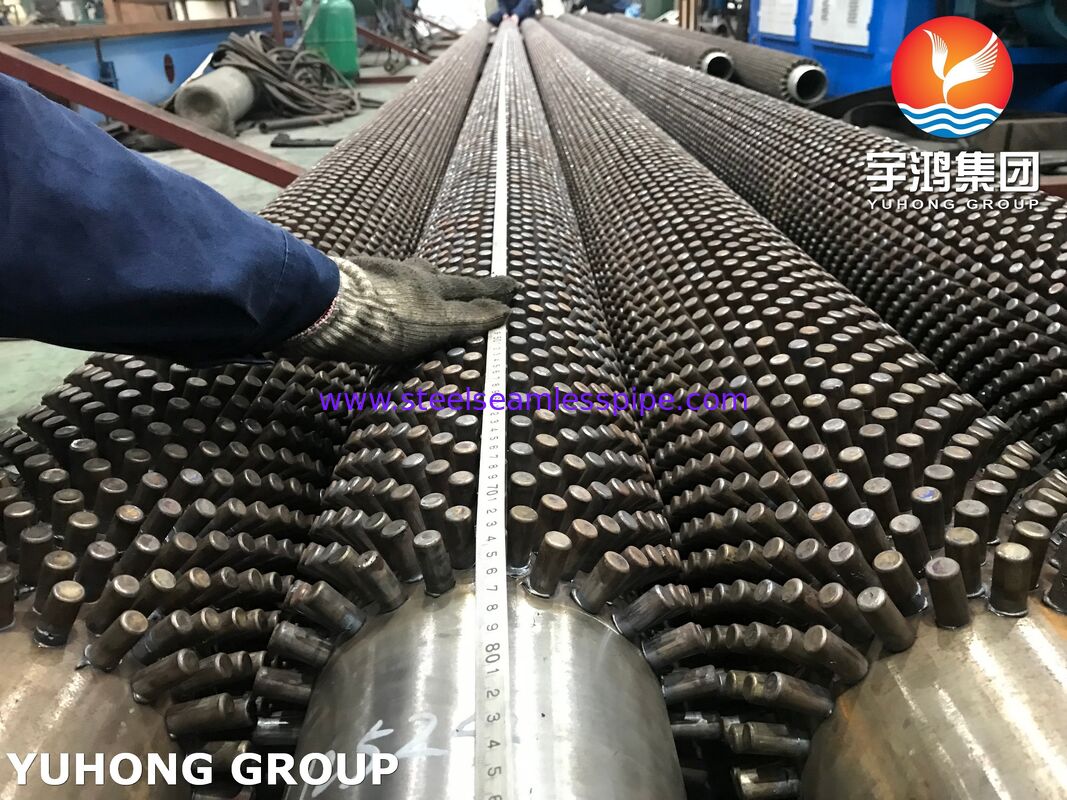

- Stud spacing verification
- Straightness inspection
- Surface finish examination
Mechanical Testing
- Tensile testing
- Hardness testing
- Flattening test (where applicable)
- Bend test (if required)
Non-Destructive Testing (NDT)
- Ultrasonic Testing (UT)
- Eddy Current Testing (ECT)
- Magnetic Particle Testing (MT) of stud welds
- Liquid Penetrant Testing (PT) for surface defects
- Visual inspection of all stud welds
Weld Quality Inspection
- Weld penetration verification
- Weld profile examination
- Random stud pull-off tests (on request)
- Weld continuity assessment
Final Quality Control
- Dimensional verification
- Marking inspection
- Packaging inspection
- Documentation review
Third-party inspections by SGS, TÜV, Bureau Veritas (BV), DNV, Lloyd's Register (LR), and other customer-designated inspection agencies are available upon request.
Manufacturing Process
- Certified ASME SA335 P9 seamless tube selection
- Tube cleaning and surface preparation
- CNC-controlled stud positioning
- Automated resistance or arc stud welding
- Heat treatment when required by specification
- Weld cleaning and finishing
- Non-destructive examination
- Dimensional inspection
- Final quality approval

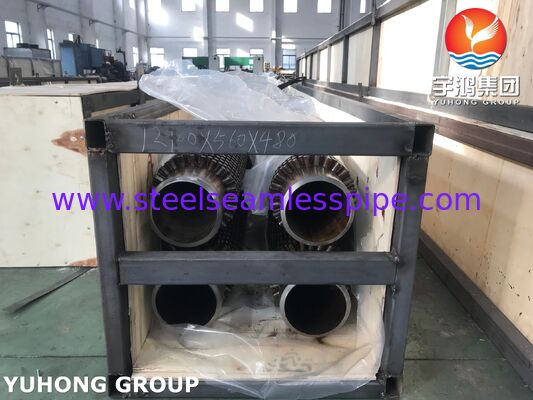

- Protective export packaging
Advantages
- Increased external heat transfer surface area
- Excellent performance in fouling and dust-laden gas streams
- Superior resistance to oxidation and scaling
- Outstanding creep strength at elevated temperatures
- Reliable stud weld integrity under cyclic loading
- Lower maintenance requirements than conventional finned tubes in dirty-service applications
- High structural stability during prolonged operation
- Flexible customization of stud geometry to match thermal design requirements
- Cost-effective lifecycle performance for industrial heat recovery systems
Quality Assurance
Our ASME SA335 P9 studded fin tubes are manufactured using advanced automated production equipment and strict quality management procedures. Every production batch is fully traceable from raw material procurement to final inspection and is supplied with comprehensive documentation, including material certificates, inspection reports, and non-destructive testing records upon request.
