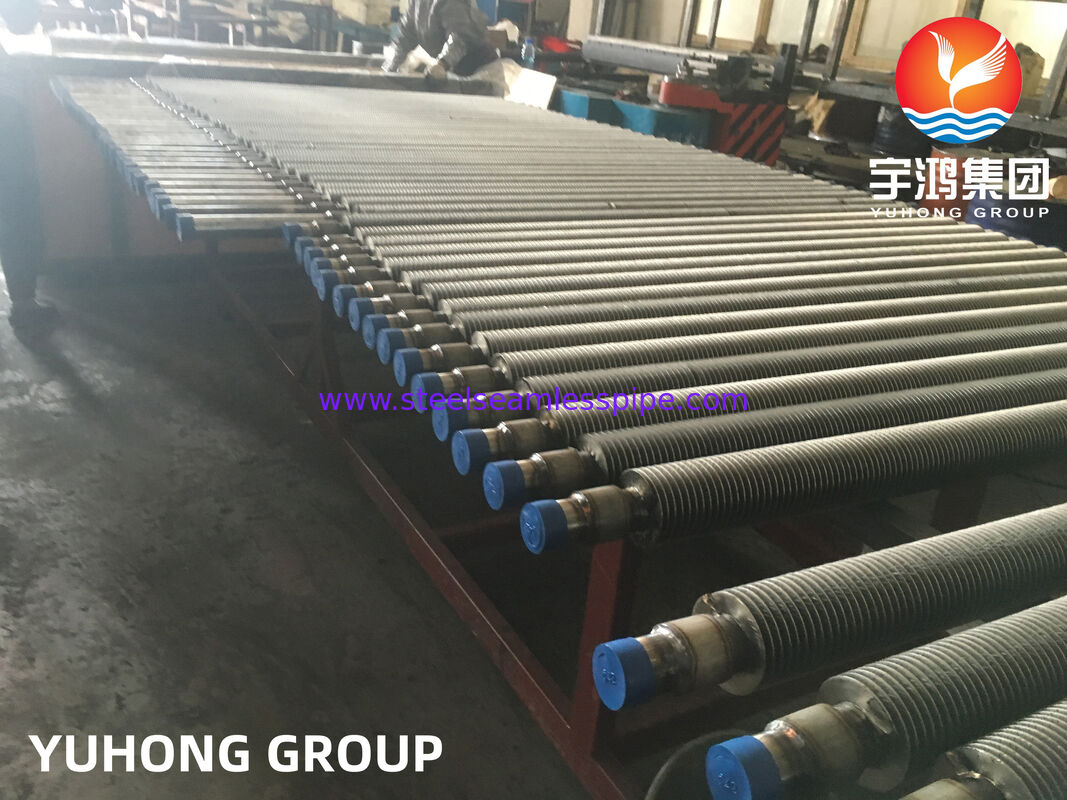

High-Frequency Welded Finned Tubes for High-Pressure Economizers (ASME SA213 T12)
Product Overview
Our High-Frequency Welded Finned Tubes for High-Pressure Economizers are manufactured using premium ASME SA213 T12 chromium-molybdenum alloy steel seamless tubes and advanced high-frequency resistance welding technology. Designed for high-pressure boiler systems, these finned tubes maximize heat recovery from flue gases while maintaining exceptional mechanical strength and long-term reliability under elevated temperatures and pressures.
The high-frequency welding process creates a continuous metallurgical bond between the fin and the base tube, significantly reducing thermal contact resistance compared with mechanically attached fins. The result is improved heat transfer efficiency, enhanced structural integrity, and excellent resistance to thermal cycling, making these finned tubes the preferred choice for modern power plants, industrial boilers, waste heat recovery systems, and petrochemical facilities.
Product Features
- High thermal efficiency for maximum heat recovery
- Continuous high-frequency welded fin-to-tube bond
- Excellent resistance to thermal fatigue
- Outstanding creep strength at elevated temperatures
- Superior oxidation and corrosion resistance
- Low thermal contact resistance
- Uniform fin geometry for consistent heat transfer
- High resistance to vibration and fin loosening
- Long operational service life
- Suitable for high-pressure boiler economizers
- Fully customizable dimensions and fin configurations
- Manufactured under strict quality control procedures
Typical Applications
High-frequency welded finned tubes manufactured from ASME SA213 T12 are widely used in:
- High-pressure economizers
- Utility power plants
- Combined Cycle Power Plants (CCPP)
- Heat Recovery Steam Generators (HRSG)
- Waste Heat Recovery Boilers (WHRB)
- Petrochemical plants
- Oil refineries
- Fertilizer plants
- Industrial steam boilers
- Biomass power stations
- Cement plants
- Steel manufacturing facilities
Manufacturing Process
The fin strip is continuously welded onto the outer surface of the seamless tube using high-frequency electrical resistance welding. During welding, localized heat and forging pressure produce a full metallurgical bond without filler metal.
This manufacturing method offers:
- Excellent heat conductivity
- High weld integrity
- Minimal heat-affected zone
- Strong fin attachment
- Uniform fin spacing
- Excellent dimensional accuracy
Material Specification
| Item |
Specification |
| Tube Material |
ASME SA213 T12 |
| Material Type |
Seamless Ferritic Alloy Steel |
| Tube Standard |
ASME SA213 / ASTM A213 |
| Fin Material |
Carbon Steel, Alloy Steel or Stainless Steel |
| Fin Type |
High-Frequency Welded Solid Fin |
| Manufacturing Method |
High-Frequency Resistance Welding (HFW) |
Standard Dimensions
| Parameter |
Standard Range |
| Tube Outside Diameter |
19.05–63.5 mm (3/4"–2-1/2") |
| Tube Wall Thickness |
2.0–8.0 mm |
| Tube Length |
Up to 24,000 mm |
| Fin Height |
8–25 mm |
| Fin Thickness |
0.8–2.0 mm |
| Fin Pitch |
3–12 fins/inch (FPI) |
| Bare Tube Ends |
According to customer drawings |
| Dimensional Tolerance |
As per applicable standards |
Custom sizes and fin profiles are available to meet specific heat exchanger and economizer design requirements.
Chemical Composition of ASME SA213 T12
| Element |
Content (%) |
| Carbon (C) |
0.05–0.15 |
| Manganese (Mn) |
0.30–0.61 |
| Silicon (Si) |
≤0.50 |
| Phosphorus (P) |
≤0.025 |
| Sulfur (S) |
≤0.025 |
| Chromium (Cr) |
0.80–1.25 |
| Molybdenum (Mo) |
0.44–0.65 |
The chemical composition provides an optimal balance of strength, oxidation resistance, and high-temperature performance, making SA213 T12 suitable for demanding boiler service.
Mechanical Properties
| Property |
Minimum Requirement |
| Tensile Strength |
≥415 MPa |
| Yield Strength |
≥220 MPa |
| Elongation |
≥30% |
| Hardness |
As per ASME SA213 |
| Service Temperature |
Up to approximately 550°C (depending on operating conditions) |
These mechanical properties ensure dependable performance under sustained high-pressure and high-temperature conditions.
Inspection and Testing
Each finned tube undergoes stringent quality inspections throughout production to ensure compliance with ASME and customer specifications.
Raw Material Inspection
- Material certificate verification (EN 10204 3.1 available upon request)
- Positive Material Identification (PMI)
- Chemical composition analysis
- Mechanical property verification

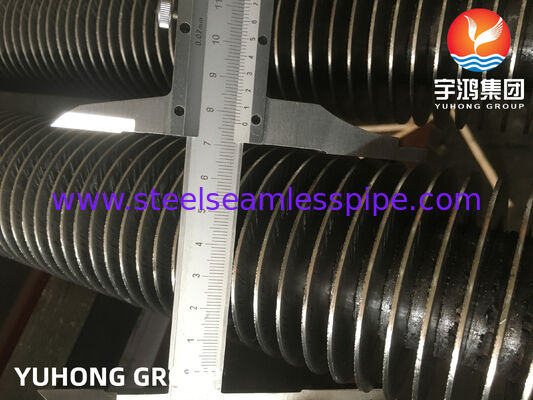

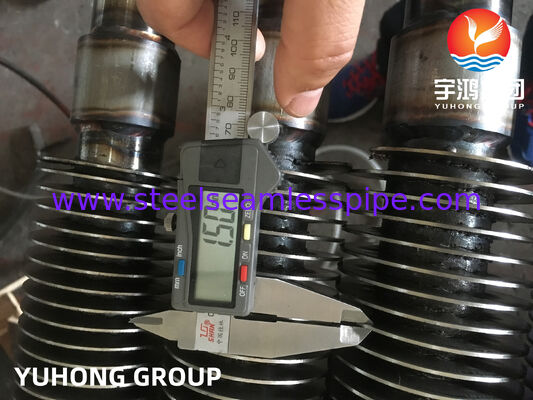

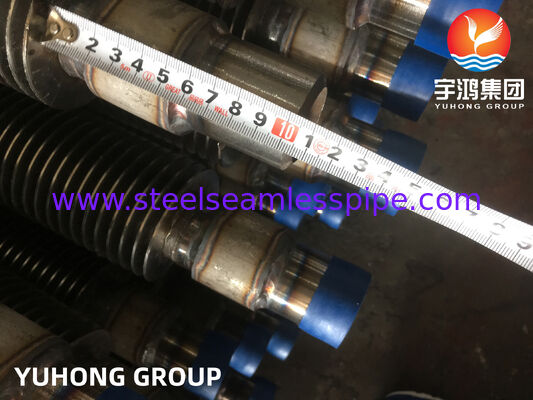

Dimensional Inspection
- Tube outside diameter
- Wall thickness
- Tube length
- Fin height
- Fin thickness
- Fin pitch
- Fin spacing
- Straightness
- Bare end dimensions
Weld Quality Inspection
- Visual weld examination
- Continuous weld integrity inspection
- Fin bonding verification
- Weld profile inspection
Non-Destructive Testing (Optional)
- Ultrasonic Testing (UT)
- Eddy Current Testing (ECT)
- Magnetic Particle Testing (MT)
- Liquid Penetrant Testing (PT)
Pressure Testing
- Hydrostatic pressure test
- Pneumatic leak test (optional)
Mechanical Performance Testing
- Tensile testing
- Flattening test
- Flaring test
- Fin pull-off strength test
- Fin bond integrity test
Manufacturing Standards
Production can comply with:
- ASME SA213
- ASTM A213
- ASME Boiler and Pressure Vessel Code
- TEMA Standards
- Customer engineering specifications
Surface Treatment
Available surface finishes include:
- Anti-rust oil coating
- Black painted tube ends
- Shot blasting
- Varnish protection
- Export protective wrapping
- Custom coatings upon request
Advantages for High-Pressure Economizers
Compared with plain tubes, high-frequency welded finned tubes provide:
- Increased external heat transfer surface area
- Higher boiler thermal efficiency
- Improved flue gas heat recovery
- Reduced fuel consumption
- Lower exhaust gas temperature
- Compact economizer design
- Lower operating costs
- Enhanced reliability under high-pressure service
- Longer maintenance intervals
- Reduced lifecycle costs
Packaging
Products are carefully packed to prevent damage during transportation.
Packaging options include:
- Steel frame bundles
- Wooden crates
- Export seaworthy packaging
- Plastic end caps
- Waterproof wrapping
- Customized packaging based on project requirements
Why Choose Our ASME SA213 T12 High-Frequency Welded Finned Tubes?
We manufacture high-frequency welded finned tubes using precision automated welding equipment and rigorous quality management systems to ensure consistent performance in high-pressure economizer applications. Every tube is produced with accurate fin geometry, continuous metallurgical bonding, and strict dimensional control, resulting in excellent heat transfer efficiency and dependable operation. With comprehensive inspection, flexible customization, and reliable worldwide supply, our finned tubes help power plants, boiler manufacturers, and EPC contractors improve energy efficiency, reduce emissions, and extend equipment service life in demanding industrial environments.
