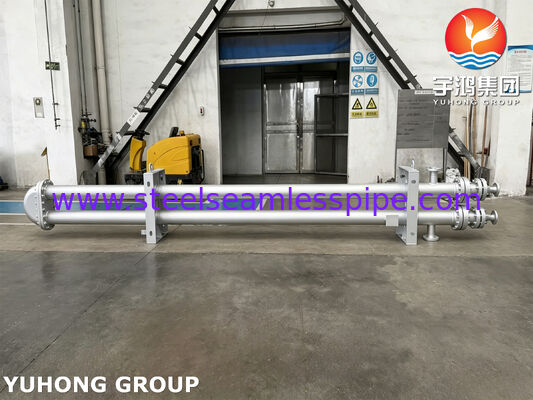

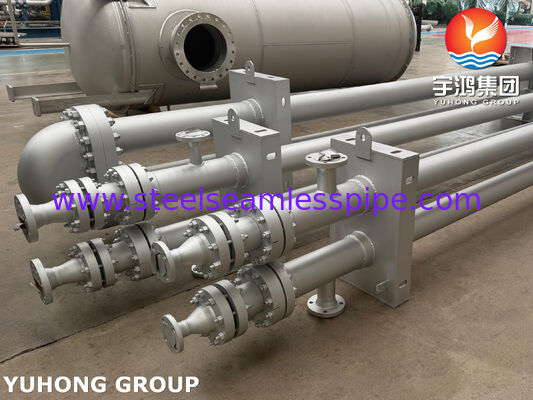

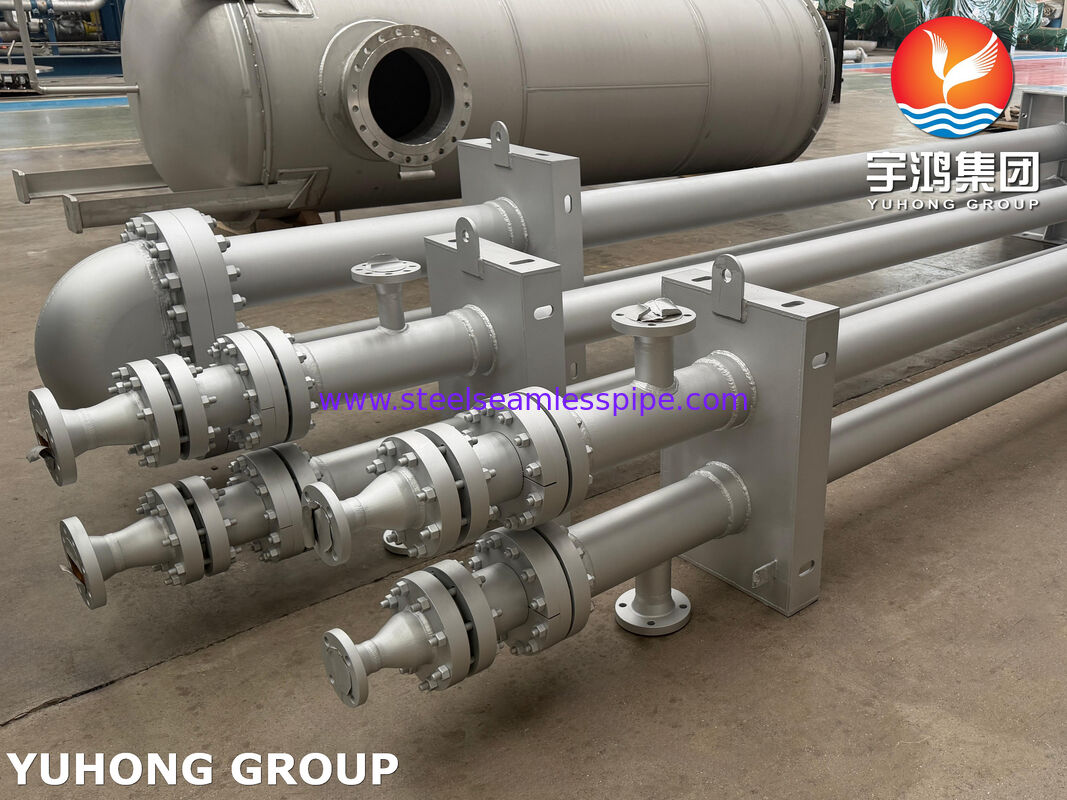

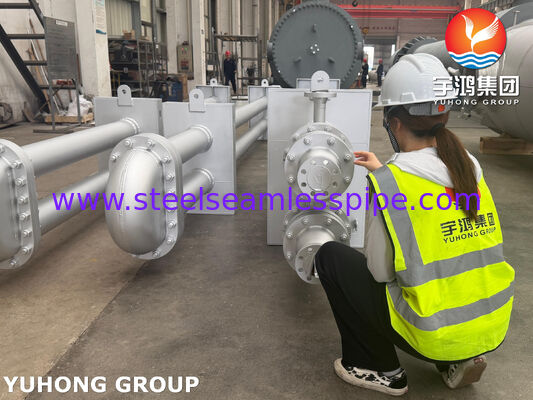

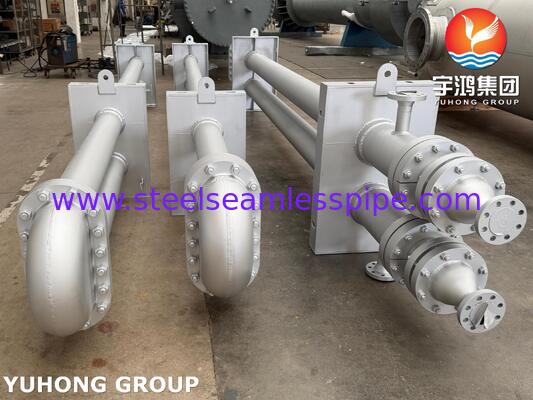

Hairpin Heat Exchanger & Custom Heat Exchanger Tube Bundle Solutions

Yuhong Group Co., Ltd. is a leading global supplier of high-pressure heat transfer equipment, premium tubular products, and severe-service pressure components. Operating through our primary domain www.steelseamlesspipe.com, we engineer and fabricate custom Hairpin Heat Exchangers (both Double-Pipe and Multi-Tube designs) in strict compliance with ASME Section VIII Div. 1, API 660, and TEMA heat exchanger standards.
By leveraging our direct mill manufacturing capabilities for high-performance Stainless Steel Seamless Tube, Nickel Alloy Tube, Copper alloy tube, and extended-surface Fin Tube, Yuhong Group delivers fully integrated thermal solutions. Whether you need a complete modular hairpin exchanger skid or standalone replacement parts—such as a forged heat exchanger tubesheet or a precision-assembled heat exchanger tube bundle—we provide certified reliability for global energy projects.

Our hairpin exchangers utilize true counter-current flow paths to handle high thermal efficiency requirements, high operating pressures, and extreme temperature differentials ($\Delta T$):

• Double-Pipe Hairpin Heat Exchangers: Features a single pipe or tube inside an outer shell pipe. Ideal for high-fouling fluids, low flow rates, or extreme pressure differentials where easy mechanical cleaning is required.
• Multi-Tube Hairpin Heat Exchangers: Houses a multi-pass heat exchanger tube bundle inside an outer shell envelope. Provides significantly higher heat transfer surface area in a compact footprint, making it a cost-effective alternative to standard shell and tube heat exchangers.
• Finned Tube Hairpin Units: Incorporates longitudinally bare or serrated Fin Tube elements inside the inner shell to enhance gas-side thermal conductivity and minimize overall exchanger length.

We support original equipment manufacturers (OEMs) and turnaround contractors by supplying individual replacement hardware for hairpin exchangers and broad pressure vessel lines:

1. True Counter-Current Thermal Efficiency: Achieves a complete temperature cross where the outlet temperature of the cold fluid exceeds the outlet temperature of the hot fluid.
2. Thermal Expansion Accommodation: The free-floating U-bend design naturally absorbs thermal expansion and contraction without requiring expansion joints.
3. Removable & Cleanable Tube Bundles: Straight-through tube layouts and removable shell closures enable easy mechanical cleaning and inspection of both tube and shell sides.
4. Extreme Pressure Capability: Small-diameter shell construction allows for heavy-wall flanged connections capable of handling pressures exceeding 300 bar (4,350 psi).

When designing high-duty heat transfer loops for oil refineries and chemical plants, process engineers frequently select hairpin exchangers based on these engineering considerations:

• Handling Temperature Crosses: In a standard multi-pass Tema heat exchanger, a temperature cross creates thermal inefficiency and requires complex shell arrangements. A hairpin exchanger’s true counter-current flow handles temperature crosses effortlessly in a single unit.
• Low Thermal Footprint & Modular Expansion: Hairpin units feature a modular design. If process capacities increase, additional hairpin sections can be stacked vertically or connected in series/parallel with minimal piping modification.
• Reduced Spare Part Inventory: Utilizing standardized Stainless Steel Seamless Tube and Nickel Alloy Tube diameters across multiple hairpin sections lowers inventory costs for replacement heat exchanger tube bundle assemblies.

Looking for a custom hairpin heat exchanger, high-efficiency Fin Tube bundles, or replacement heat exchanger tubesheet forgings? Contact the Yuhong Group engineering team today:
