ASTM B725 Monel 400 Nickel Alloy Welded Pipe with Corrosion Resistance and Customized Dimensions

ASTM B725 UNS N04400 welded pipe is a nickel-copper alloy pipe manufactured from Monel 400 / UNS N04400 for industrial piping systems requiring excellent corrosion resistance and mechanical performance in demanding service environments.

Monel 400 is a nickel-copper alloy with superior resistance to many corrosive media, particularly seawater, marine environments, and various chemical solutions. The alloy maintains useful mechanical properties across a broad temperature range.

The welded pipe construction provides a practical solution for larger-diameter piping where seamless pipe may not be the preferred manufacturing route. Pipe dimensions, wall thickness, length, surface condition, and end preparation can be supplied according to project specifications.

UNS N04400, commonly known as Monel 400, is a nickel-copper alloy containing a high proportion of nickel and copper. Its alloy composition provides an optimal combination of corrosion resistance, toughness, and mechanical strength.

The material is particularly suitable for applications involving:

• Seawater and marine environments
• Salt-containing media
• Chemical processing solutions
• Caustic environments
• Non-oxidizing chemical media
• Process piping exposed to corrosive fluids

For projects with specific media, temperature, or pressure requirements, material selection should be evaluated against the actual operating conditions.

The welded pipe is manufactured through a controlled forming and welding process followed by required finishing and inspection operations. A typical manufacturing route includes:

1. Nickel-copper alloy strip or plate preparation
2. Forming into tubular geometry
3. Longitudinal welding
4. Weld seam treatment and surface conditioning
5. Heat treatment where specified
6. Dimensional inspection
7. Nondestructive testing according to specification
8. Final marking and traceability
9. Packing for shipment

The welding method and subsequent treatment can be adjusted according to pipe dimensions, wall thickness, and project requirements.

• Marine and Seawater Systems: Monel 400 welded pipe can be considered for seawater-related piping, marine equipment, and other systems exposed to chloride-containing environments.
• Chemical Processing: The alloy is used in selected chemical process piping where resistance to specific corrosive solutions is required.
• Oil & Gas Process Systems: UNS N04400 can be used for selected process piping and equipment components where nickel-copper alloy construction is required by the service conditions.
• Industrial Heat Transfer Systems: The material can be used in piping associated with heat-transfer and fluid-handling equipment when the process medium is compatible with Monel 400.
• Pump and Valve Systems: Monel 400 is also used for components and piping connected with pumps, valves, and other fluid-handling equipment in corrosive environments.

• Nickel-Copper Alloy Construction: The high nickel-copper alloy composition provides corrosion resistance suitable for various marine and chemical service conditions.
• Welded Pipe Configuration: Welded construction offers flexibility for larger diameters and customized pipe dimensions.
• ASTM B725 Specification: Manufacturing and testing can be controlled according to ASTM B725 requirements and additional project specifications.
• Customized Dimensions: Outside diameter, wall thickness, pipe length, end preparation, and inspection requirements can be customized according to drawings or purchase specifications.
• Material Traceability: Material certificates and inspection documentation can be supplied to support heat number and material traceability requirements.

Depending on the purchase specification, inspection can include:

• Chemical composition verification
• Mechanical property testing
• Visual inspection

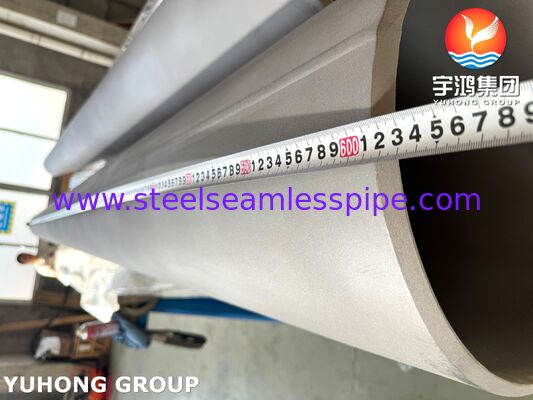

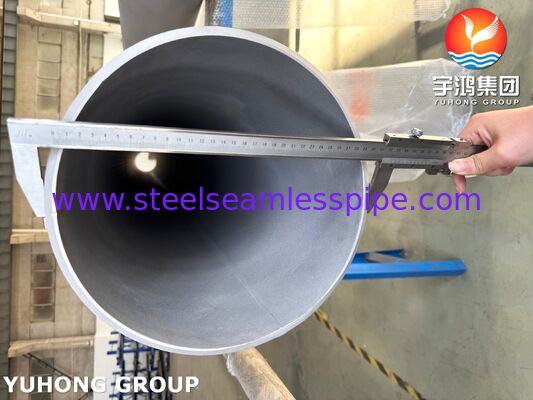

• Dimensional inspection
• PMI — Positive Material Identification
• Weld seam inspection
• Nondestructive testing
• Hydrostatic or other specified testing
• Surface condition inspection
• Material traceability verification

Inspection requirements can be agreed before production according to ASTM B725 and project-specific requirements.

The pipe can be supplied with different end preparations according to the connection method:

• Plain End
• Beveled End
• Square Cut End
• Customized End Preparation

Beveled ends can be prepared for butt-welding installation where required.

Note: Monel® is a trademark associated with Special Metals Corporation. "UNS N04400" is the technical material designation.

ASTM B725 N04400 welded pipes are typically supplied with:

• Protective end caps where required
• Plastic or moisture-resistant wrapping
• Bundling according to pipe size
• Steel straps for reinforcement
• Seaworthy wooden cases or frames for smaller or specially protected items

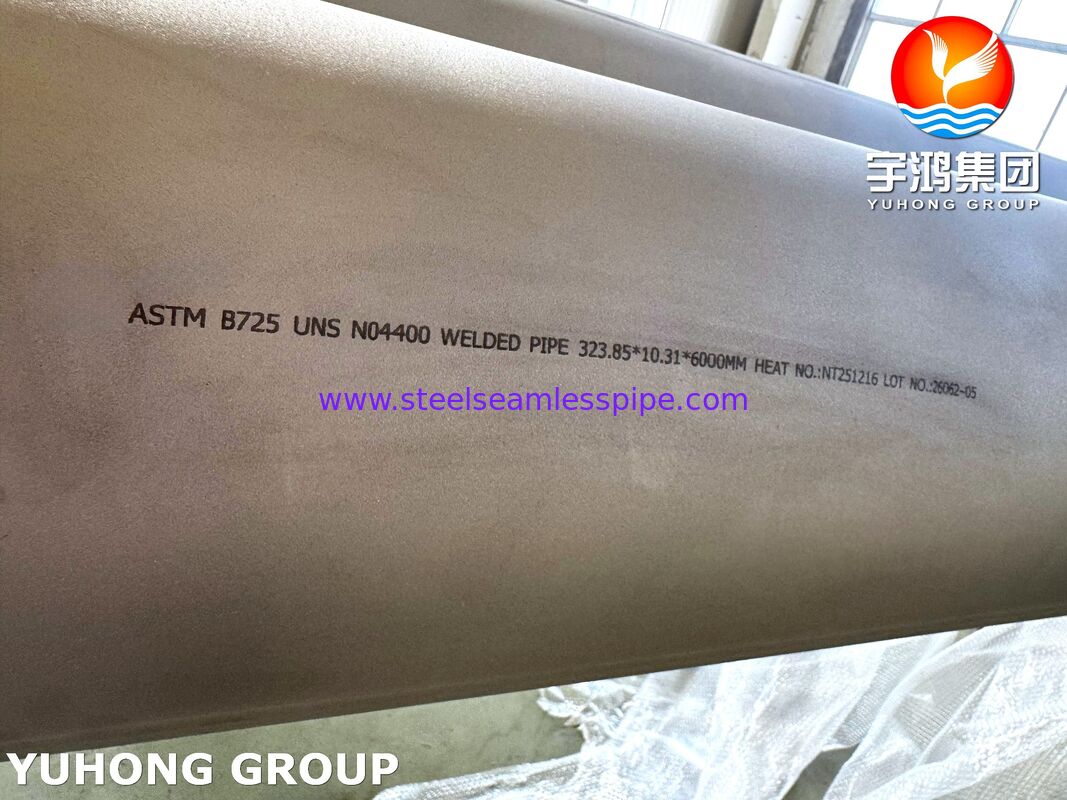

• Marking with size, grade, heat number, and order information

Packaging can be customized according to transportation method and destination requirements.

What is ASTM B725 N04400 pipe?
ASTM B725 specifies welded pipe made from nickel-copper alloy UNS N04400 and related material requirements. N04400 is commonly known as Monel 400.

Is UNS N04400 the same as Monel 400?
Yes. UNS N04400 is the standardized material designation commonly associated with Monel 400.

Is ASTM B725 pipe seamless or welded?
ASTM B725 covers welded pipe, making it different from standards specifically covering seamless nickel alloy pipe.

What is Monel 400 used for?
Typical applications include marine systems, seawater service, chemical processing, corrosive fluid handling, and selected industrial piping systems.

Can the N04400 welded pipe be customized?
Yes. Diameter, wall thickness, length, end preparation, surface condition, and inspection requirements can be specified according to the project requirements.
