ASTM A240 SS321 Stainless Steel Elliptical Head for Pressure Vessels and Storage Tanks

Product Overview

ASTM A240 Type 321 stainless steel elliptical heads are formed pressure vessel components used to close the ends of vessels, tanks and process equipment. The elliptical profile provides a smooth transition between the head and the cylindrical shell and is commonly used in pressure vessel construction.

Type 321 is a titanium-stabilized austenitic stainless steel. The addition of titanium helps reduce the risk of chromium carbide precipitation during certain welding and thermal exposure conditions. This material is considered for equipment operating under elevated-temperature conditions, subject to the process medium and design requirements.

YUHONG supplies SS321 stainless steel elliptical heads according to specified material requirements, dimensions, wall thicknesses and approved project drawings.

Product Specifications

The material standard applies to the stainless steel plate. Final head dimensions, thickness after forming, tolerances and acceptance criteria should be confirmed against the approved drawing and applicable design code.

Material Characteristics of SS321

Titanium-Stabilized Austenitic Stainless Steel

Type 321 is an austenitic stainless steel stabilized with titanium. This stabilization helps limit chromium carbide precipitation under certain thermal exposure conditions.

Elevated-Temperature Applications

SS321 is used in selected equipment exposed to elevated temperatures. Its suitability depends on operating temperature, process fluid, pressure, stress conditions and the applicable design requirements.

Welding Considerations

The stabilized composition is useful for certain welded equipment applications. Welding procedures and post-forming or post-weld heat treatment requirements should follow the approved fabrication specification.

Elliptical Head Design and Geometry

Elliptical heads are used in pressure vessels and storage equipment where an elliptical end profile is required by the design.

Important design and manufacturing parameters include:

• Head outside or inside diameter

• Nominal plate thickness and required minimum thickness after forming

• Elliptical profile and depth

• Crown and knuckle geometry

• Straight flange length, if required

• Dimensional tolerances

• Forming and heat treatment requirements

• Applicable pressure vessel design code

A 2:1 ellipsoidal profile is a common design configuration. The actual head geometry must be confirmed by the equipment drawing rather than assumed from the general term "elliptical head".

Typical Applications

• Stainless steel pressure vessels

• Chemical processing equipment

• Petrochemical process vessels

• Industrial storage tanks

• Heat transfer and process equipment

• Selected elevated-temperature vessels

Material selection should be evaluated against the process medium, design pressure, operating temperature and applicable corrosion conditions.

Customization and Drawing Requirements

Elliptical heads can be supplied according to project-specific dimensions and fabrication requirements, subject to confirmed supply capability.

Please provide the following information for quotation:

• Material grade and plate standard

• Head diameter and nominal thickness

• Inside or outside diameter reference

• Elliptical profile or design ratio

• Required head depth and straight flange length

• Design code and design conditions

• Heat treatment requirements

• Surface finish and inspection requirements

• Quantity and delivery destination

Quality Inspection and Documentation

Inspection and documentation should follow the applicable material standard, approved drawings and purchase specification.

Typical quality checks may include:

• Material identification and heat-number traceability

• Review of material test certificates

• Chemical composition and mechanical test results

• Dimensional inspection of head geometry

• Thickness measurement, including checks after forming

• Visual inspection of formed surfaces

• Additional testing or third-party inspection where specified

The inspection scope and acceptance criteria should be agreed before order placement.

Packaging and Shipping

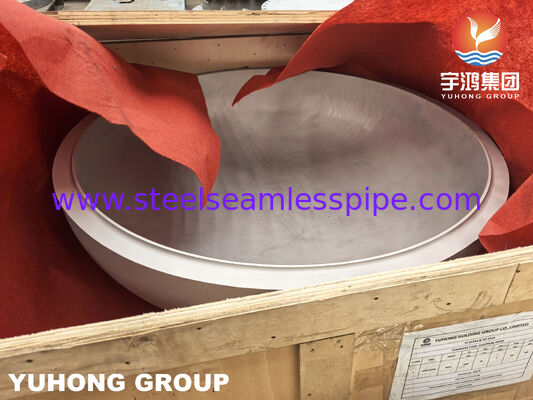

Elliptical heads should be securely supported during storage and transportation to prevent deformation and surface damage.

Typical export packaging includes wooden cases, wooden pallets or suitable steel supports, with protective wrapping where required. Contact surfaces and machined edges should be protected against scratches and impact. Packaging arrangements can be adapted to the head diameter, weight and shipping conditions.

Frequently Asked Questions

What is an elliptical head?

An elliptical head is a formed vessel end with an elliptical profile. It is used to close pressure vessels and tanks according to the equipment design.

What is the material standard for SS321 elliptical heads?

ASTM A240 / ASME SA240 specifies the stainless steel plate material. The finished head must also meet the applicable forming, dimensional, inspection and pressure vessel design requirements.

Is SS321 suitable for high-temperature service?

SS321 is a titanium-stabilized austenitic stainless steel used in selected elevated-temperature applications. Suitability must be assessed against the actual operating conditions and design specification.

Can elliptical heads be supplied to custom dimensions?

Dimensions and fabrication requirements can be reviewed against customer drawings and confirmed supply capability. Please provide the head diameter, thickness, profile and required inspection scope.

Request a Quotation

Send YUHONG your material specification, head drawing, dimensions, quantity and inspection requirements for technical review and quotation.
