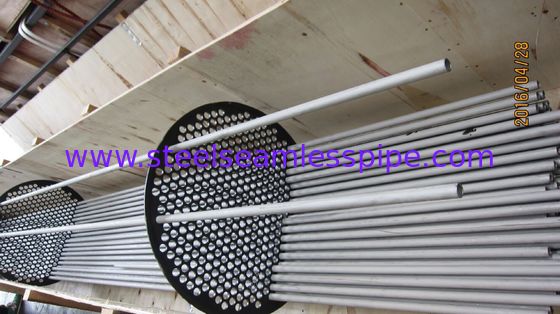

Heat Exchanger Seamless Tube , A213 TP304L , 3/4" 14 BWG 20FT , 100% ET / HT/ UT

Heat Exchanger Seamless Tube , A213 TP304L , 3/4" 14 BWG 20FT , 100% ET / HT/ UT

Heat Exchanger Seamless Tube , A213 TP304L , 3/4" 14 BWG 20FT , 100% ET / HT/ UT
video
Heat Exchanger Seamless Tube , A213 TP304L , 3/4" 14 BWG 20FT , 100% ET / HT/ UT
Product Details:
Place of Origin: China, USA, Korea, UE
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10days->
Payment Terms: T/T, L/C
Supply Ability: 1500 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (224)
Stainless Steel Seamless Tube (178)
Stainless Steel Welded Pipes (41)
Stainless Steel Welded Tube (77)
Finned Tube (204)
Heat Exchanger Tube (131)
Duplex Stainless Steel Pipes (111)
Alloy Steel Seamless Tubes (62)
Bright Annealed Tube (146)
Copper Alloy Tube (131)
Nickel Alloy Pipe (264)
Carbon Steel Pipe (50)
U Bend Tube (140)
Boiler Tube (72)
Steel Pipe Fittings (530)
Steel Flanges (374)
Steel Valves (12)
Precision Steel Strip (23)
Alloy Wires (271)
Heat Exchanger Parts (44)
Detailed Product Description
Specification: ASTM A213/A213M-2013 , ASME SA213/SA213M-2013 , A789 , SA789 Material: TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Type: Straight Tube , U Bend Tube, Coil Tube Surface: Bright Annealed, Pickled And Annealed , Polished
Packing: PLY-WOODEN CASE
High Light:

heat recovery pipe

,

seamless stainless steel tube

Heat Exchanger Seamless Tube , A213 TP304L , 3/4" 14 BWG 20FT , 100% ET / HT/ UT



Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-

Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.





ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater

Heat-Exchanger, and Condenser Tubes.



ASTM A789/A789M, ASME SA789/SA789M Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service



Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...



Material Grade:

American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ





Size Range:

Production Outside Diameter Wall Thickness
Heat Exchanger Tube 6.00mm to 101.6mm 0.5mm to 8mm



Final Finishing

Solution Annealed & Pickled/Bright Annealed.





Type of Tubes:

U-bend & Straight.



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •





Heat Exchanger Seamless Tube , A213 TP304L , 3/4" 14 BWG 20FT , 100% ET / HT/ UT 0
