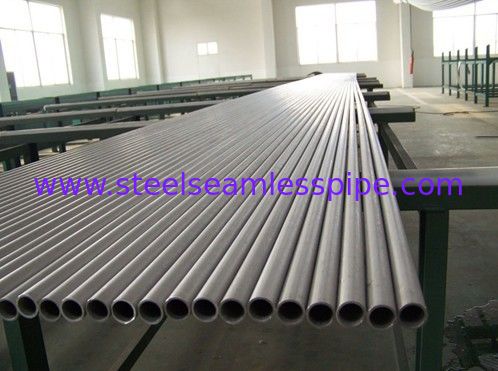

Stainless Steel Seamless Tube ASTM A213 TP321 / TP321H Heat Exchanger Tube 3/4" 16BWG 20FT EDDY CURRENT TEST

Stainless Steel Seamless Tube ASTM A213 TP321 / TP321H Heat Exchanger Tube 3/4" 16BWG 20FT EDDY CURRENT TEST

Stainless Steel Seamless Tube ASTM A213 TP321 / TP321H Heat Exchanger Tube 3/4" 16BWG  20FT EDDY CURRENT TEST
video
Stainless Steel Seamless Tube ASTM A213 TP321 / TP321H Heat Exchanger Tube 3/4" 16BWG  20FT EDDY CURRENT TEST
Product Details:
Place of Origin: China, USA, Korea, UE
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A213 TP321 / TP321H
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10days->
Payment Terms: T/T, L/C
Supply Ability: 1500 tons per month
Contact Now
Detailed Product Description
Material: TP321 / TP321H Standard: ASTM A213, ASME SA213
NDT: Eddy Current Test, Hydrostatic Test, UT, IGC, Grain Size Test , ... Type: Mill Finished, Polished, Bright Annealed
High Light:

heat exchanger pipe

,

seamless stainless steel tube

Stainless Steel Seamless Tube, ASTM A213 TP321 / TP321H, Heat Exchanger Tube 3/4" 16BWG 20FT , EDDY CURRENT TEST



YUHONG SPECIAL STEEL deal with  Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless  and welded  pipe and tube already more than 25 years, every year sell more than 80000 tons of steel  pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.





Material Grade:



American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,  TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Nickel Alloy:

UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

GOST

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ







Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter   BWG
25 22 20 18 16 14 12 10
  Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch   Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212
9.53  3/8 0.126 0.157 0.193 0.257 0.356 0.429
12.7  1/2   0.214 0.263 0.356 0.457 0.612 0.754
15.88  5/8   0.271 0.334 0.455 0.588 0.796 0.995
19.05  3/4   0.327 0.405 0.553 0.729 0.895 1.236
25.4 1      0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4   0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2   0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4       1.342 1.774 2.244 2.894 3.5
50.8 2          1.549 2.034 2.574 3.334 4.03
63.5 2 1/2       1.949 2.554 3.244 4.214 5.13
76.2 3          2.345 3.084 3.914 5.094 6.19
88.9 3 1/2       2.729 3.609 4.584 5.974 7.27
101.6 4            4.134 5.254 6.854 8.35
114.3 4 1/2         4.654 5.924 7.734 9.43
Form of Tube: Straight & U-bend & Finned & Coiled
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

Stainless Steel Seamless Tube ASTM A213 TP321 / TP321H Heat Exchanger Tube 3/4" 16BWG  20FT EDDY CURRENT TEST 0
