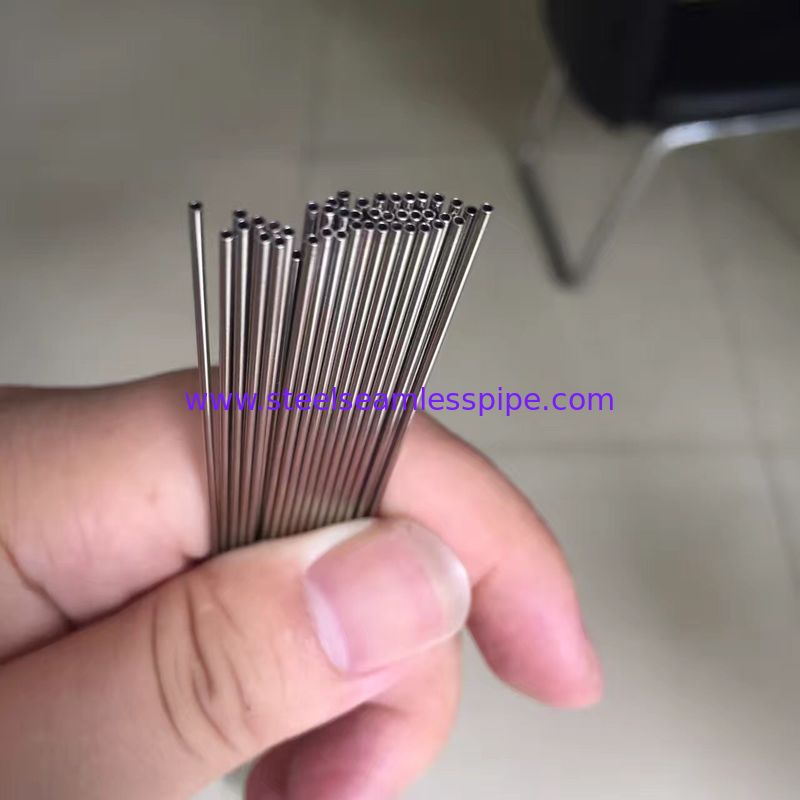

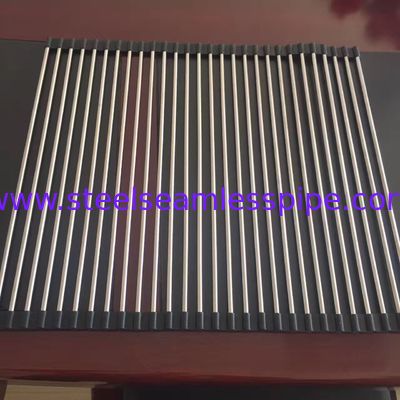

Seamless / welded type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5

Seamless / welded type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5

    • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5
    • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5
    • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5
    • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5
    • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5
    • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5
  • Seamless / welded  type Stainless Steel Capillary Tube TP316L , TP304L , ASTM A213, ASTM A-269, DIN 17458,EN 10216-5

    Product Details:

    Place of Origin: China, USA, Korea, UE
    Brand Name: YUHONG SPECIAL STEEL
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: ASTM A269

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KGS
    Price: YUHONG HOLDING GROUP CO.,LTD
    Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Material Grade: TP316L , TP304L , OTHERS Standard: A269 , EN10216-5,DIN 2462-1,ISO 1127
    Form: Straight / Coil

    Stainless Steel Capillary Tube 304, 316, 316L, 321, ASTM A213, ASTM A-269, DIN 17458 CLASS 1, DIN 2462-1, EN 10216-5,ISO 1127 Tolerance: Permissible variations in OD +/- .005 (.13mm), wall thickness +/-15%



    The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having inner surface free from oil, grease and dust particles. These tubes are available in different sizes, tolerances and thickness as per the requirements of our clients.

    Features
    • Tight tolerances
    • Free from oil & dust particles from inside
    • Rust resistant

    Applications
    • Gas and liquid lines
    • Medical instruments (hypodermic needle)
    • Chromatography
    • Measurement in remote thermometer systems (with or without compensation)


    Available Grades : 304, 304L, 316, 316L

    Available Types : Seamless & Welded

    Available Size : OD :Min. 0.5mm to 6mm

                                WT:0.02 to 2mm

                  Length Max.: 1000m /pc


    ** All Round Tubes are Quoted OD x Wall.
    ID Listed in Center Area
    Wall Thickness (mm)
    O.D. (mm) 0.075 0.08 0.1 0.125 0.15 0.175 0.2 0.225 0.25 0.3 0.35 0.375 0.4 0.45 0.5 0.6 0.75 0.8 0.85 1 1.25 1.5 1.8 2 2.5
    0.1
    0.2   0.04
    0.3 0.15 0.14 0.1
    0.4     0.2
    0.5     0.3   0.2
    0.55
    0.6     0.4
    0.62         0.32
    0.7       0.45 0.4
    0.8         0.5 0.45     0.3   0.1
    0.9             0.5
    1     0.8   0.7   0.6   0.5 0.4 0.3
    1.1             0.7
    1.2             0.8             0.3
    1.3               0.85 0.8
    1.4             1
    1.5         1.2   1.1   1   0.8   0.7   0.5
    1.6             1.2     1         0.6   0.1
    1.7             1.3
    1.8                 1.3       1
    1.9                 1.4
    2     1.8       1.6   1.5 1.4         1
    2.2                   1.6                 0.5
    2.4                         1.6
    2.5             2.1   2 1.9     1.7   1.5
    2.6                   2
    2.8                         2
    3             2.6   2.5           2   1.5     1
    3.2             2.8           2.4
    3.25                                         0.75
    3.5                       2.75     2.5 2.3
    4                 3.5           3   2.5     2 1.5 1
    4.5                 4           3.5
    5         4.7   4.6   4.5           4   3.5     3   2 1.4
    5.3                 4.8
    5.5                                       3.5
    6         5.7       5.5       5.2   5   4.5 4.4   4   3 2.4 2 1
