Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, USA, Korea, UE |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 / ASME SA213 TP310S / TP310H |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM A213 , ASME SA213 , EN10216-5 , GOST9941-81, JIS G3463 , ASTM A789 | Grade: | TP310S , TP310H , TP904L , TP347H, TP317L |
|---|---|---|---|
| OD: | 12.7MM , 15.88MM , 19.05MM , 25.4MM, 31.75MM, 38.1MM , 44.45MM, 50.8MM, 63.5MM, 76.2MM | WT: | 0.89MM, 1MM, 1.24MM, 1.5MM, 1.65MM, 1.8MM, 2MM, 2.11MM, 2.43MM, 2.5MM, 2.7MM, 3.05MM, 3.4MM |
| Length: | Max. 26m/pc | NDT: | 100% ET / HT/ UT |
| High Light: | ASTM A213 Heat Exchanger Tube,16 BWG Heat Exchanger Tube,20FT Heat Exchanger Tube |
||

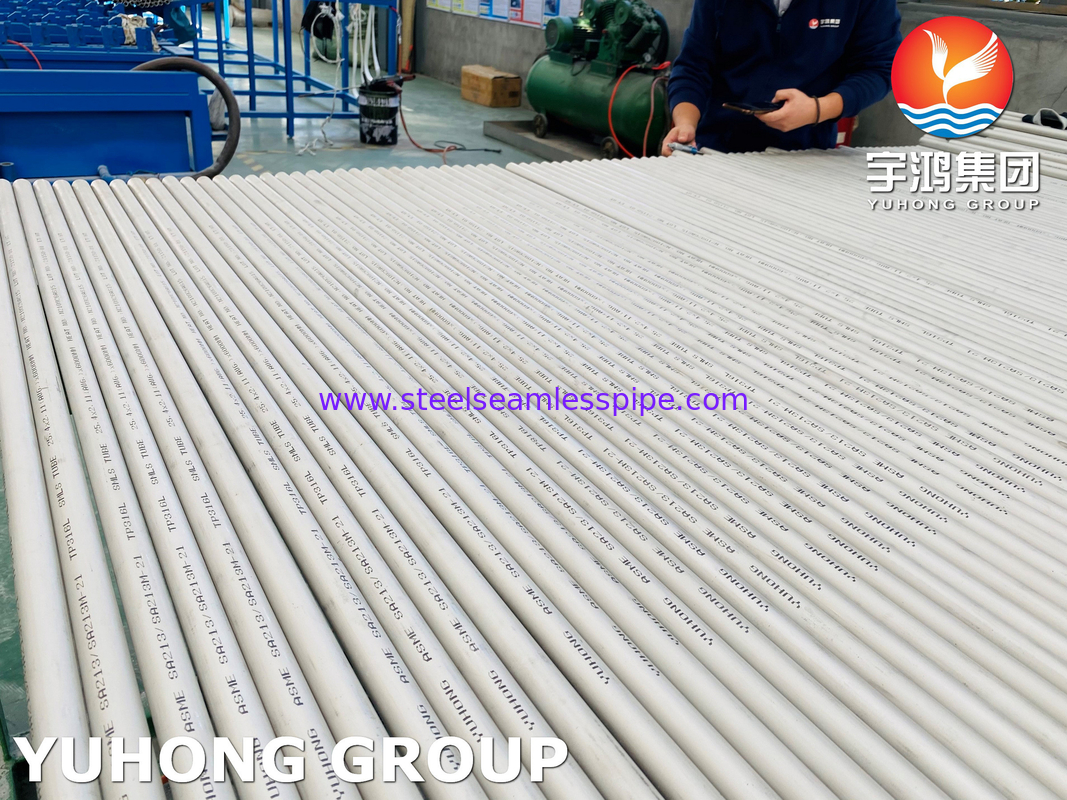

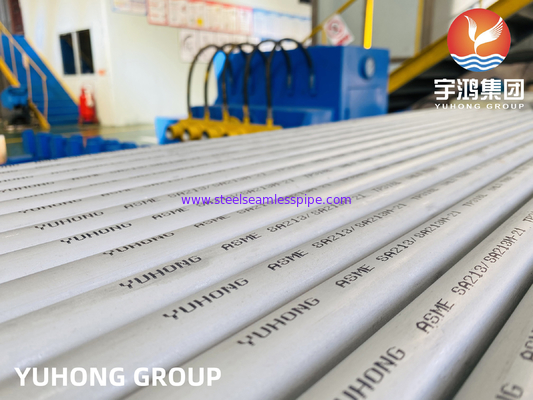

Stainless Steel Seamless Tube, ASTM A213 / ASME SA213 TP310S / TP310H , 3/4" 16 BWG 20FT, 100% ET & HT
YUHONG Group deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
| ube Sizes for Heat Exchangers & Condensers & Boiler | |||||||||
| Outside Diameter | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Wall Thickness mm | |||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inch | Weight kg/m | |||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
| Form of Tube: Straight & U-bend & Finned & Coiled | |||||||||
| Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||
| Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213 | |||||||||
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater
Heat-Exchanger, and Condenser Tubes.
Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
| Product Item | Stainless Steel Heat Exchanger Tube |
| Grade | TP 304/304L, TP316/316L,TP 321/321H,TP317L, TP310S, TP310H, TP309S, TP314, TP329, TP347H etc |
| O.D. | 6.35-101.6mm(1/4''-4'') |
| W.T. | 0.71-14mm(0.028''-0.55'') |
| Size | OD ( 6.35-101.6mm ) * WT ( 0.71-14mm ) * MAX. 32M |
| Standard | ASTM A269, ASTM A312, ASTM A213 etc |
| Quality | MTC will be supplied with shipment, Third Party Inspection is acceptable |
| Application |
Petroleum, chemical enterprise, super heater of boiler and heat exchanger High temperature-resistant transmission fluid pipe in power station Ship with pressure pipe Exhaust purification device Construction and ornament etc |
| Advantage | Advanced technology of cold draw machine; Advanced annealing machine; better mechanical property; more precise dimension; perfect inspection method and inspection equipment etc |
| Process Method | Cold Drawn/ Cold Rolled etc |
| Surface Finish | Annealed, Pickled etc |
| Package |
|
| Delivery Time | 10-60 Days after receiving the deposit (Normally according to the order quantity) |
| Main Market | Europe, Middle East, Southeast Asia, South America. etc |
| Certificate | ABS, DNV-GL, BV, KR, LR, CCS, PED, TUV ,ISO9001, ISO 14001, ISO 18001 |
Type of Tubes:
U-bend & Straight.
|
|
|
