Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YuHong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A213 TP316L |
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | Negotiable |

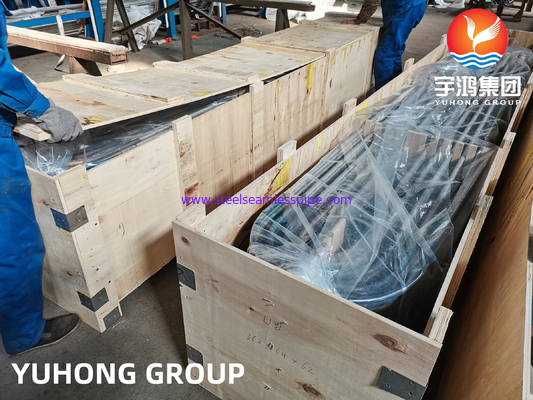

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-70DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Type: | Seamless | Application: | Heat Exchanger, Boiler, Evaporator |
|---|---|---|---|
| Material: | TP316L/ 300 Series 304 321 Etc | NDT: | ET,HT UT.PT |
| High Light: | Seamless Stainless Steel U Tube,Steel U Bend Heat Exchanger,Seamless U Shape Tube TP316L |
||

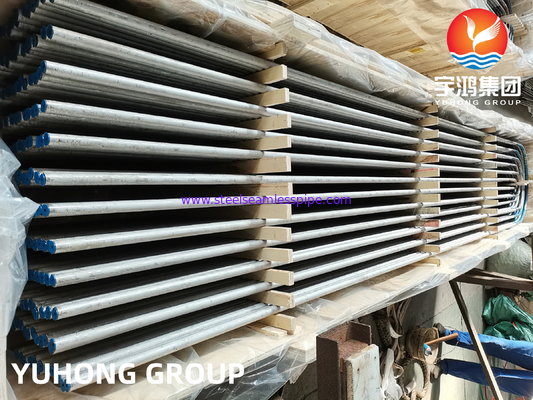

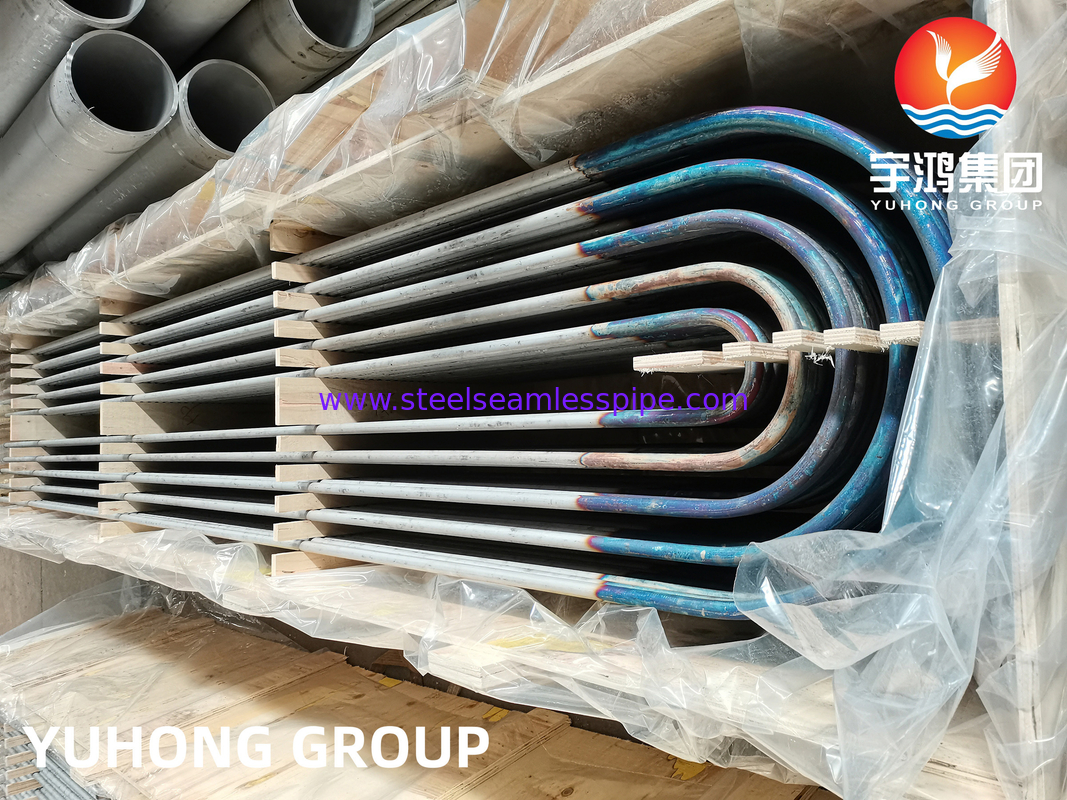

ASTM A213/ASME SA213 TP316L(1.4404) Seamless U Bending Tube for Heat Exhcanger
ASTM A213/ASME SA213 TP316L 1.4401 1.4404 Stainless Steel U Bend Heat Exchanger Tube With High Strength For Oil & Gas Application
At present U Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger Equipments on the basis of Seamless Stainless U-Tubes and Welded Stainless U bend Tube is essential in strategically important and critical felds---Nuclear And Petrochemical Machine Building. Yuhong Group start to produce U Bend Heat Exchanger Tube Since 2006, now every year we can supply more than 6000 tons of Stainless Steel U Bend Tubes to 50 countries in the world.
Chemical Composition
| Grade | C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Process :
1 . We use Cold Rolled and Cold Drawn techonology to produce U bend tube
2 . U bend tube produce will in accordance with the customer's drawings
3 . To avoid oxidation, inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different positions or as customer's request to make sure of the tubes quality. We'll test mechnical properties and micro-structure tests
6 . Visual inspection for witness and cracks will be done with Dye Penetrant Test
7 . Each tube shall be done Eddy current test and Hydrostatic test at the recommended pressure to check for leakage
Below quality tests will be carried out by us:
| Corrosion Test | Conducted only when specially requested by the client |

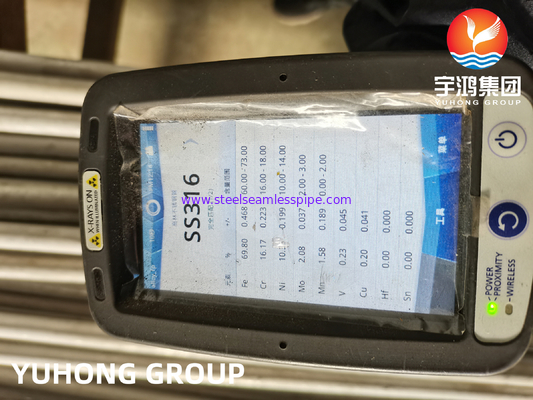

| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Welcome to inquiry to YUHONG.
