ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin

ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin

  • ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin
  • ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin
  • ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin
  • ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin
ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A312 TP316L
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons Per Month
Contact Now
Detailed Product Description
Type: Fin Tube,Heat Exchanger Tube Application: Heat Exchangers, Condensers, Evaporators, Etc.
Tube Material: Carbon Steel,Stainless Steel,Copper Etc,Alloy Steel Fin Material: Aluminum,carbon Steel,stainless Steel
Fin Height: 0mm-16mm,Up To 40 Mm Color: Silver Spiral Finned Tube,BLACK,Metal Color
Base Tube Diameter: Customized Base Tube Thickness: Customized
Corrosion Resistance: High Durability: High
Fin Height: Customized Fin Pitch: Customized
Fin Thickness: Customized Fin Type: Louver, Plain, Serrated, Etc.
Heat Transfer Performance: High Material: Copper, Aluminum, Stainless Steel, Etc.
Pressure Resistance: High Shape: Round, Square, Rectangular, Oval, Etc.
Size: Customized Surface Treatment: Polishing, Anodizing, Galvanizing, Etc.
High Light:

TP316L Finned Tube

,

Stainless Steel Finned Pipe

,

ASTM A312 Finned Tube

ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin

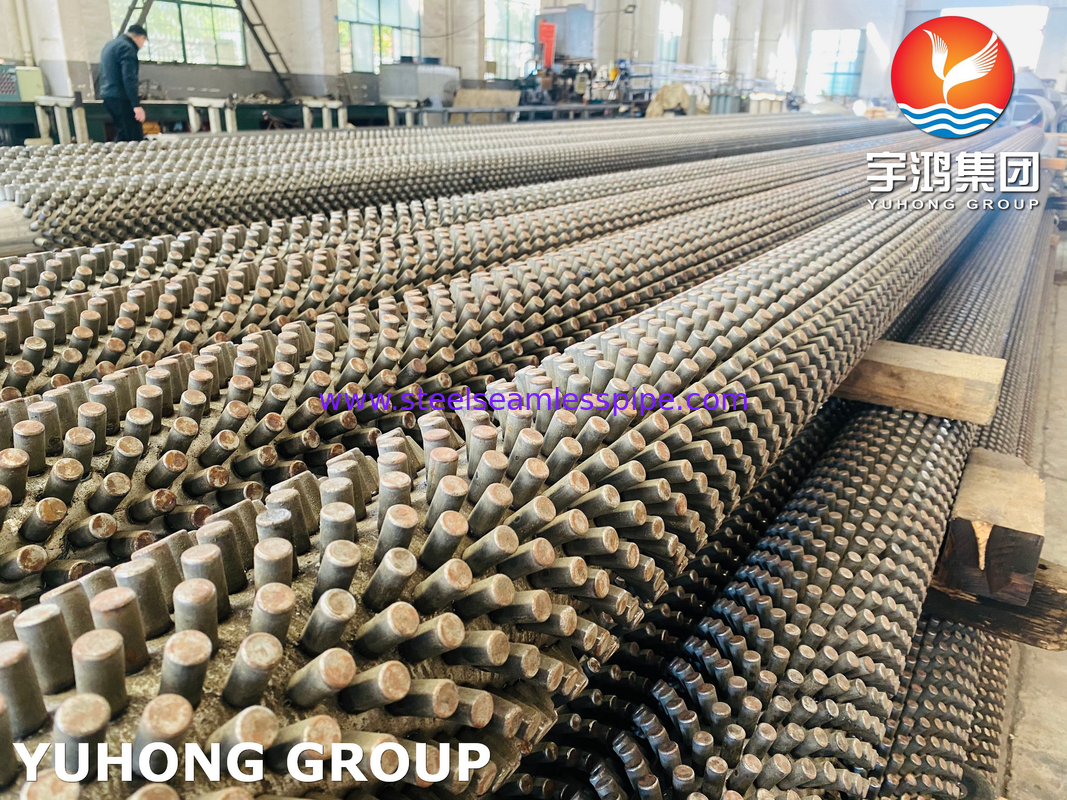

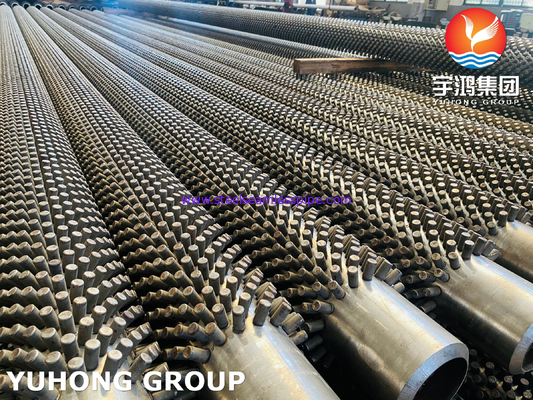

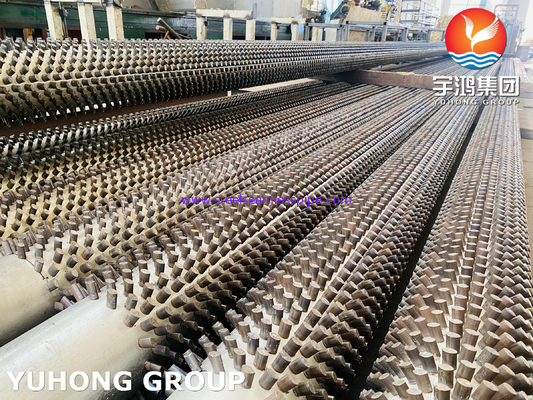

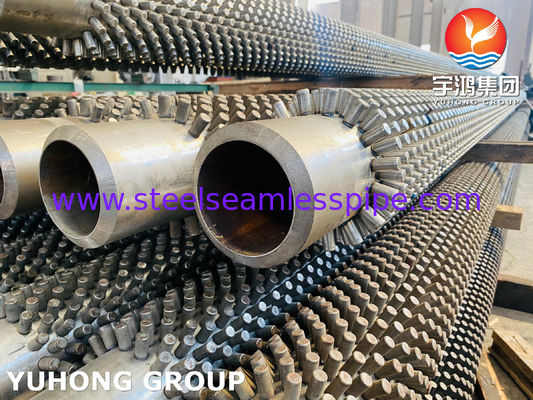

Stud finned tubes are produced by resistance welding studs on bare tubes.



The fins are made by welding the fin material, which is a stud or rod welded to the tube at the bottom by the resistance process.



Electricity flows through the tube and the bottom of the stud. The shape of the stud is specially designed to facilitate the welding process. Stallion; during the "welding" of the fins, is also mechanically pressed against the tube at the weld point, resulting in a very good mechanical bond. This type of finned tube works well in high pressure and high temperature applications. The mechanical bond is very strong and can therefore be used where extreme mechanical loads are applied, where stresses are expected, eg during machining or cleaning.



These finned tubes can be used in finned tubes, air coolers, heat exchangers, etc., and are the first choice for industries such as petrochemical refineries, power plants, chemical industries, and steel mills.



Features of Stud Finned Tubes / Stud Finned Tubes:-



Manufacturing Process:- Resistance Welding



Fin-Tube Bonding:- Excellent



Heat Transfer Efficiency: - Excellent



Mechanical Resistance:- Excellent (thus unlike other finned tubes it can be cleaned frequently with high pressure jets. Thus reducing downtime and increasing overall lifespan)



Corrosion Protection:- Provides excellent corrosion protection to the base pipe as it completely covers the base pipe (except the exposed ends).

Temperature range:- depends on material properties of fins (studs) and pipes



Manufacturing Range (Stud Finned Tube):-



For applications such as heat recovery systems, furnaces and boilers used in the refining and petrochemical industries, ZAFFERTEC S.L. supplies finned tubes, stud tubes, flat tubes, U-tubes and discs etc. from leading European manufacturers.



Our factory facilities enable our producers to offer a wide variety of fins, studs, tubing and size combinations according to our customers' needs. We provide products with minimized production issues and testing time of equipment.



Finned tube:

We supply the highest quality welded finned tubes by High Frequency Resistance Welding (FRW) machines. The steel fins can be solid or serrated and are helically wound and continuously welded to the tube by the HFW system. The size and dimensions of the fins can be adjusted according to customer requirements.



Finned Tube OD: 1" to 8"

Fin thickness: 0.9 to 3 mm



Inlaid tube:

The studs are welded to the pipe using resistance welding, which produces high quality welds. Stud tubes are preferred over finned tubes in heat transfer systems in petrochemical plants where surfaces are exposed to highly corrosive environments such as dirty gases or liquids. These pipes should be resistant to corrosive materials and must be cleaned frequently.



Mounting tube outer diameter: 60 to 220 mm

Packaging and Handling:

Proper packaging of finned and stud tubes is extremely important to ensure their safe transport to their final destination. Finned plates and riveted components are very sensitive to any impact during transport. YUHONG takes full responsibility for the safe packaging of these products. We typically pack in wooden cases, steel cases, and crates, then crate or box into intermodal containers for ocean shipment, or onto trucks for road transport.



Sr. No Particulars Range
1 Base Tube Material Stainless Steel, Carbon Steel, Alloy Steel, Titanium , Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit)
2 Base Tube Outside Diameter 60 mm to 200 mm
3 Base Tube Thickness 3 mm to 12.70mm Above
4 Base Tube Length 2000 mm Min To 15000 mm
5 Stud Material Carbon Steel/Stainless Steel/Alloy Steel
6 Stud Thickness 6mm to 16mm
7 Stud Density 15.88mm or 63 Studs Per Plate Per Meter (Can Be Customized to Clients Requirements)
8 Stud Height 12.7mm to 63.5mm
9 Bare Ends As per Client Requirement



Stud finned tubes / Stud finned tubes are available with EN 10204 EN 3.1 and EN 3.2 certification. We can provide third-party inspection by any well-known inspection agency.

ASTM A312 TP316L Studded Finned Tube Stainless Steel Pipe With Studded Fin 0
