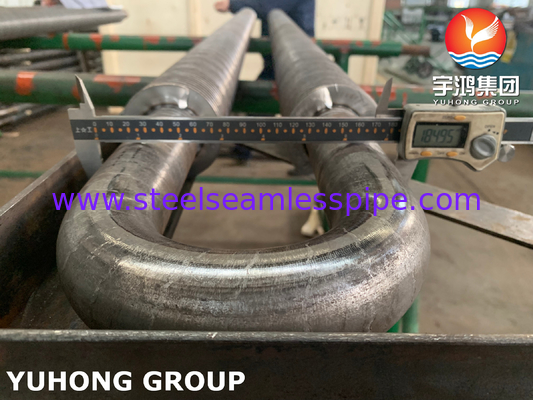

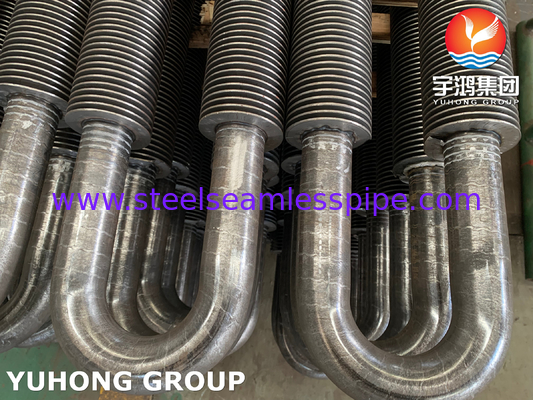

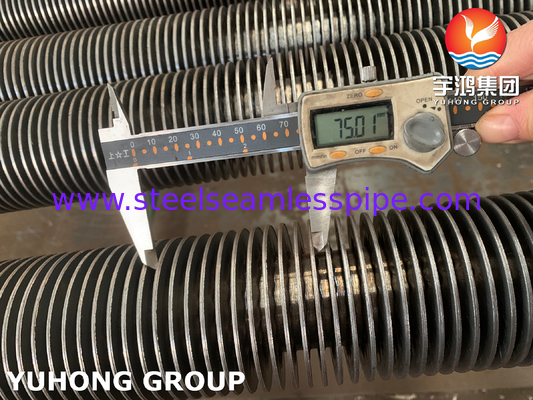

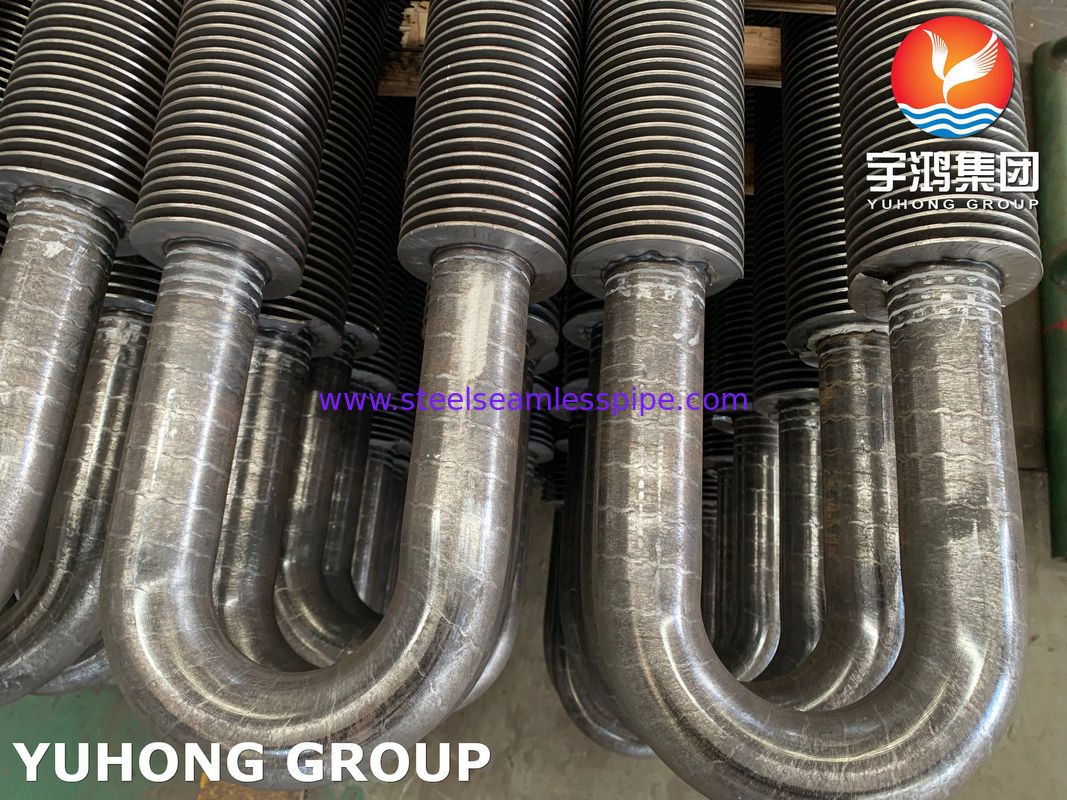

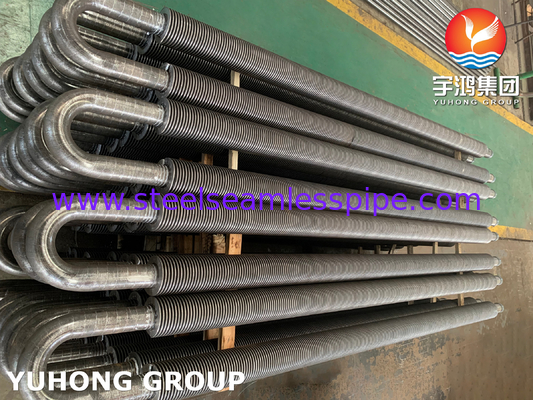

U Bend Fin Tube , ASTM A106 Gr. B High Frequency Welded Fin Tube For Heat Exchangers

U Bend Fin Tube , ASTM A106 Gr. B High Frequency Welded Fin Tube For Heat Exchanger


High Frequency Welded Spiral U Bend Fin Tube is a type of fin tubes, which is mainly welded by high frequency welding and is a new type of excellent heat dissipation elements. The high frequency welding finned tube is welded with high frequency current, the welding method is reliable and excellent, the welding seam is small, and the surface of the radiator is more solid as well as beautiful. ASTM A106 Gr.B HFW spiral fin tube is one of the most widely used spiral finned tubes, and is now widely used in power, metallurgy, waste heat recovery in cement industry and petrochemical industry.

Chemical Composition:

Mechanical Strength:

Characteristics:

1.The fast welding speed and the strong self-cooling effect of the welded parts, and the heat-affected zone is small and the oxidation is not easy to occur, so the organization and performance of the weld is excellent.

2.Low contact heat resistance, high stability, anti-dust accumulation ability

3.Large heat exchanger area

Manufacturing Process:

The fin strip is welded continuously and spirally wound onto a polished bare tube. The tube and fins are bonded together by using high frequency resistance welding technique.

Applications Of U Bend HFW Finned Tubes:

1. Heat Exchangers: ASTM A106 Gr. B high frequency welded finned tubes are commonly used in heat exchangers to transfer heat between two fluids. The finned tubes increase the surface area available for heat transfer, improving the efficiency of the heat exchanger.

2. Boilers: High frequency welded finned tubes made from ASTM A106 Gr. B are also used in boilers to increase the heat transfer efficiency and improve overall performance.

3. Air Conditioning Systems: The finned tubes are used in air conditioning systems to enhance the heat transfer capabilities and improve the overall efficiency of the system.

4. Industrial Heaters: ASTM A106 Gr. B high frequency welded finned tubes are used in industrial heaters to provide efficient and effective heat transfer within the system.

5. Oil and Gas Industry: The finned tubes are used in the oil and gas industry for various applications such as heat exchangers, boilers, and process equipment.

6. Power Generation: High frequency welded finned tubes made from ASTM A106 Gr. B are also used in power generation plants for heat transfer applications.

7. Refrigeration Systems: The finned tubes are used in refrigeration systems to improve the efficiency of heat transfer and enhance the overall performance of the system.
