Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP304, 1.4301, UNS S30400 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case |
| Delivery Time: | 10-90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | A213, A269, A789, B163, B407 | Material Grade: | TP304, TP304L, TP316, TP316L |
|---|---|---|---|
| Tube Material: | Carbon Steel, Stainless Steel, Copper Etc. | Product Name: | Corrugated Fin Tube |
| Length: | 200mm-6000mm Or As Customized | Applications: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling |

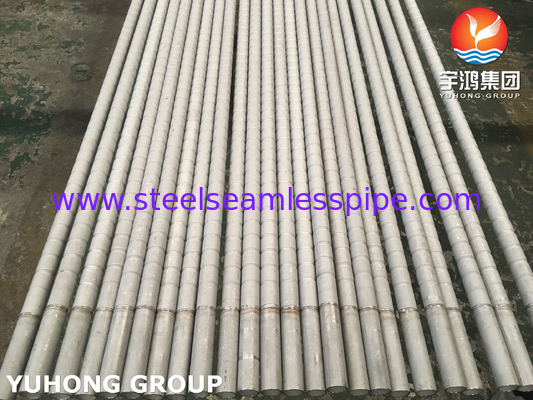

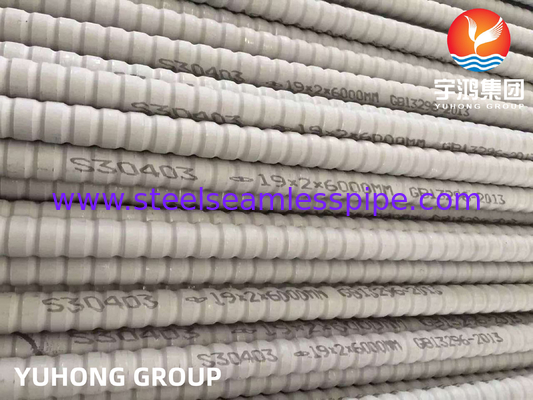

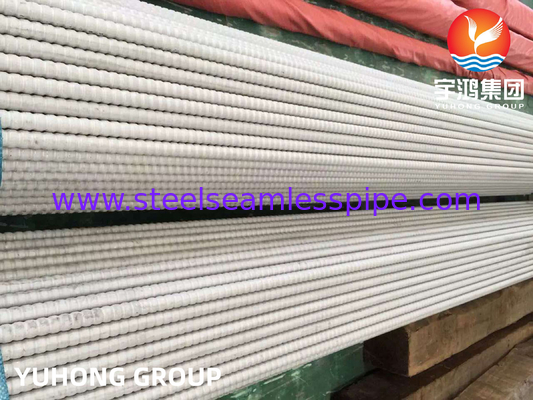

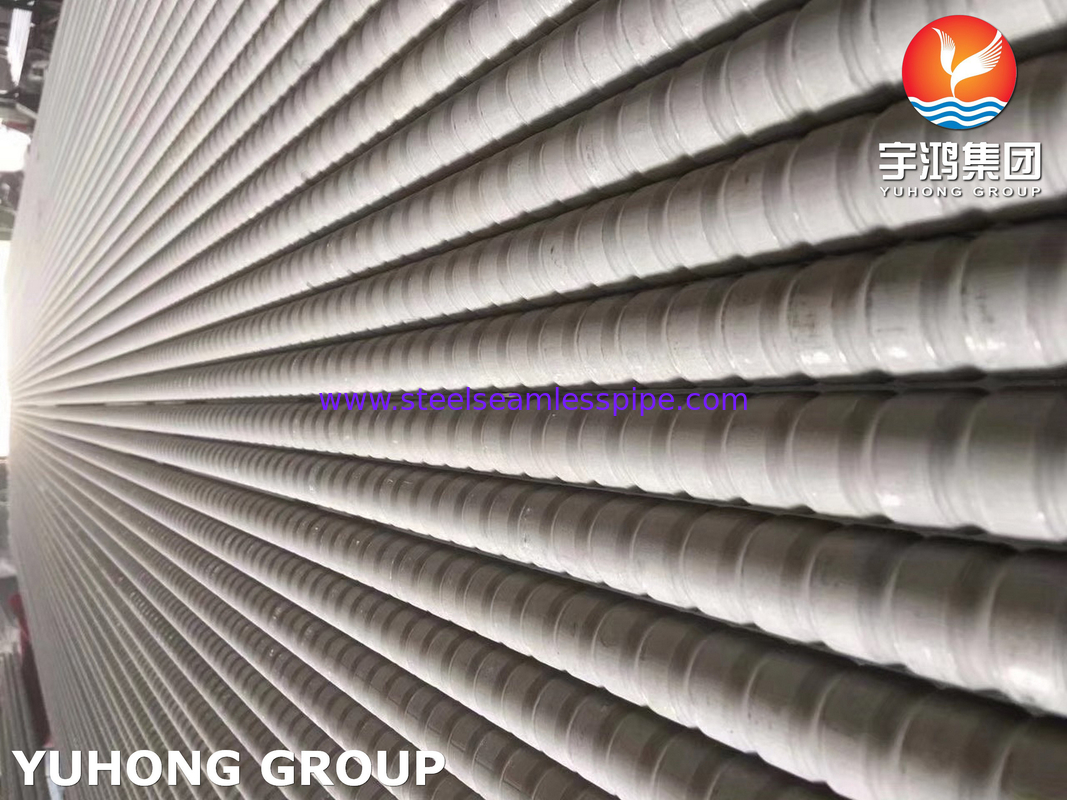

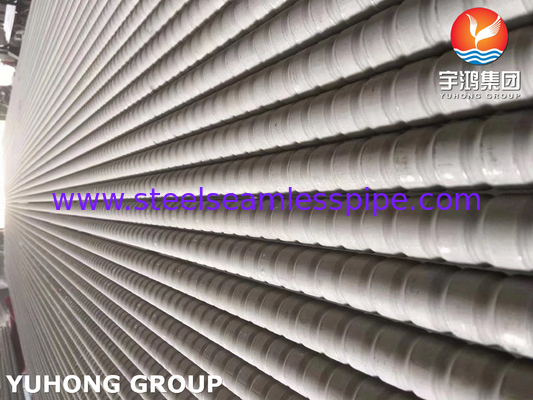

TP304, TP304L Stainless Steel Corrugated Fin Tubes For Heat Exchangers
What is corrugated fin tubes?
A corrugated fin tube has flat plate sections with lateral sides facing each other and end sides facing each other with joining sections connecting with lateral sides of the flat plate sections. The pattern on a corrugated fin looks like a zigzag line or repeating “w” when viewed from the side.
304 Stainless Steel Corrugated Fin Tubes is usually used for components of energy type tools such as steam super-heaters, boilers, steam pipelines, etc..These UNS S30400 Corrugated Fin Tubes are prepared from low alloyed and heat resisting steels which can survive the weight at soaring temperature and pressure. Meanwhile, the thick wall tubes and smaller diameter tubes of bigger diameters are provided as cold drawn and after that they are being heat treated.
The corrugated fin tube is a new type of high-efficiency heat exchange tubes which replaces the bare tube. It has the advantages of strong corrosion resistance, longer life, no pitting, and low price.
The stainless steel corrugated fin tube is made of high-quality stainless steel, which has resistant to corrosion. The more important thing is the special internal and external waveforms of the corrugated tubes. The turbulent medium constantly washes the inner and outer surfaces of the tube, which makes it difficult to foul. The corrugated fin tube is a flexible element. The curvature of each part of the corrugated tubes changes continuously after being affected by the temperature difference during the working process. Although the deformation caused by this curvature change is not very large, the linear expansion coefficient of the dirt and the metal corrugated fin tube is very different. So there will be a large pull-off force between the dirt and the corrugated tube surface, which is enough to make the dirt fall off to realize automatic cleaning and automatic descaling. The stress distribution is uniform, and the corrosion resistance is strong.
Specifications:
| Material | Copper - SB111 UNS No. C12200 / 12000 Cu - Ni - SB111 UNS No.70600, 71500 Stainless Steel - SA213 TP304, TP304L, TP316, TP316L Carbon Steel - SA249 TP304, TP304L, TP316, TP316L |
| Diameter | 9.52mm, 12.70mm, 15.88mm, 19.05mm, 22.20mm, 25.40mm & 38.10mm |
| Wall thickness | 0.5mm - 3.25mm |
| Corrugation Pitch | 5mm - 15mm or As per Customer Specification |
| Groove Depth | 0.5mm - 1.5mm or As per Customer Specification |
Manufacturing process:
The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube
Applications:
Refrigeration
power plant
Heating Exchanger
Chemical Processing Systems
Oil and Air Cooling Systems
Food Processing Equipment
Automotive manufacturing
Chemicals and pertrochemical Industry
