Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A106 GR.B |
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply- Wooden Case/Plastic Bag / Plastic Cap |
| Delivery Time: | 10-75DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 TONS/ YEAR |
| Fin Type: | High Frequency Welded(HFW) | Fin Material: | Carbon Steel(A106 Gr.B) |
|---|---|---|---|
| Fin Thickness: | 1.5-3.5mm | Fin Height: | 5-30mm |
| High Light: | Carbon Steel Soild Fin Tube,ASTM A106 HFW Fin Tube,High Frequency Welded Finned Pipe |
||

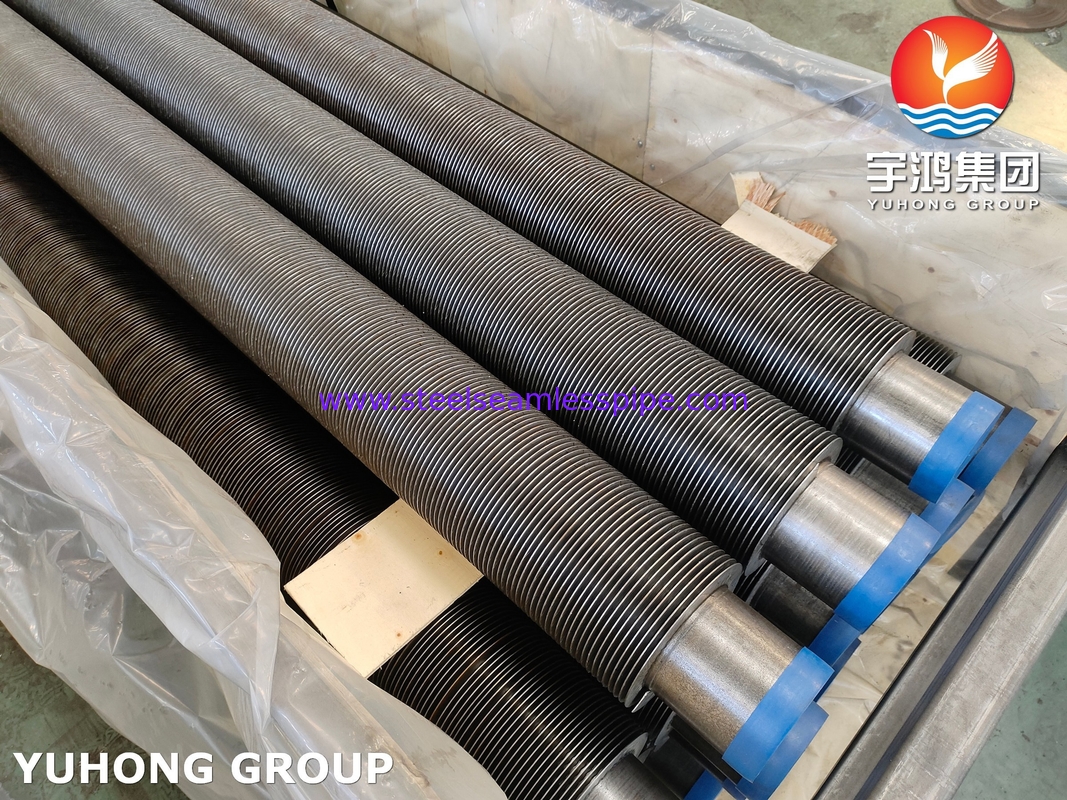

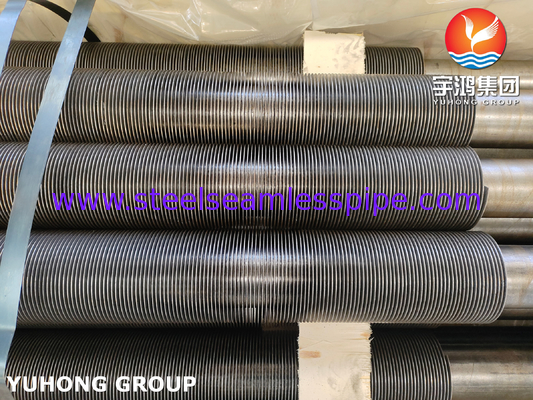

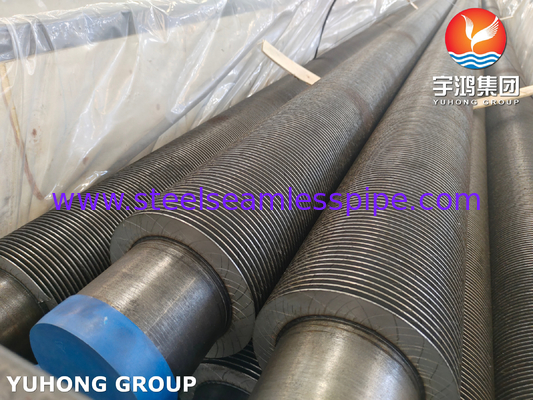

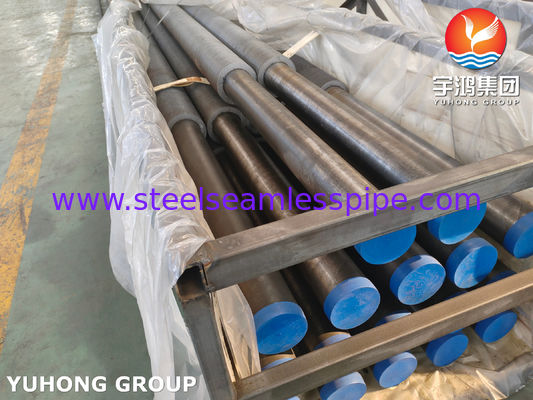

ASTM A106 HF Welded Fin tube Carbon Steel Fin Tube Manufacturer
High Frequency Welded fin tube also called solid type fin tube,use steel or stainless steel strip directly welded to tube surface by HFW.Can improving heat transfer efficiency much more than bare tube.Due to the tight welding of the fins to the base tube, these finned tubes are often used in vibrating conditions.Fin type have Serrated fin and flat fin.
Base tube material:
stainless steel, carbon steel, alloy steel
ASME SA213/ASTM A213 TP304/304L TP316/TP316L TP321 TP310S TP317,
ASME SA106/ASTM A106 Gr B Gr C,ASME SA179/ASTM A179,ASME SA192/ASTM A192
Fin material:
Alloy steel, Stainless steel High Frequency Welded fins tube, carbon steel High Frequency Welded fins tube Duplex High Frequency Welded fins tube super duplex High Frequency Welded fins tube Air cooler fins tube, Air preheater fins tube.
Extruded fins tube Serrated fin tubes L Type fins tube G Type fins tube LL Type fins tube H Type fins tube KL Type fins tube HFW fin tube laser welded fin tube.
Base Tube Details
| Tube O.D.: | 16 to 273 (mm) | 3/8” to 10”(NPS) |
| Tube Wall Thk.: | 2 to 28.6 (mm) | 0.08” to 1.1” |
| Tube Length: | ≤28,000 (mm) | ≤92 ft |
| Fin Thk.: | 0.5 to 3.5 (mm) | 0.02” to 0.14” |
| Fin Height: | 8 to 35 (mm) | 0.31” to 1.3” |
| Fin Pitch: | 3 to 333 FPM | 1 to 8 FPI |
| Fin Type: | Solid, “U”or“V” Serrated | |
| Fin Material: |
C.S. (common grade: 08F, SPCC) S.S. (common grade: AISI 304, 316, 409, 410, 321,347 ) A.S. |
|
| Tube Material: |
C.S. (common grade: A106 Gr.B, A210, A192) S.S. (common grade: TP304, 316, 321, 347 ) A.S.(common grade: T/P5,9,11,22,91 ) Duplex Steel(most common grade: S32205 etc. ) |
|
Base pipe O.D: 15.88-165mm
Fin height: 6-50mm
Fin thickness: 0.3-0.5mm
Fin pitch: as customer's request.
End: Plain Ends, Beveled Ends
No fin area on both side: As Customer's request and drawing
Application:
Contact Person: Ruby Sun
Tel: 0086-13095973896
Fax: 0086-574-88017980
