Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B163 NO8825 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-75 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Standard: | ASTM B163 | Material: | UNS NO8825 |
|---|---|---|---|
| Type: | G-Type | Tube Material: | Carbon Steel, Stainless Steel, Alloy Steel,etc |
| Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling | Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | G-Type Aluminum Fin Tube,Embedded Aluminum Fin Tube,No8825 Finned Tube |
||
ASTM B163 Embedded G Type Al Fin Tube NO8825 Tubo Aletado
YUHONG Group can handle kinds of projects, such as heat exchanger / boiler projects, marine projects, oil & gas projects etc. We offers ASME SB163 Embedded G-Type Aluminum Fin Tube NO8825 and we sell this fin tubes in over 70 countries.

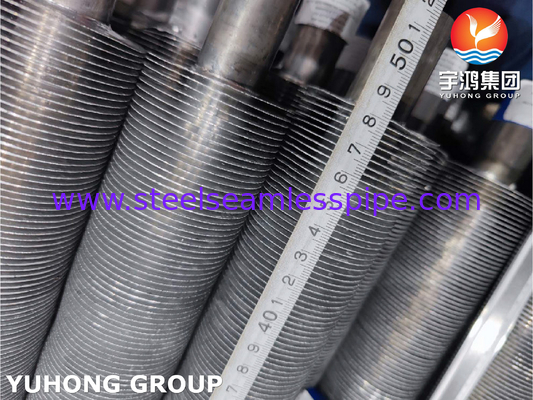

Embedded Fin Tubes also called G type Finned Tube, Embedded Finned Tube provides a perfect connection between the fin and the tubes . The Embedded Fin tubes main design is that through professional equipment groove the tubes and fin insert fins into the helical groove. Finally combined the fin and tubes as intergral.(G-Fins) are made by winding aluminium or copper strip into a helical groove machined on the outer surface of the tube. Embedded Fin tubes can be used in higher temperatures and are very durable. Embedded Fin tubes are best suited for the usages that involve high thermal cycling or high temperatures and where the fin side will be subjected to regular cleaning .
Specifications For Various Types Of Finned Tubes
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.
Features Of G-Type Finned Tube
High-performance
Increased reliability
Easy installation
Less space required
Less cabling
Optimized surface
Finest technology used
Average corrosion protection
Low maintenance
High mechanical resistance
Compact design
Detailes Of Incoloy 825 / NO8825 Tube
ASME SB 163 N08825 Nickel Alloy TUBE is a nickel-iron-chromium alloy with added molybdenum and copper. The chemical composition of this nickel steel alloy is designed to provide superior resistance to many corrosive environments. It has excellent resistance to reducing and oxidizing acids, stress corrosion cracking, and localized corrosion such as pitting and crevice corrosion. Alloy 825 Incoloy 825 is particularly resistant to sulfuric and phosphoric acid. This nickel steel alloy is used in chemical processing, pollution control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production and pickling equipment.
Chemical Composition
| Grade | Ni | Cu | Mo | Fe | Mn | C (A) | Si (A) | Su | Cr | Al | Ti |
| UNS NO8825 | 38.0-46.0 | 1.5-3.0 | 2.5-3.5 | 22.0 min | 1 | 0.05 max | 0.5 | 0.03 | 19.5-23.5 | 0.02 max | 0.6-1.2 |
Mechanical Properties
| UNS NO8825 | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation | Rockwell Hardness |
| Annealed | ksi-85,MPa-586 | psi-35,MPa-241 | 30% | / |
Inspections and Tests
| Inspections and Tests:G-fin; L-fin; LL-fin; KL-fin; Extruded-fin Finned Tubes | |||
| 1.Chemical Composition | |||
| 2.Mechanical Properties | |||
| 3.Hydrostatic Test | |||
| 4.Pneumatic Test | |||
| 5.Boroscopic Inspection | |||
| 6.Eddy Current Test | |||
| 7.Tensile Test (only for bimetallic tube) |
Our Equipments
| Main production equipments: | |||
| Four ERW high frequency fining lines, daily capacity around 30 tons. | |||
| Three bending machines, maximum OD76*80. | |||
| Three ERW studding lines, daily capacity around 100,000 studs. | |||
| One DC ERW H/HH fining lines, daily capacity around 20 tons. | |||
| Three PLC high speed presser. | |||
| 10 L/LL/KL/KLM Fining Production lines, daily capacity around 6000 meters. | |||
| 10 G Fining Production lines, daily capacity around 4500 meters. | |||
| 20 Extrusion Fining Production lines, daily capacity around 15000 meters. |
Related Industries Involved
Chemical industry
Petroleum Industry
Metallurgical industry
Power industry
Pharmaceutical industry
Food industry
Light industry
Application
Heat Exchangers For Power Plants (electric, nuclear, thermal and geothermal power plants)
Steam Condensate Systems
Chemical And Petrochemical Industry
Food Processing Plants And Refrigeration Technology
Industrial (steel mills, incinerators, gas compression facilities)
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
Waste Heat Recovery
Driers
1.Number of Pieces.
2.Base Tube: Diameter, thickness, length and material specification.
3.Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
4.Delivery period required.
