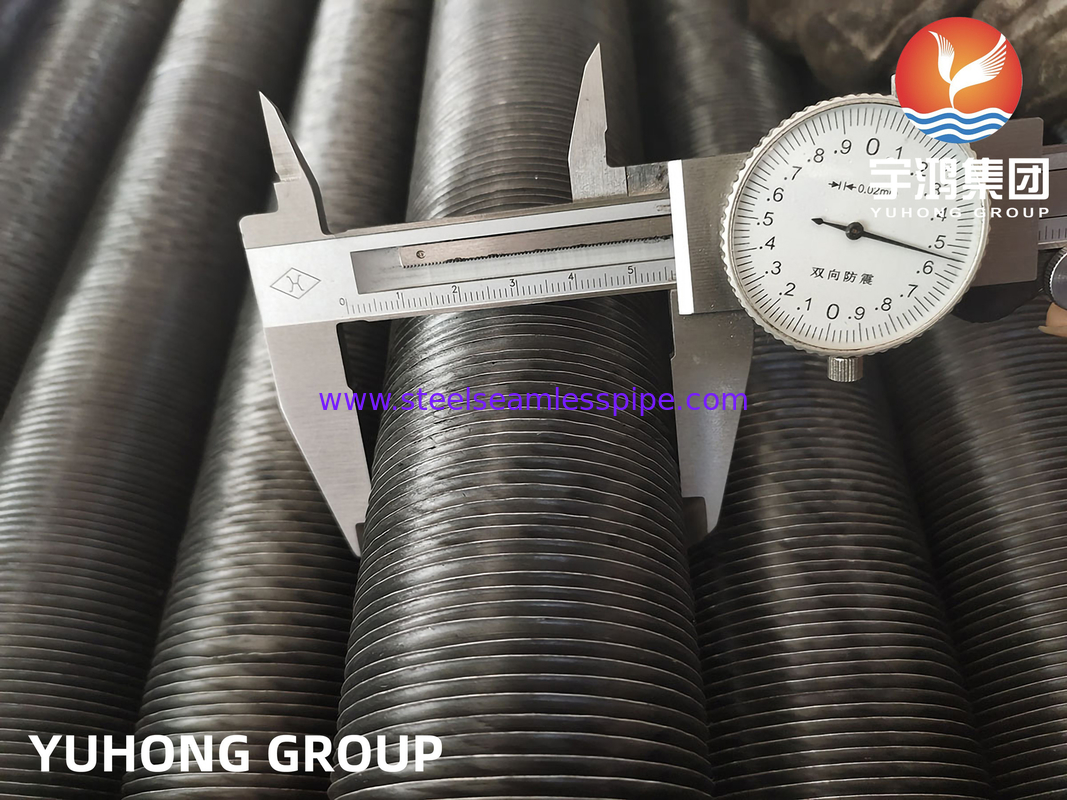

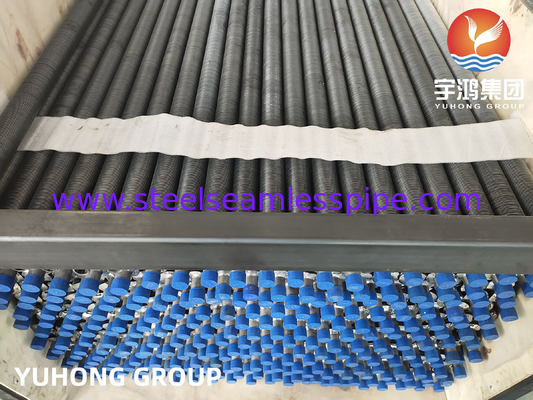

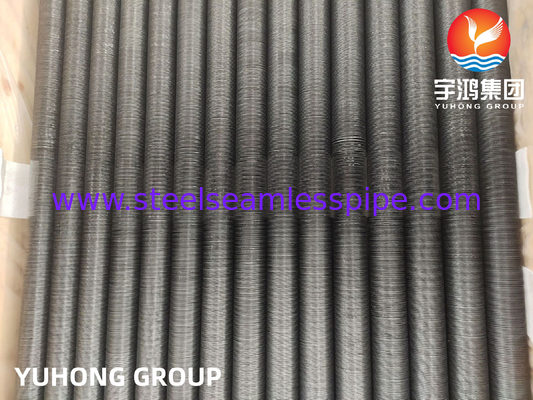

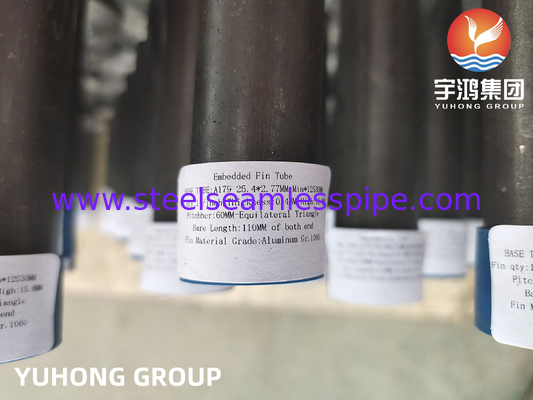

ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler

ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler

  • ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
  • ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
  • ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
  • ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: EMBEDDED G-FIN TUBE
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: Depending on QTY
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 100 tons per month
Contact Now
Detailed Product Description
Standard: ASME SA179 / ASTM A179 Type: Fin Tube Heat Exchanger Tube,Stainless Steel Heating Equipment
Application: Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling Tube Material: Carbon Steel,Stainless Steel
Fin Material: Carbon Steel Pipe With Aluminium Spiral Fin Fin Height: 16mm Max
High Light:

G Type Embedded Finned Tube

,

ASME SA179 Finned Tube

,

Air Cooler Aluminium Finned Pipe

ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler



Yuhong Group has been dealing in stainless steel/duplex/nickel steel seamless pipes for more than 10 years, with annual sales of more than 80,000 tons of stainless steel/duplex/nickel steel seamless pipes. Our customers have covered more than 45 countries. Our stainless steel seamless pipes and tubes are widely used in mining, energy, petrochemical, chemical, food plants, paper mills, gas and fluid industries, etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS



What are finned tubes used for?



Finned tubes are the main components of heat exchangers. They are a series of tubes where fins have been added on the outside to increase the contact area with the outside fluid, to exchange heat and between the fluid inside the tube and the fluid outside the tube. Finned tubes are elongated aluminium cladded carbon steel flat tubes with brazed aluminium fins.



G Type Embedded Finned Tube is combined with two different materials


Core tube material: carbon steel, low alloy steel, stainless steel, brass, copper, copper-nickel alloy, aluminum bronze, nickel alloy.
1. Carbon steel: A179, A192, SA210 Gr A1/C, A106 Gr B
2. Stainless steel: TP304/304L, TP316/TP316L/316Ti, A789 S31803/S2205
3. Copper: UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10


Fin material:
1. Aluminum (Alu.1100, Alu.1060)
2. Copper.
3. Steel



Chemical Components (%) of SA179 G Type Embedded Aluminum Fin Tubes



C

Si

Mn

P

S

Mo

Cr

V

0.06-0.18

/

0.27-0.63

≤0.035

≤0.035

/

/

/



Mechanical Properties of SA179 G Type Embedded Aluminum Fin Tubes



Tensile
Strength (Mpa)

Yield
Strength (Mpa)

Elongation
(%)

Hardness
(HRB)

≥325

≥180

≥35

≤72





Quality Control for G Type Embedded Finned Tube
Inspection and Tests Performed

Chemical Composition inspection,
Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test),
Surface and Dimension Test,
No-destructive Test,
Hydrostatic Test.



Application



SA179 G Type Embedded Aluminum Fin Tubes are widely used in industries such as petroleum, chemical, medical, food, light industry, machinery, instrument, include industrial pipeline and mechanical structure parts, etc.



ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler 0
