Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | C70600 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |

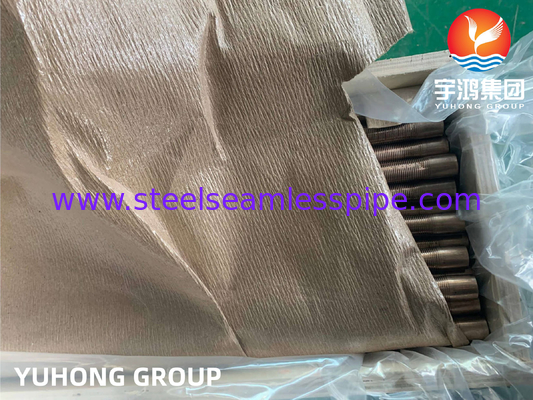

| Packaging Details: | Wooden Box package |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Bare Tube: | Copper/carbon Steel/Stainless Steel/Aluminum | Fin Material: | Alu 1050/1060 |
|---|---|---|---|
| Size: | As Per Client's Drawing | Application: | Air Cooler &Heater&Heat Exchanger |
| Package: | Wooden Box Package | ||
| High Light: | C70600 Aluminum Extruded Fin Tube,Copper Nickel Alloy Extruded Fin Tube,Air Cooler Finned Tube |
||

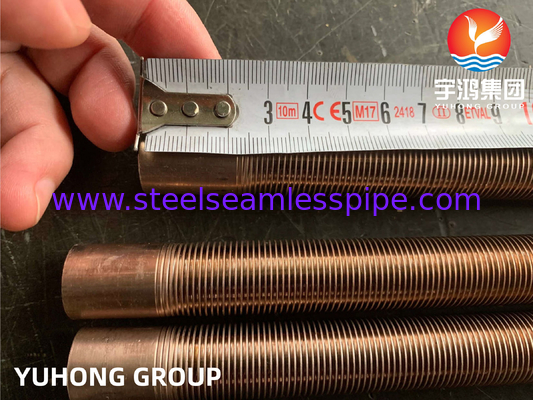

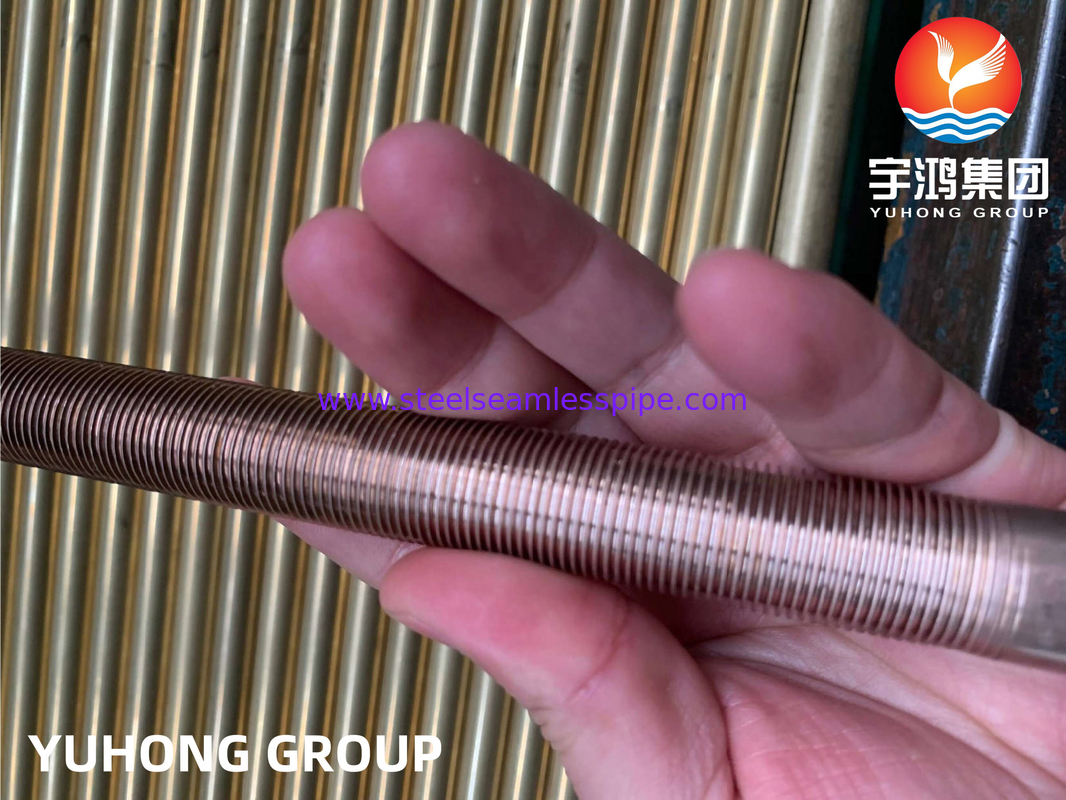

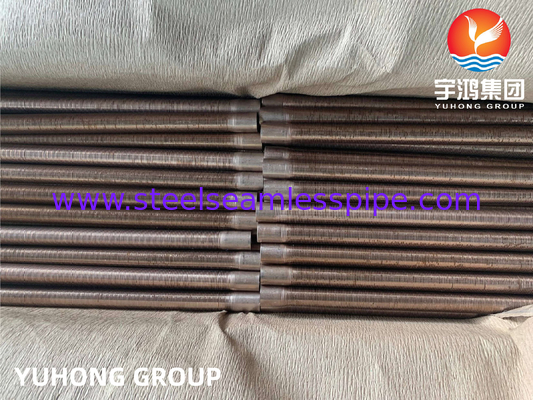

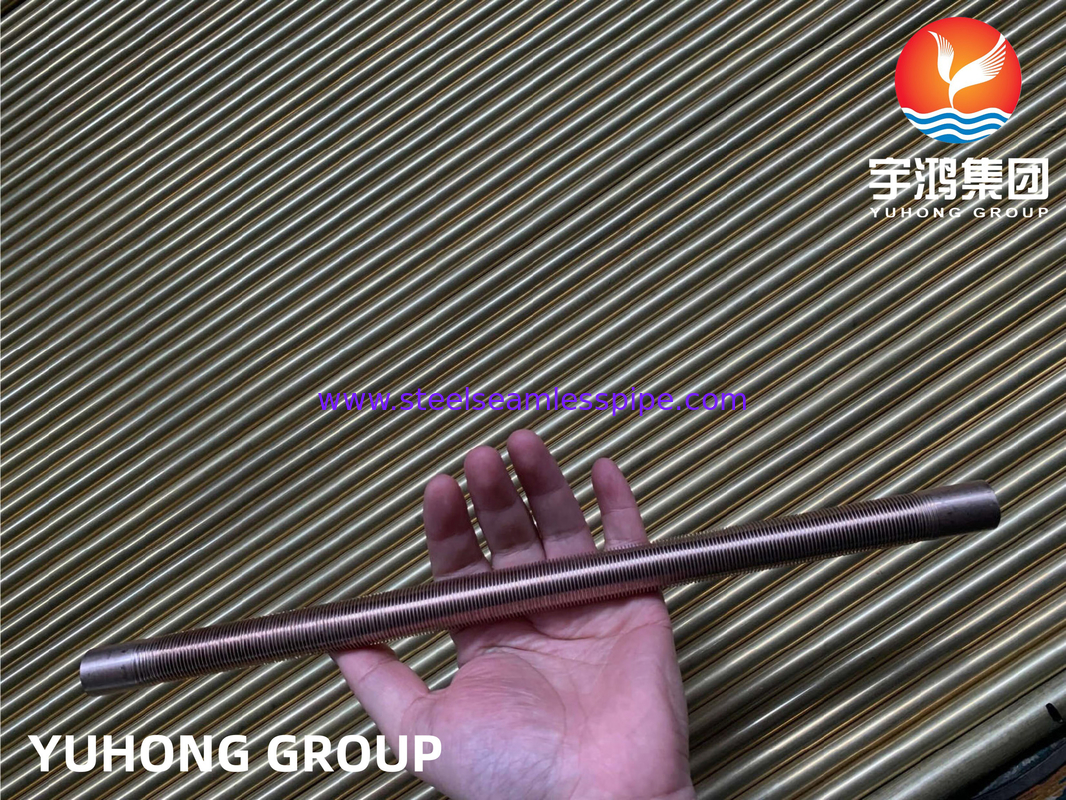

Copper Nickel Alloy 90 /10C70600 Aluminum Extruded Fin Tube For Heat Exchanger Air Cooler Heater Fluid Cooling
Finned tube is composited with iron-aluminum or copper-aluminum tube rolling out the fin, which feathers are tightness, small heat resistance, good heat transfer performance, high strength, small flow losses, strong corrosion resistant performance, not easy to deformation and a long working lifetime in cold and hot condition,etc.
According to user needs, we can produce all kinds of steel strip winding finned tube and steel aluminum composite finned tube. As the heat transfer element finned tube works long-term in high temperature and flue gas condition, such as finned tube in the boiler heat exchanger which use conditions are as high temperature and high pressure and corrosive atmosphere, should have a high performance metrics and they are as follows:Anti-corrosion ,Anti-wear,lower contact resistance ,Higher Stability,Anti-dust stratification.
This intergral low finned tubes are widely used as heat transfer tubes because of their large external surface area and high heat transfer performance compared with a plain tube. This enhanced surface fin tubes allow our customers to either reduce the size of the heat exchanger or increase its perfornance. The low finned tubes we manufacture are designed to meet the most efficient and durable thermal performance for the most challenging situations and long lasting service life.
| Temper | Tensile Str. | Yield Str. | Elong. | Rockwell | |||
| B | C | F | 30T | ||||
| H55 | 414MPa (60ksi) | 393MPa (57ksi) | 10% | 72 | - | 100 | 70 |
| OS025 | 303MPa (44ksi) | 110MPa (16ksi) | 42% | 15 | - | 65 | 26 |
Chemical composition of UNS C70600
| Elements | Content (%) |
| Nickel, Ni | 9.0-11.0 |
| Iron, Fe | 1.0-1.8 |
| Zinc, Zn | 1.0 |
| Manganese, Mn | 1.0 |
| Lead, Pb | 0.05 |
| Copper, Cu | Remainder |
| DESCRIPTION | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE mm |
|
Extruded ,L-fin, G(Embedded) Fin tube |
All Kind of Material can be applied |
Aluminum A1050, A6061, A1100, A1050,A1060, Copper C1100,C1220 |
12.70~50.8 |
|
High frequency Welded Finned Tube H, HH,Longitudinal |
Carbon,Stainless, Alloy |
Carbon,Stainless ,Alloy | 12.7~160 |
| Integral Copper&Copper Alloy High Finned Tube |
C12200,C11000, C70600 |
C12200,C11000, C70600 |
15.88~22.23 |
|
Oval Finned Tube, STUD FIN TUBE |
Carbon ,Stainless , Alloy Steel Tube |
Carbon,Alloy.stainless Steel Tube | All Size Available |
| Low Fin Tube | Carbon,Stainless Steel, Titanium,copper,brass,nickel Alloy,etc. |
--- |
9.52~40 |
| Corrugated Tube | All Kind of Material | --- | 6.35~40 |
| Tube Size available | |
| Plan Tube OD | 15.88/ 19.05/ 25.4/ 31.8/ 38.1/ 50.8/ 63.5/ 76.0 mm |
| Plan Pipe OD | 26.7 / 33.4 / 42.2 / 48.3 / 60.3 / 73.0 / 88.9 / 101.6 / 114.3 / 141.3 / 168.3 and 219.1 mm |
| FPI | 8~ 11 or as requirement. |
| Fin materials | aluminium, stainless steel, Copper, Special metals as required. |
| Fin Height Range |
Solid Fin is 6.3 to 31.8 mm Serrated Fin is 12.7 to 38.1 mm |
