Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A179 |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | negotiatable |

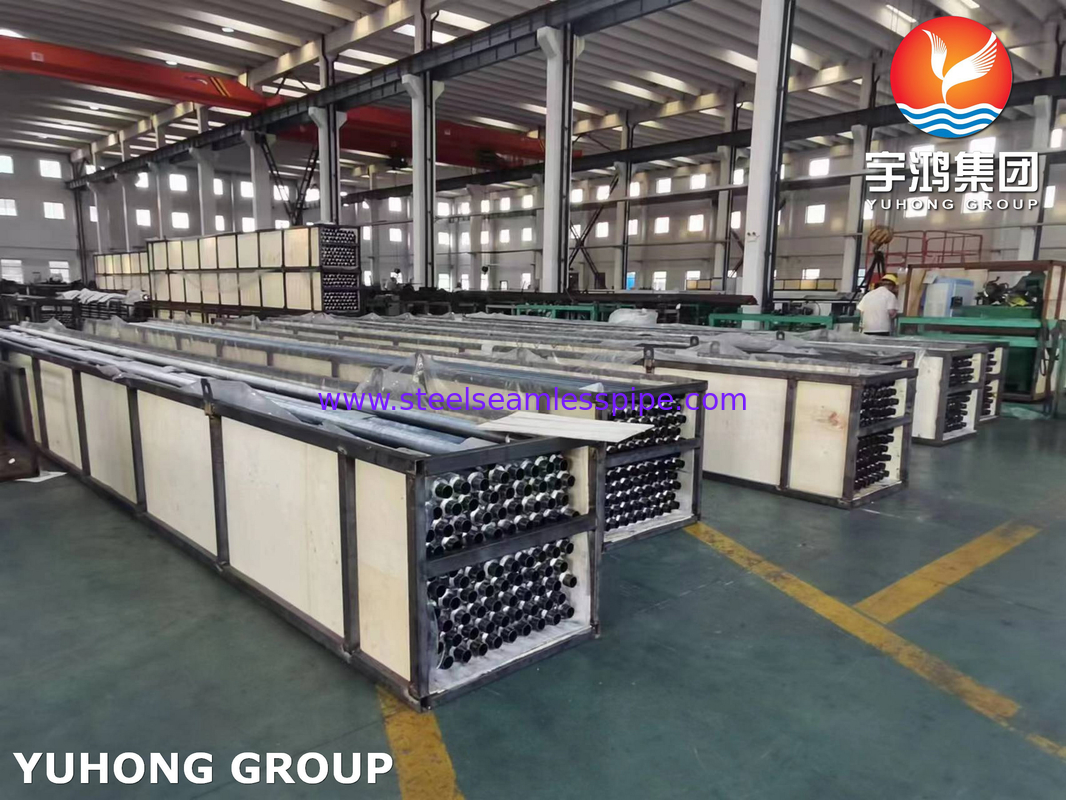

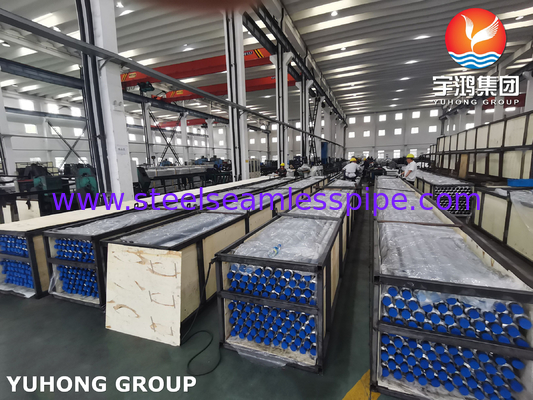

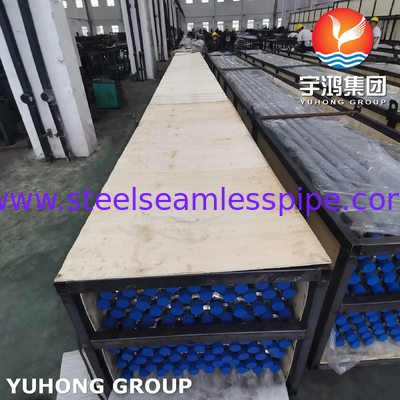

| Packaging Details: | Ply-wooden Case with Iron Frame |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T |
| Material: | Stainless, Carbon Steel | Type: | Embedded Fin Tube |
|---|---|---|---|
| NDT: | HT/ECT | Application: | Heat Exchanger |
| High Light: | Bonding Test Embedded Fin Tube,2.5mm Carbon Steel Finned Tube |
||
ASTM A179 A179 CARBON STEEL EMBEDDED FIN TUBE PLAIN END
Description:
The embedded fin design offers several advantages over other types of finned tubes. It provides a strong mechanical bond between the fins and the tube, which makes it more resistant to damage from external forces such as vibrations and impacts. The embedded fins are also less likely to loosen or detach from the tube over time, which can occur with other types of finned tubes.
Embedded finned tubes are commonly used in heat exchangers for applications such as power generation, chemical processing, and HVAC systems, where high heat transfer rates are required. They can be manufactured using a variety of materials, such as carbon steel, stainless steel, copper, and aluminum, depending on the specific requirements of the application.
Manufacturing ProcessEmbedded finned tube is a type of finned tube where the fins are made by embedding a strip of metal into the outer surface of the tube. The metal strip is usually made of aluminum or copper and has a series of fins attached to it. The strip is then inserted into a groove that is machined into the outer surface of the tube and the groove is then filled with a high-temperature alloy, typically an aluminum or copper alloy.
Acceptance Criteria
Approved drawing and the delivery conditions (TDC) of clients.
Additional Services
Tube swaging, elbows, bends(90° / 180° or as per client's design).
Quality Tests
Hydrostatics Test; Eddy Current Test; Bonding Test
Delivery Condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of Square or Rectangualr Fin Tube.
Applications:
Specifications:
| Items | General Materials | Popular ASTM /ASME Materials |
| Core Tube Material | Carbon Steel Alloy Steel Heat Resistant Steel, Stainless Steel |
1. Carbon Steel: A106 / A179 /A192 / A210 etc... 2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 etc... 3. Alloy Steel: P5,T5,P9,T9,T11,T22 |
| Fin Material |
Carbon Steel Stainless Steel |
1. Carbon Steel |
Dimensions Data Sheet We're Supplying.
| General Descriptions of H-fins | Popular Specifications we make |
| Tube OD(mm) | 25mm to 73mm |
| Tube Wall thickness(mm) | 2.5mm Min. |
| Tube length(mm) | 18000mm Max. |
| Fin thickness(mm) | 1.5mm to 3.5mm |
| Fin pitch(mm) | 10mm Min. |
| Please email us for more information. | |
