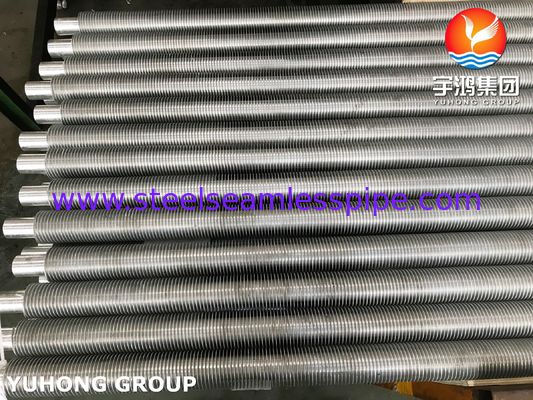

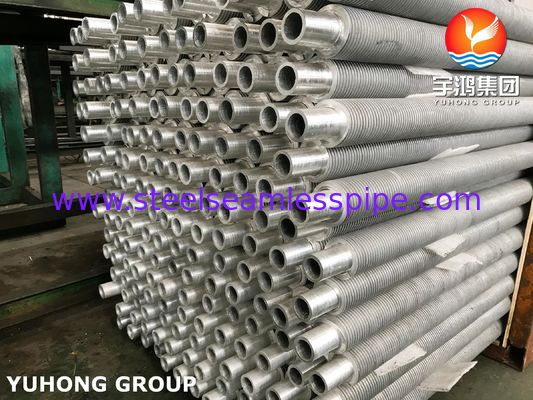

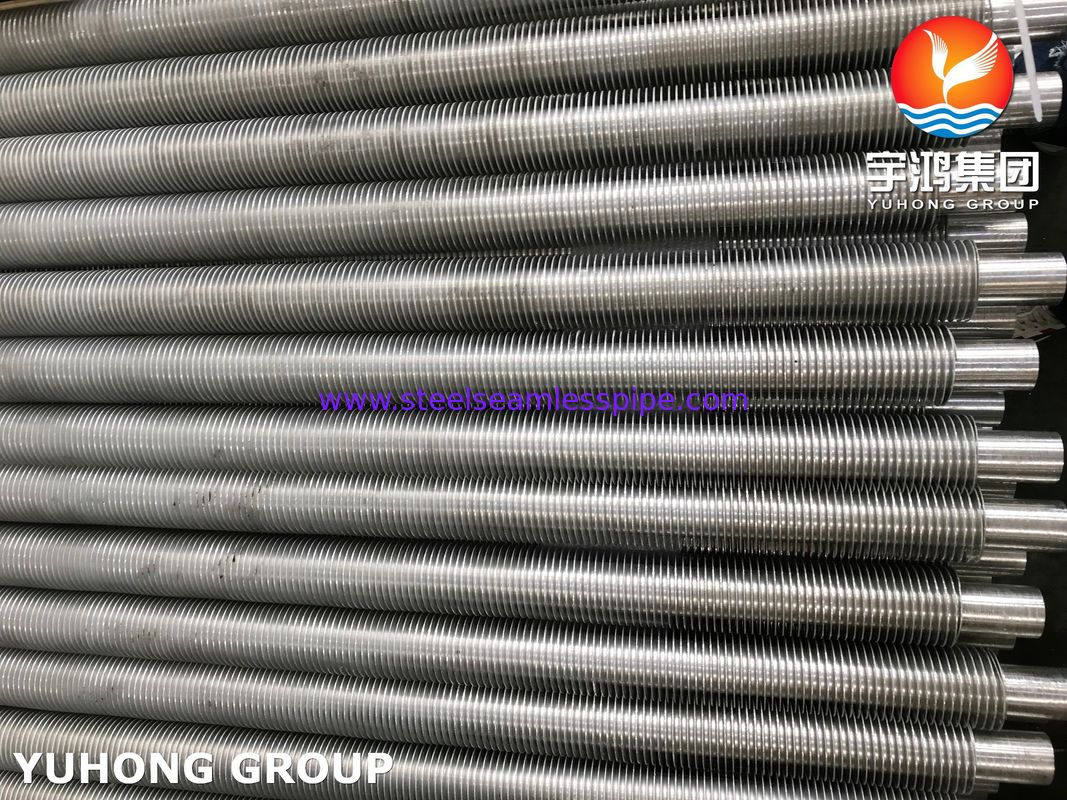

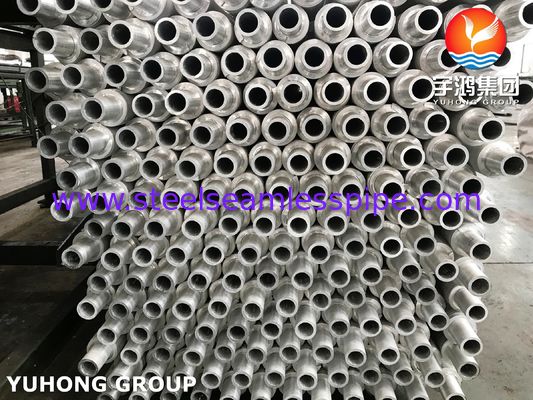

ASTM A269 TP304 Extruded Finned Tube
ASTM A269 TP304 extruded finned tube is widely used in heat exchangers, air coolers, condensers and energy recovery systems requiring high thermal efficiency and long-term corrosion resistance.
The product is manufactured by mechanically extruding aluminum fins over a stainless steel base tube, forming an integral and tight fin structure with excellent heat transfer performance. Compared with welded fin tubes, extruded fin tubes provide stronger fin bonding strength, improved anti-corrosion capability and longer service life under demanding operating conditions.
TP304 stainless steel base tube offers reliable resistance to oxidation and moisture corrosion, while the aluminum fin material significantly increases heat dissipation area and thermal conductivity. This combination makes the product suitable for petrochemical plants, power stations, HVAC systems, marine engineering and industrial cooling applications.
Custom fin pitch, fin height, tube diameter and tube length are available according to project requirements.
| Parameter |
Specification |
| Product Name |
Extruded Finned Tube |
| Manufacturing Standard |
ASTM A269 / ASTM A213 |
| Base Tube Material |
TP304 / TP304L / TP316L |
| Fin Material |
Aluminum 1100 / Aluminum 1060 |
| Tube Diameter |
8mm – 51mm |
| Fin Pitch |
1.6mm – 10mm |
| Fin Height |
≤17mm |
| Fin Thickness |
0.2mm – 0.4mm |
| Tube Length |
Customized |
| Fin Type |
Extruded Fin |
| Surface Treatment |
Bright Annealed / Pickled |
| Application |
Heat Exchanger / Air Cooler / Condenser |
| Origin |
China |
Product Advantages
-
Excellent heat transfer efficiency due to high-density aluminum fins
-
Strong mechanical bonding between fin and tube
-
Better corrosion resistance than carbon steel fin tubes
-
Suitable for high humidity and corrosive environments
-
Longer service life with reduced maintenance cost
-
Stable thermal performance under continuous operation
-
Custom dimensions available for different industrial systems
-
High mechanical strength and reliable operation
Applications
Extruded finned tubes are widely used in:
FAQ
- What is an extruded finned tube?
An extruded finned tube is manufactured by mechanically forming aluminum fins over a base tube to improve heat transfer efficiency.
- Why use TP304 stainless steel for finned tubes?
TP304 stainless steel offers excellent corrosion resistance, oxidation resistance and durability in industrial heat exchange applications.
- What is the advantage of aluminum extruded fins?
Aluminum fins provide high thermal conductivity and larger heat dissipation area, improving overall heat exchanger efficiency.
- Can you customize fin dimensions?
Yes. Fin pitch, fin height, tube length and tube diameter can all be customized according to project requirements.
- What industries commonly use extruded finned tubes?
They are commonly used in petrochemical plants, power stations, HVAC systems, condensers and industrial cooling equipment.
