Place of Origin: | CHINA |
Brand Name: | YUHONG HODING GROUP |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | U Type Finned Tube |
Minimum Order Quantity: | 500KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Box package |
Delivery Time: | 10-15 DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000Ton per month |
Bare Tube: | Stainless Steel &Carbon Steel &Alloy Steel | Finned Material: | ALU1050/1060 |
---|---|---|---|
Size: | As Per Client's Drawing | Application: | Heat Exchanger,Condenser,Air Cooling |
Package: | Wooden Box Package |

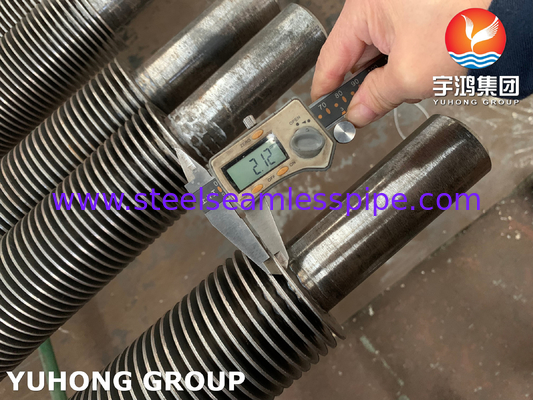

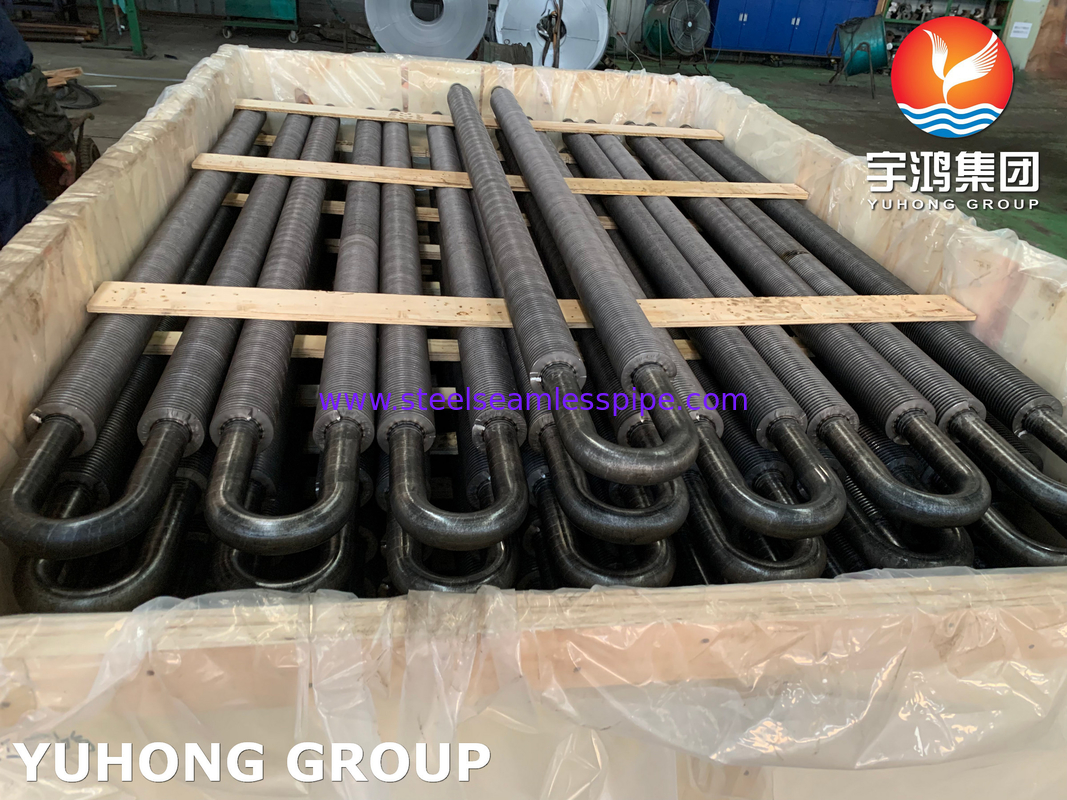

U Type Finned Tube Heat Exchanger Tube Water to Air Heat Pump Split Flow Air Conditioner Condenser Refrigeration
Name | U Type Bending Finned Tube |
Brand | YUHONG |
Standard | ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111 |
Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy |
Fin Material | Aluminium, Copper Alloy, Stainless Steel, Carbon Steel |
Fin Tube Max Design Temperature | 450°C |
Fin Tube Type | 1.Extruded fins tube |
2.Serrated fin tubes | |
3.L Type fins tube | |
4.G Type fins tube | |
5.LL Type fins tube | |
6.H Type fins tube | |
7.KL Type fins tube | |
Base pipe O.D | 8-76mm |
Fins per inch | as customer's request |
Fin depth | max 16mm |
No fin area on both side | As Customer's request. |
Product processing | Extruded,Embedded,High Frequency Welding etc. |
Ends | PE/Plain Ends, BE/Beveled Ends |
Test Requirement | Physical Property Test,Chemical Composition Analysis,Non-Destructive Test,Other Inspection and |
Test as customer's requirement. | |
Application | Air Cooler,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration,Steam to Air Heat Exchanger,superheater etc. |
Certificate | ISO9001:2008,PED/97/23/EC and China Pressure Vessel Pipeline Manufacturing License(A1 & A2) |
Capacity | 5000 tons/year |
Package | In bundles, plywood cases, wooden cases with water-proof package, etc. |
Product Origin | China(mainland). |
Trade Terms | FOB, CIF, CFR, EXW, etc. |
Payment Terms | T/T, L/C |
Nearest Port | Ningbo ,Shanghai |
Main Market | Domestic Market, North America, Western Europe, South America, Eastern Asia etc. |
