ASTM A106 Gr.B Carbon Steel U Bend Finned Tube For Heat Exchanger Tube NDE Available

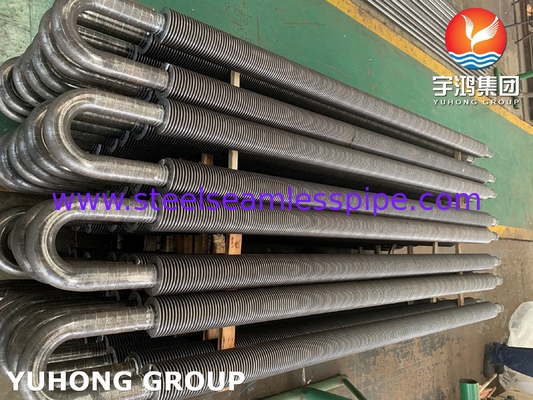

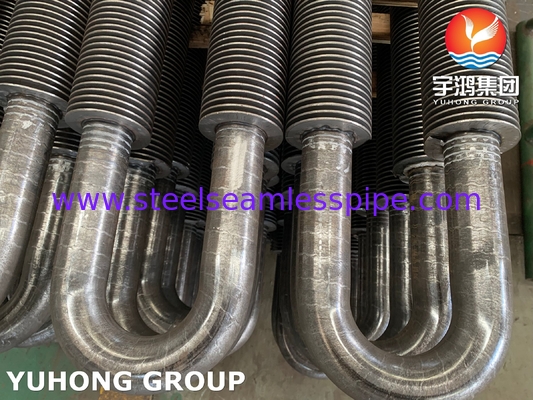

U-bend finned tubes are a type of heat exchanger tube that has a U-shape and is wrapped with fins. The U-bend shape allows for the tube to be bent in a way that optimizes its use in a heat exchanger system, while the fins provide increased surface area for heat transfer. This design makes U-bend finned tubes particularly effective at transferring heat from one fluid to another, such as in industrial applications like power generation, chemical processing, and oil refining. The fins can be made of different materials, such as aluminum, copper, or stainless steel, depending on the specific application requirements.

U-bend finned tubes offer several advantages over other types of heat exchanger tubes, including:

Increased Heat Transfer Efficiency: The fins on the outside of the U-bend finned tube increase the surface area available for heat transfer between the fluid flowing inside the tube and the fluid or gas flowing on the outside. This enhanced surface area allows for more efficient heat transfer, making U-bend finned tubes an effective solution for applications where high heat transfer rates are required.

Reduced Size and Weight: Because U-bend finned tubes are designed with a U-shape, they can be arranged in a compact array, which helps to reduce the overall size and weight of the heat exchanger system.

Improved Strength and Durability: The U-bend design of these tubes makes them more resistant to mechanical stress, such as vibration and thermal expansion, which can lead to failure in other types of heat exchanger tubes.

Customizable Design: U-bend finned tubes can be manufactured in a variety of sizes, materials, and configurations to meet specific application requirements. This flexibility allows for greater customization and optimization of heat exchanger systems.

ASTM A106 covers several grades of carbon steel pipes, including Grade A, Grade B, and Grade C. The different grades have varying levels of chemical composition requirements, mechanical properties, and testing requirements.

Grade A is the lowest grade and has the least amount of requirements, while Grade B is the most commonly used grade and has stricter requirements. Grade C has higher requirements than Grade B in terms of tensile strength, yield strength, and elongation.

Overall, A106 seamless carbon steel pipes are widely used in various industries due to their high-temperature resistance, durability, and corrosion resistance.

Application:

The U-bend finned tube has a wide range of applications in different industries, including:

Heat Exchangers: U-bend finned tubes are commonly used in heat exchangers for transferring heat between fluids or gases. They are particularly effective at transferring heat in high-temperature applications such as power generation, chemical processing, and oil refining.

Boilers: U-bend finned tubes are used in boilers to increase the heating surface area and improve heat transfer efficiency. This can help to reduce fuel consumption and improve overall boiler performance.

Air Conditioning and Refrigeration: U-bend finned tubes can be used in air conditioning and refrigeration systems to improve heat transfer and increase energy efficiency.

Process Industries: U-bend finned tubes find application in various process industries such as petrochemicals, fertilizers, pharmaceuticals, and food processing where they are used for heat transfer applications in reactors, distillation columns, and other process equipment.

Power Plants: U-bend finned tubes are widely used in power plants for heat recovery applications in steam generators, condensers, and other heat exchange equipment.
