Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008 |
| Model Number: | ASTM A376 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons/month |
| Product: | Fin Tube | Type: | HFW FIN TUBE |
|---|---|---|---|
| Standard: | ASTM A376 | Material: | TP347H |
| Fin Material: | Carbon Steel, Stainless Steel, Aluminum, Etc | Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | Radiadores Welded Fin Tube,TP347H Welded Fin Tube,HF Stainless Steel Finned Pipe |
||

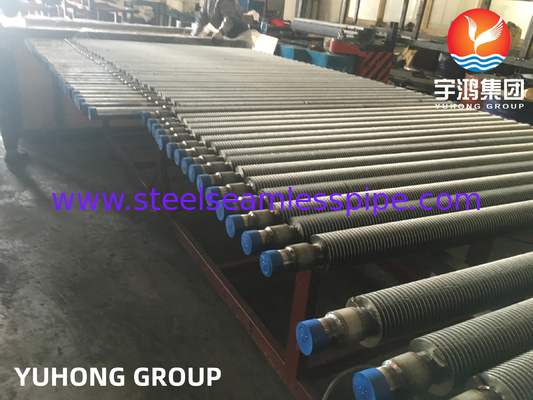

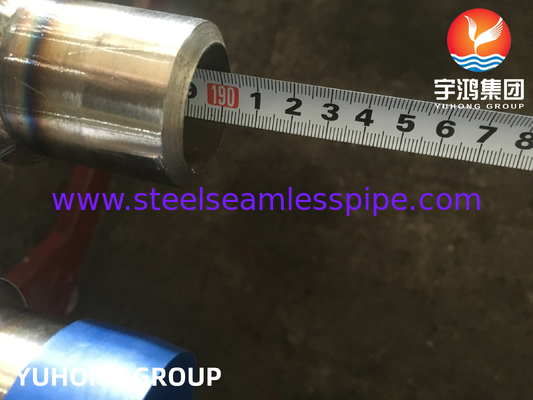

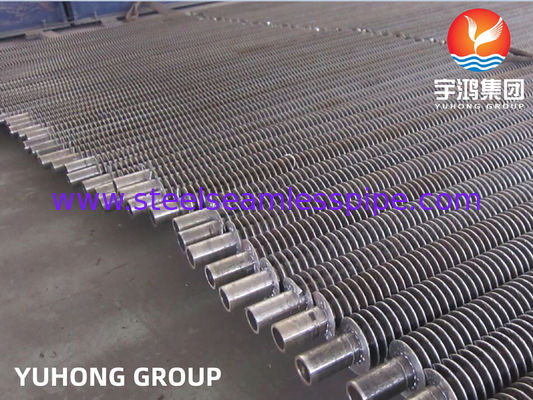

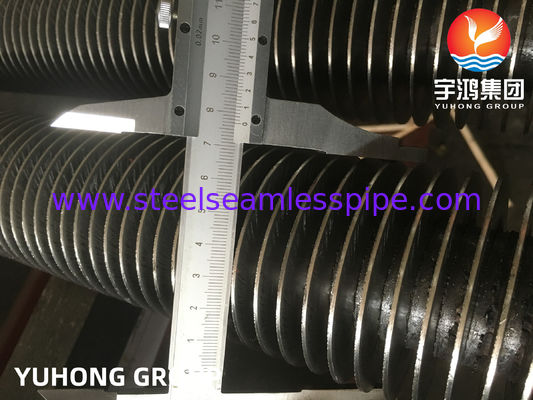

ASTM A376 TP347H SS HF Welded Fin Tube for Radiadores
This page is about ASTM A376 TP347H high frequency welded stainless steel fin tube with fin general material carbon / alloy / stainless steel , we sell these fin tubes more than 33 years and sell in over 70 countries.
YUHONG Group can handle kinds of industry projects and supply variety of extruded fin tubes in the industry. All of our products are domestically sourced, developed, and produced, that means our customers have immediate access to exactly the products they need for their particular application. What´s more, and we can make sure that you can get products with highest quality and manufacturing standards and a local, concerned, customer service presence.
These fin tubes are used in many different industries. Fin tubes can use at very high temperatures possible because the strong connection between fin and base tube prevents loosening of fin because of heat stress, oxidization, corrosion etc. HFW Fin Tube called solid type fin tube, this type fin tube can improving heat transfer efficiency much more than bare tube.
HFW Fin tube has many types: Serrated Fin Tube , Flat Fin Tube, Studded Fin Tube .
General Specifications Fin Tubes
Base Tube/Pipe Size: 15.88-219.1mm
Fin Height: 6-50mm
Fin Thickness: 0.3-3.0 mm
Fin Pitch: 1-20 fins per inch or as customer´s request
End: Plain Ends, Beveled Ends
No fin area on both side: As Customer's request and drawing
Specifications For Various Types Of Finned Tubes
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
Tube Material : Materials Carbon Steel ,Alloy Steel ,Stainless Steel and Corrosion-resistance Steel and etc.
Features Of Finned Tube
High-performance
Easy installation
Less space required
Optimized surface
Finest technology used
Less energy consumption
Increased reliability
Low maintenance
High mechanical resistance,etc
Detailes Of ASTM A376 Tube S34709
ASTM A376 This specification covers seamless austenitic steel pipe intended for high-temperature central-station service.
Chemical Composition (%)--MAX
| Grade | C | Mn | P | Su | Si | Cr | Ni |
| TP347H | 0.04-0.1 | 2 | 0.045 | 0.03 | 0.75 | 17-19 | 9-13 |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation-Longitudinal | Transverse |
| TP304L | ksi-75,MPa-515 | ksi-30,MPa-205 | 35% | 25% |
Inspections and Tests TP347H Fin Tube
| Inspections and Tests - Bare Tube | |||
| 1.Chemical Composition | |||
| 2.Mechanical Properties | |||
| 3.Flattening Test | |||
| 4.Ultrasonic Test | |||
| 5.Intergranular Corrosion Test | |||
| 6.Etching Test | |||
| 7.Transverse Tensile Test (only for bimetallic tube),etc. |
Related Industries Involved
1.Petroleum Industry
2.Metallurgical industry
3.Power industry
4.Light industry
5.Pharmaceutical industry
6.Chemical industry
7.Food industry
Application
1.Boilers / Air Perheaters
2.Economizers
3.Waste Heat Recovery
4.Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
5.Heat Exchanger / Super Heaters / Fired heaters / HRSG
6.Heat Pipe Technology
