Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
Model Number: | ASTM A179, ASME SA179+AL1060 |
Minimum Order Quantity: | 500 KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
Delivery Time: | 5 - 90 Work Days |
Payment Terms: | T/T, L/C |
Supply Ability: | According to Clients' Requirement |
Tube Standard: | ASTM A179, ASME SA179 | Fin Material: | Aluminum 1060 |
---|---|---|---|
Tube Material: | Carbon Steel,Stainless Steel,Alloy Steel | Fin Material: | Aluminum,Copper,carbon Steel |
Fin Height: | 0mm-16mm | Tube Length: | 18 Meters Max |
Fin Pitch: | 2-14mm | Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling |
High Light: | Aluminum 1060 Carbon Steel Fin Tube,Carbon Steel Extruded Fin Tube,Heat Exchanger Tube ASTM A179 |

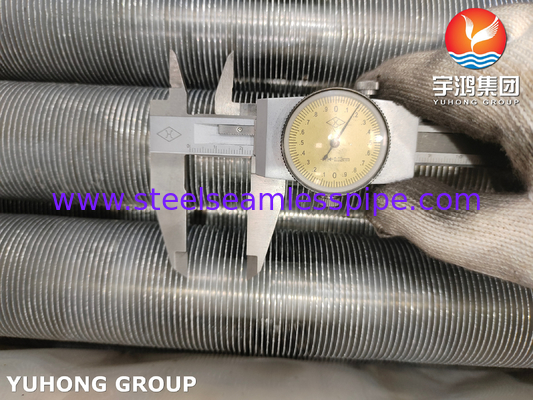

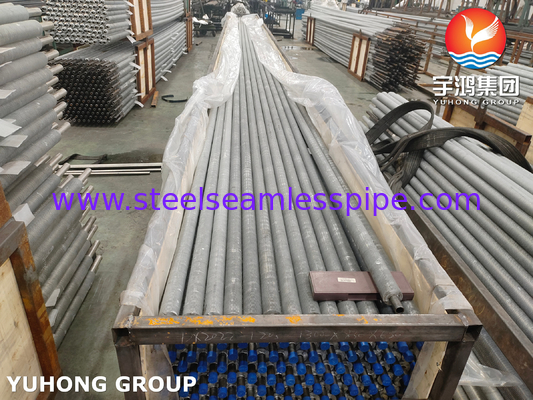

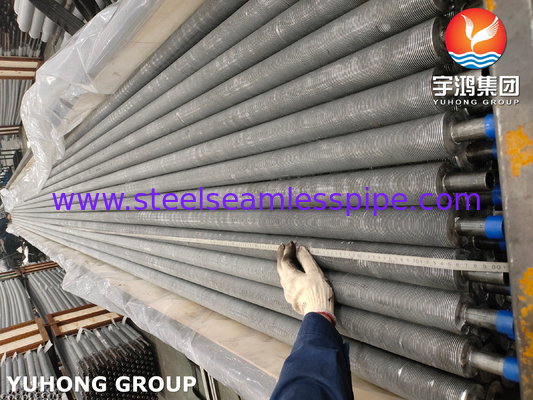

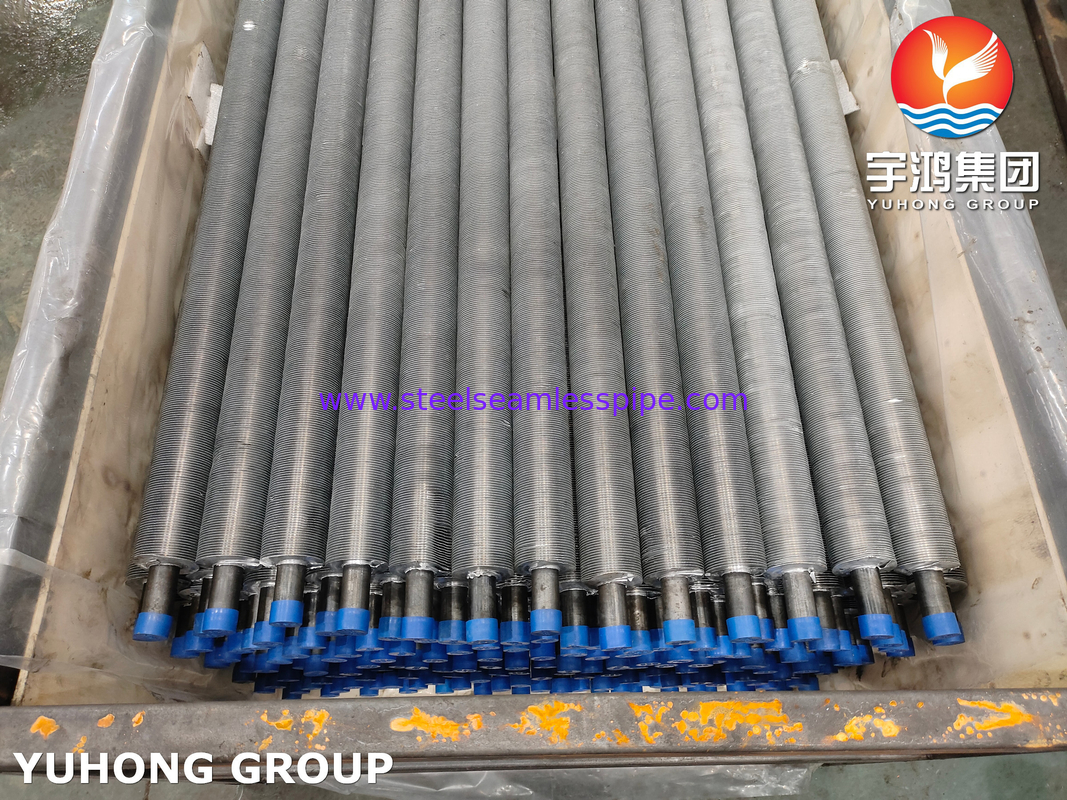

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
Fin Tubes are a type of heat exchanger tubes. They are widely used in air-cooled type heat exchangers where the exchange of heat takes place between gas flowing on the Fins and the fluid flowing inside the Fin Tubes. The main purpose is to increase the surface area to facilitate more exchange of heat between the medium and the air. High finned tubes are also called extruded tubes. The finning is achieved by extruding the fin from the tube. Our YUHONG GROUP are professional in manufacturing various fin tubes with high qyality and suitable prices.
Chemical Composition:
Grade | C | Si | Mn | P | S |
A179 | 0.06-0.18 | 0.25 max | 0.27-0.63 | 0.035 max | 0.035 max |
Characteristics:
Anti-corrosion & Anti-wear
Low contact resistance
Excellent Stability
Anti-fouling ability
Mechanical Properties:
Tensile Strength (Mpa), min | Yield Strength (Mpa), min | Elongation (%), min | Hardness (HRB), max |
325 | 180 | 35 | 72 |
Applications:
Pharmaceutical Equipments
Chemical Equipments
Sea Water Systems
Heat Exchangers
Condensers
Pulp and Paper Plants
Power Generation
Gas Processing Plants
Chemicals Industries
Oil and Gas Systems
