Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SA249 TP304 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Tons/Month |
| Product Name: | Finned Tube | Tube Standard: | ASTM A249, ASME SA249 |
|---|---|---|---|
| Tube Material: | Stainless Steel TP304, TP304L, TP316L, Etc. | Tube OD: | 20mm To 219mm |
| Tube Thickness: | 2mm To 16mm | Application: | Air Cooler, Heat Exchanger |
| High Light: | Condenser Stainless Steel Fin Tube,TP304 Stainless Steel Fin Tube |
||

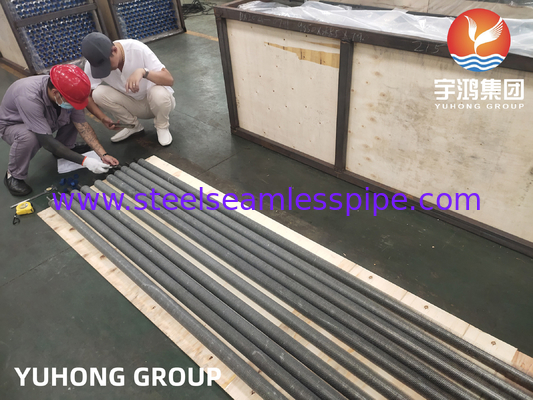

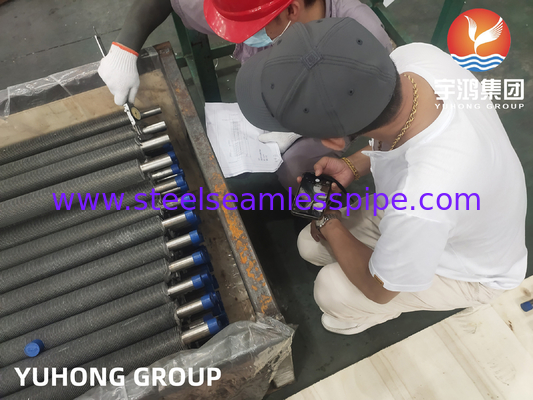

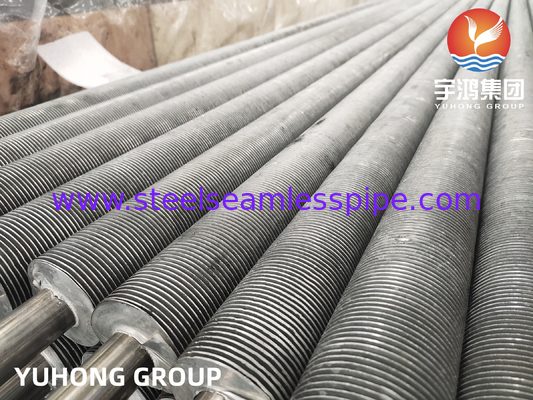

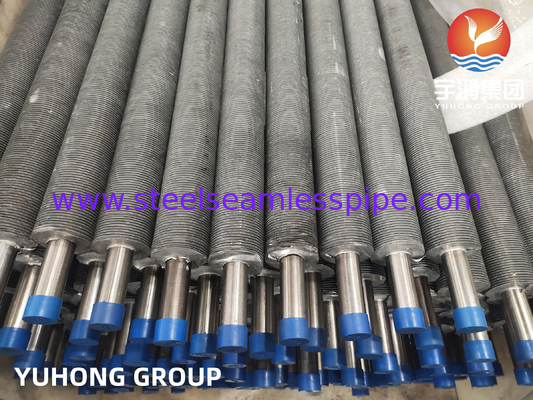

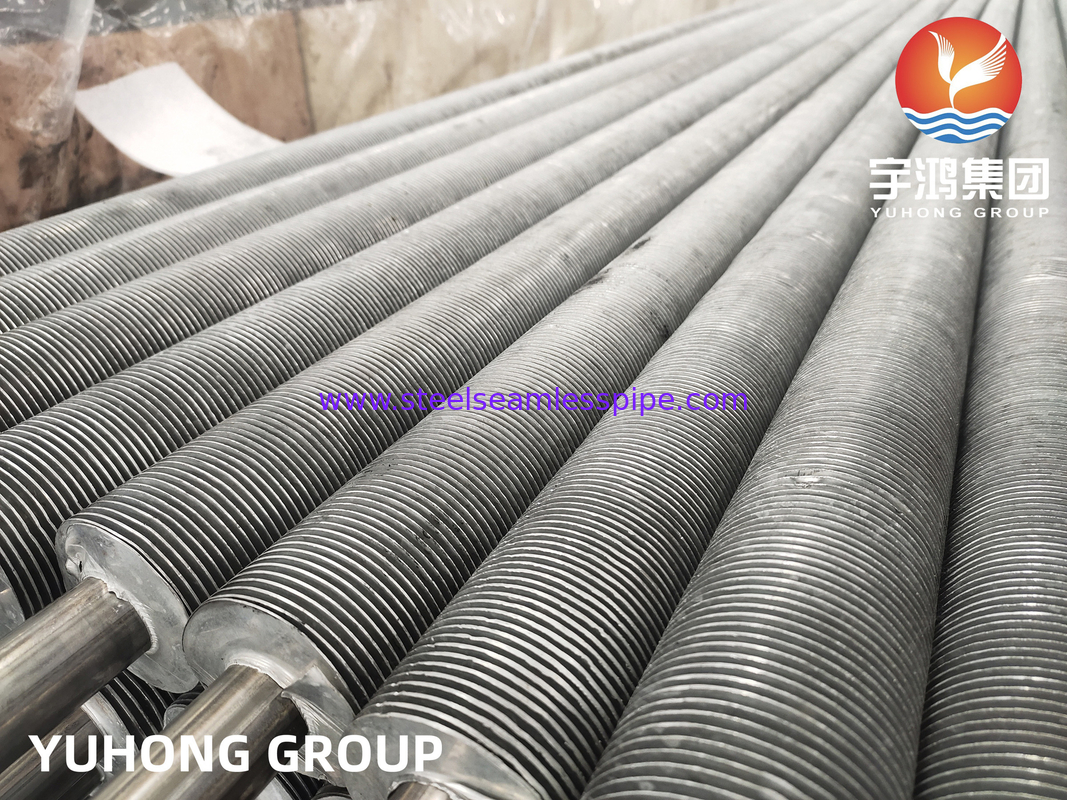

ASME SA249 TP304 Stainless Steel Fin Tube For Condenser
Advantages of Fin Tube:
1. Strong applicability, which can use steam or hot water as the heating medium.
2. Compact structure, the heat dissipation pipe is fixed with a steel porous plate frame, with compact structure and good air tightness.
3. High thermal efficiency, using a single cycle form, high heat exchange efficiency, fast heating speed.
4. Cost saving, and high cost-effectiveness.
5. Easy to install, easy to install, use, and maintain.
6. Energy saving and environmental protection, widely used in various industrial heating systems.
Stainless steel finned tubes are made of 304 stainless steel material during the production process, and are mainly used for heat exchange between two media during use. Stainless steel finned tubes are welded using reliable processes, and radiators of different specifications and sizes are processed according to customer needs to meet the different needs of each customer.
Stainless steel finned tubes have good heat dissipation, high thermal efficiency, and long service life. After using stainless steel finned tubes for a period of time, the product should be regularly inspected for deposits, rust layers, etc. If so, it is necessary to regularly clean the stainless steel finned tubes.
Technical Details/Base Tube Details
Tube Diameter : 20 mm OD Min to 219 mm OD Max.
Tube Thickness : Minimum 2 mm up to 16mm
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.
Fin Details
Fins Thickness : Min. 0.8 mm to Max. 4 mm
Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)
Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter
Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.
For a rapid quotation, plz send with following requirement:
Base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Number of pieces.
Delivery period required.
Keywords: Fin tubes, Finned tube, Finned Pipe Helical Finned Tubes, Solid fin tubes, Serrated finned tube, Helical Serrated Finned Tubes, Tubos Aletados
| *These are the most common fin/tube patterns. We have more than 20 different plate fin and tube combinations. Contact me for more information and options. | ||
| Helical Fin Surface (Tube OD – Available Helical Fin Height on the Tube) |
||
| 5/8″ – 3/8″, 1/2″ and 7/16″ | 1″ – 3/8″, 1/2″ , 7/16″ and 5/8″ | 1 1/4″ – 3/8″, 1/2″ , 7/16″ and 5/8″ |
| 15.875mm – 9.525mm, 12.7mm and 11.113mm | 25.4mm – 9.525mm, 12.7mm, 11.113mm and 15.875mm | 31.75mm – 9.525mm, 12.7mm, 11.113mm, and 15.875mm |
|
||
Application of Finned Tube in Industries
