Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008 |
| Model Number: | C70600 - O61 |
| Minimum Order Quantity: | 50PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons/month |
| Standard: | ASTM B111 | Material: | C70600 - O61 |
|---|---|---|---|
| Type: | Low Finned Tube | Tube Material: | Copper Alloy |
| Fin Material: | Copper Alloy | Length: | Or As Required |
| Application: | Heater Parts,Refrigeration Parts,Heat Exchanger,etc | Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | Copper Nickel Low Finned Tube,C70600-O61 Low Finned Tube,ASTM B111 Copper Nickel Tube |
||

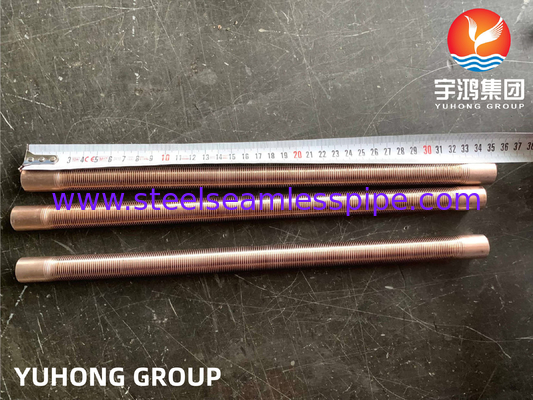

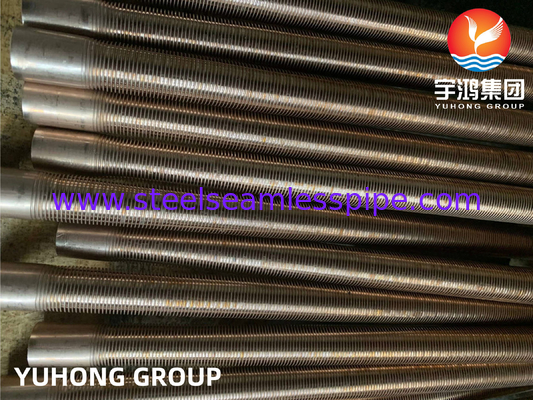

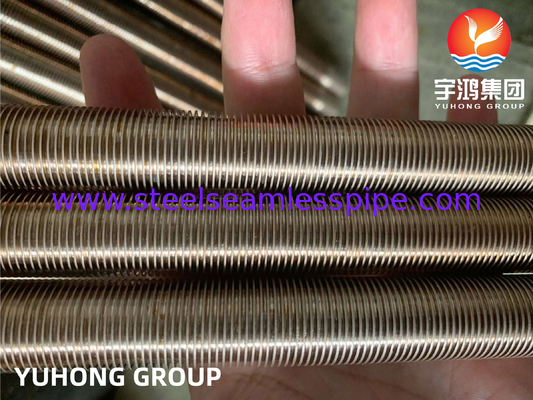

ASTM B111 90% Cu 10% Ni C70600 O61 Low Finned Tube For Radiador
YUHONG Group offers ASTM B111 C70600-O61 copper nickel steel low finned tube and we sell this type of fin tubes in over 70 countries.
Low Finned tube is a finned tube obtained through plastic cold deformation and is a type of extruded tubing that consists of short low fins.
Specifications For Types Of Finned Tubes We Can Offer
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
Material Base Pipe/Tube:
1.Stainless Steel:
ASME SA213/ASTM A213, ASME SA249/A249 ,ASME SA312/A312
TP304,304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321,TP321H, TP347, TP347H, TP904L
2.Duplex/Super Duplex Steel:
ASME SA789/A789 , ASME SA790/A790
S31803, S32205, S32750, S31500, S32304, S32900
3.Carbon Steel :
ASME SA106/ASTM A106 Gr B, Gr C, ASME SA179/ASTM A179, ASME SA192/ASTM A192, ASTM A214, ASTM A210
4.Alloy Steel :
ASME SA213/ASTM A213 T1, T11, T12, T22, T23, T5, T9, T91, T92
ASME SA335 /ASTM A335 P1, P11, P12, P22, P23, P5, P9, etc
5.Nickel Alloy Steel:
Hestalloy: C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
6.Inconel: 600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
7.Pure Nickel:
Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Copper Alloy Steel: ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Fin material:
Alloy Steel , Stainless Steel , Carbon Steel
Advantage:adding surface area to a smooth tube while maintaining the same outside diameter.
Use: in standard shell and tube baffles and tube sheets.
Method: from a smooth tube, fins with a particular geometric form without removing material; this plastic deformation causes an increment of heat exchange efficiency, and allows to reduce the heat exchanger size.
Specification of Low Fin Tube we can offer
Base Tube/Pipe Outer diameter: 12-60mm
Thickness:0.635-4.572mm
Length:0.3-25mm / 1-82ft
Fin Density: fins/inch=8-40 fins/m=315-1575
End: Plain Ends, Beveled Ends
No fin area on both side: As Customer's request and drawing
Standard/Material of Low Fin Tube we can offer
| Materials - Low Finned Tubes | |
| Carbon Steel | SA 179 / A 179 |
| Carbon Steel | SA 210 / A 210 |
| Carbon Steel | SA 334 / A 334 |
| Stainless Steel | SA 213 / A 213 |
| Duplex Stainless Steel | SA 789 / A 789 |
| Copper & Cu Alloys | SB 111 / B 111 |
| Titanium & Ti Alloys | SB 338 / B 338 |
|
For different materials please contact our sales department. |
|
| Standard Technical Specifications - Low Finned Tubes | |
| Carbon Steel | ASTM A 498 |
| Stainless Steel | ASTM A 1012 |
| Copper and Copper Alloys | ASTM B 359 |
| Titanium | ASTM B 891 |
Detailes Of ASTM B111 C70600-O61 Base Tube
ASTM B111 This specification establishes requirements for seamless tube and ferrule stock of copper and various copper alloys up to 31 ⁄ 8 in. (80 mm), inclusive, in diameter, for use in surface condensers, evaporators, and heat exchangers.
Chemical Composition max %
| Grade | Cu | Ni | Pb | Fe | Zn | Mn |
| C70600 | remainder | 9-11 | 0.05 | 1-1.8 | 1 | 1 |
Mechanical Properties
| Grade | Formar | Tensile Strength,min | Yield Strength (0.2%Offset,min) |
| C70600 O61 | annealed | ksi-40 | psi-15 |

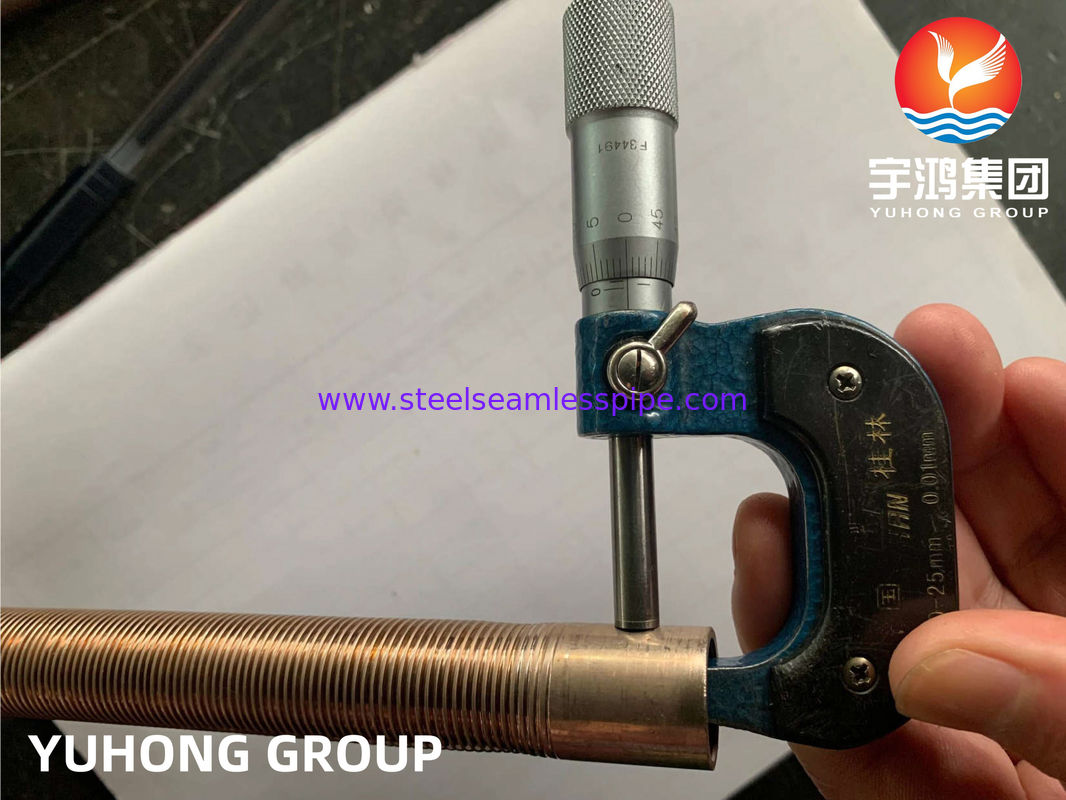

Inspections and Tests Low Finned Tubes
| 1.Chemical Composition | |||
| 2.Mechanical Properties | |||
| 3.Hydrostatic Test | |||
| 4.Pneumatic Test | |||
| 5.Boroscopic Inspection | |||
| 6.Eddy Current Test |
Application
Heat exchangers for power plants
Steam Coils
Chemical and Petrochemical industries
Air Perheaters / Air Conditioning / Air Heaters
Steam Condensers,etc
Waste Heat Recovery
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
1.Number of Pieces.
2.Base Tube: Diameter, thickness, length and material specification.
3.Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
4.Delivery period required.
