Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008 |
| Model Number: | ASTM A192 |
| Minimum Order Quantity: | 50PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-75 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons/month |
| Standard: | ASTM A192 | Material: | A192 |
|---|---|---|---|
| Type: | H Type Square TUBE | Tube Material: | Carbon Steel |
| Fin Material: | Carbon Steel | Use: | Heater Parts,Refrigeration Parts,Heat Exchanger,etc |
| Length: | As Required | Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | H Type Carbon Steel Finned Tube,Carbon Steel Fin Tube,ASTM A192 Fin Boiler Tube |
||
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
YUHONG Group offers many kinds of fin tubes. And ASTM A192 welding carbon steel H/HH type fin tube we sell in many years and sell in over 70 countries.
Specifications For Various Types Of Finned Tubes That We Can Offer
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 |
|

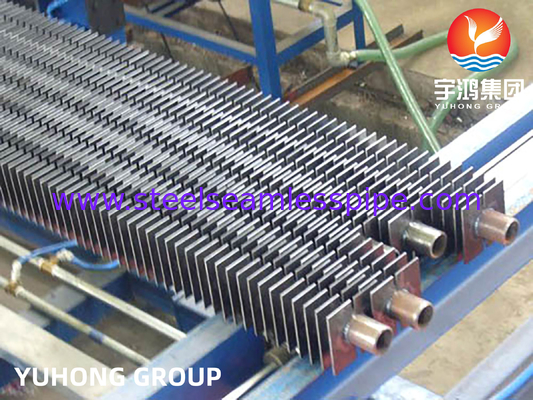

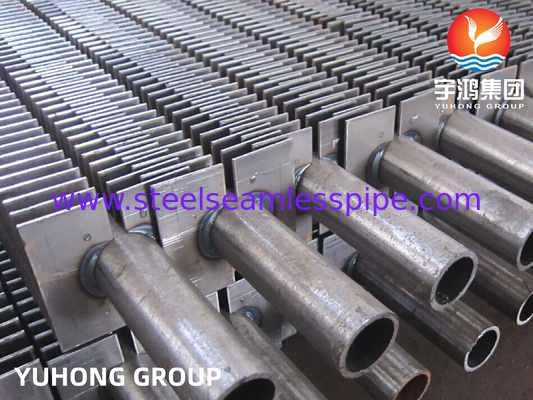

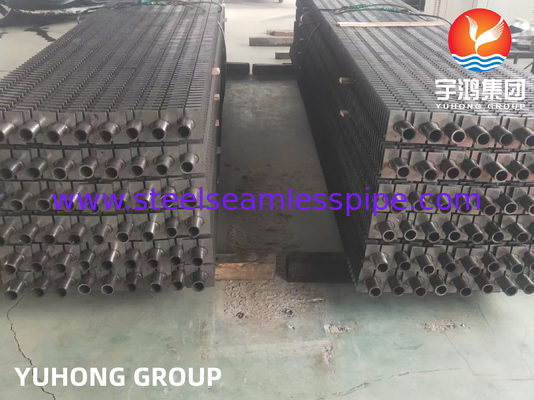

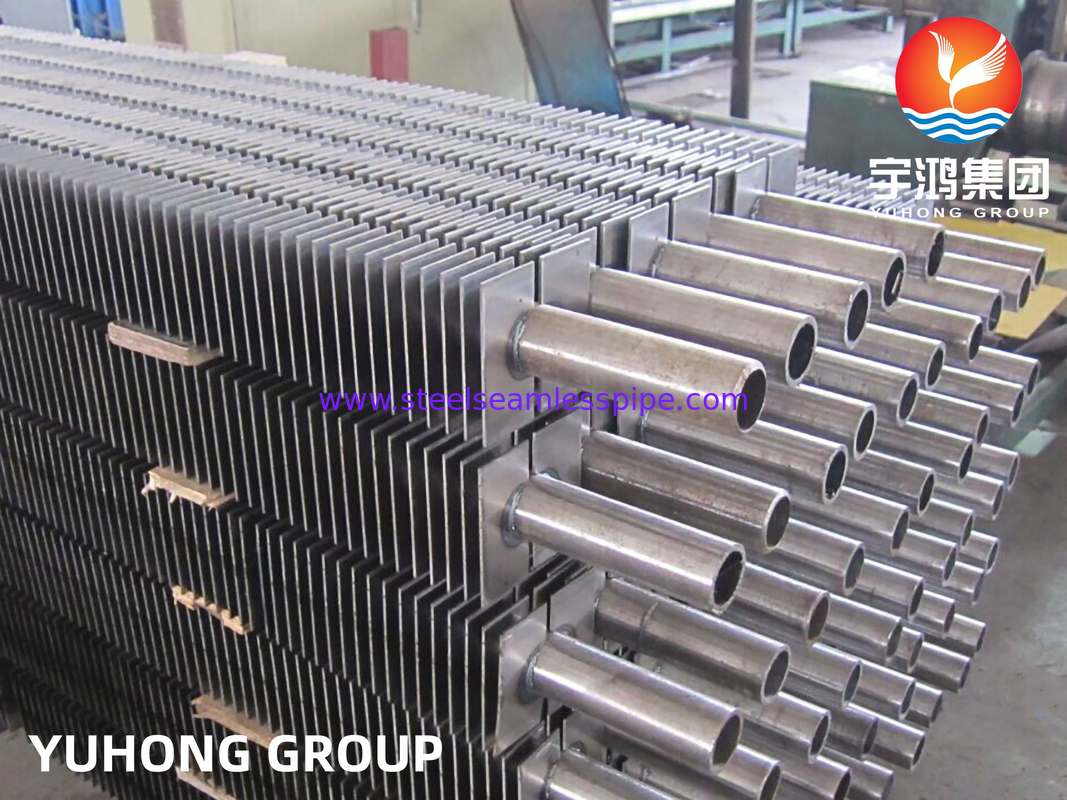

Industial boiler part heat exchanger H finned tube economizer is a kind of boiler parts.Square or Rectangular H Fins are welded on a steel base tube. Having two steel circular symmetry to be welded on fluorescent tubes to form ins positive shape much like letter "H", so we called H-fin tube. H finned tube widely used in utility boilers, industrial boilers, marine power, such as the tail of heat exchanger components.
Characteristics of H Fin Tube
Material Base Pipe/Tube We Can Offer
Stainless steel: ASME SA213/ASTM A213, ASME SA249/A249 ,ASME SA312/A312: TP304,304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321,TP321H, TP347, TP347H, TP904L
Duplex/Super Duplex Steel: ASME SA789/A789 , ASME SA790/A790: S31803, S32205, S32750, S31500, S32304, S32900
Carbon Steel : ASME SA106/ASTM A106 Gr B, Gr C, ASME SA179/ASTM A179, ASME SA192/ASTM A192, ASTM A214, ASTM A210
Alloy Steel : ASME SA213/ASTM A213 T1, T11, T12, T22, T23, T5, T9, T91, T92 ; ASME SA335 /ASTM A335 P1, P11, P12, P22, P23, P5, P9, etc
Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Copper Alloy Steel: ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Fin Material We Can Offer
Alloy Steel , Stainless Steel , Carbon Steel .
Detailes Of ASTM A192 Tube
A192 This specification covers minimum-wall thickness, seamless carbon steel boiler and superheater tubes for highpressure service.
Chemical Composition max %
| Grade | C | Mn | P | S | Si |
| A192 | 0.3 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation | Brinell Hardness | Rockwell Hardness |
| A192 | Ksi-47,MPa-325 | Ksi-26,MPa-180 | 0.35 | 137HRB | 77HRB |
Application
Heat Parts / Heat Exchanger
Steam Coils
Air Perheaters
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
Waste Heat Recovery
Air Conditioning / Air Heaters
Steam Condensers,etc
Chemical industry
Petroleum Industry
Metallurgical industry
Power industry
Pharmaceutical industry
Food industry
Light industry,etc
