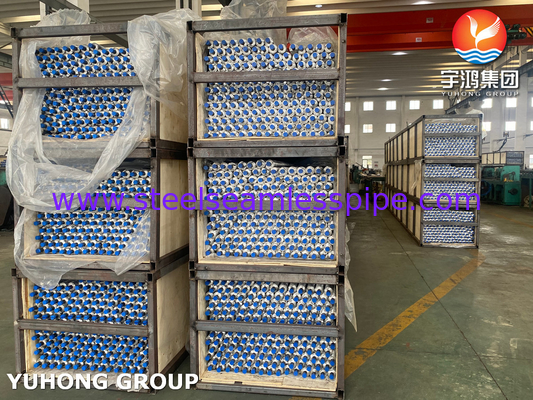

| Packaging Details: | Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Tube Material: | ASTM A210 Grade A1 | Fin Type: | Embedded |
|---|---|---|---|
| Fin Material: | Al 1060 | Application: | Heat Exchanger/Heater Parts |
| High Light: | ASTM A210 Embedded Finned Tube,Carbon Steel G Type Fin Tube,Al 1060 Embedded Fin Tube |
||

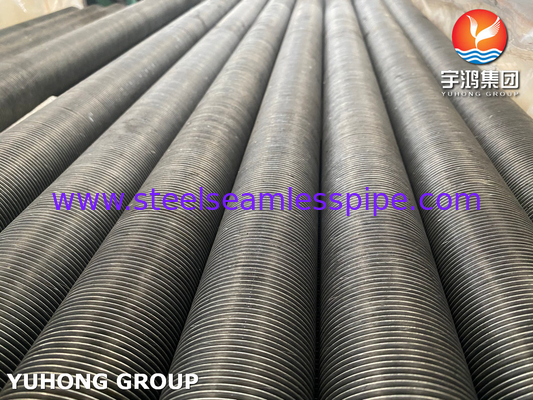

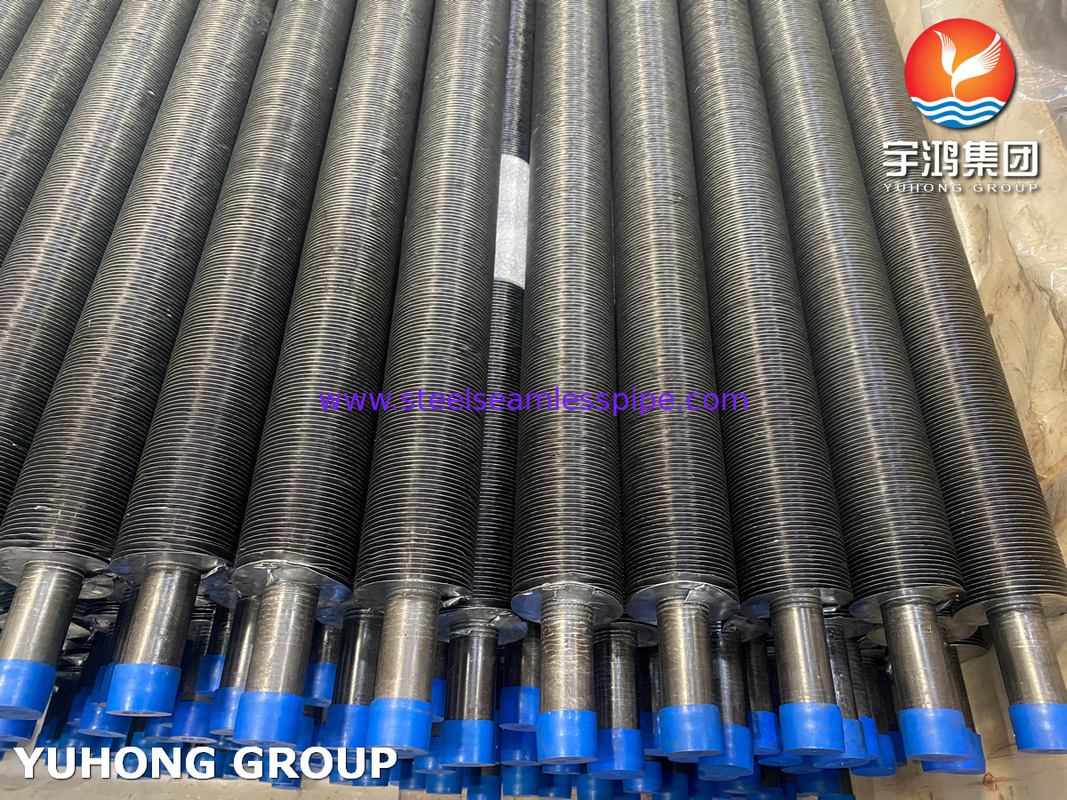

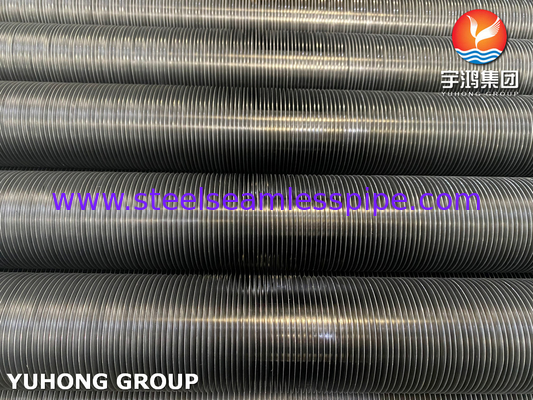

Carbon Steel Embedded G-Type Fin Tube ASTM A210 Grade A1 Al 1060
Overview:
“G” Type Aluminium Embedded Finned Tube is an important part in the heat exchanger, especially the finned tube made of aluminum, which is light in weight and easy to manufacture, and is commonly used in heat exchange devices.
The main design feature of Embedded Fin tubes involves the fin being inserted and welded into a helical groove cut into the tubes. G fins can be used in higher temperatures and are very durable.
Embedded fins are best suited for use in high thermal cycling or high temperatures and where the fin side will be subjected to regular cleaning. This type of fin comes with a major limitation being the need for a minimum wall thickness of 1.65mm to accommodate the grooves. However, the ‘G’ type fin can withstand temperatures of up to 400°C and can incorporate carbon steel fins for better conductivity.
Manufacturing Process
Specifically, the G type fin tube is a spiral groove with a certain width and depth that is pre-processed on the steel tube, and then the aluminum strip is inlaid on the steel tube on the equipment. During the winding process, due to a certain pre-tightening force, the steel strip will be tightly pinched in the spiral groove, thus ensuring a certain contact area between the steel strip and the steel pipe.
In order to prevent the steel strip from rebounding and falling off, both ends of the steel strip should be welded to the steel pipe. In order to facilitate the inlay, there should be a certain backlash between the steel strip and the spiral groove. If the backlash is too small to form an interference, the inlay process is difficult to proceed smoothly.
In addition, the wound steel belt will always have a certain rebound, as a result, the steel belt and the bottom surface of the spiral groove cannot be well joined. Inlay fins can be carried out on general equipment, and the cost is not high.
A210 Grade A1 Chemical Composition
|
Grade |
C(Max) |
Mn |
Si(Min) |
P(Max) |
S(Max) |
|
A1 |
0.27 |
Max 0.93 |
0.10 |
0.035 |
0.035 |
Mechanical Properties
|
Grade |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
Elongation(%) |
|
A1 |
≥415 |
≥255 |
≥30 |
G Type Embedded Finned Tube Quick Details:
Core tube material:
1. Carbon steel: A179, A192, SA210 Gr A1/C, A106 Gr B
2. Stainless steel: TP304/304L, TP316/TP316L/316Ti, A789 S31803/S2205
3. Copper: UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10
Fin material:
1. Aluminum (Alu.1100, Alu.1060)
2. Copper.
3. Steel
Fin type: Solid plain
Fin Tube Type: G Type Embedded
Outer diameter (OD): 16mm Min~50.8mm max.
Tube length: up to 18,000 mm.
Fin height: 16.5mm max.
Fin thickness: generally 0.4mm~0.6mm
Fin pitch: 2.1mm minimum (12FPI)
Surface Protection: Both bare ends shall be zinc or aluminum metallized by electrospray arc system coating.
Accessories: Tube support boxes, clamps or spacer boxes (materials: aluminium, zinc and stainless steel).
Applications
-Pharmaceutical Equipment
-Chemical Equipment
-Sea Water Equipment
-Heat Exchangers
-Condensers
-Pulp and Paper Industry
-Off-Shore Oil Drilling Companies
-Power Generation
-Petrochemicals
-Gas Processing
