Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SB163 Monel 400 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |

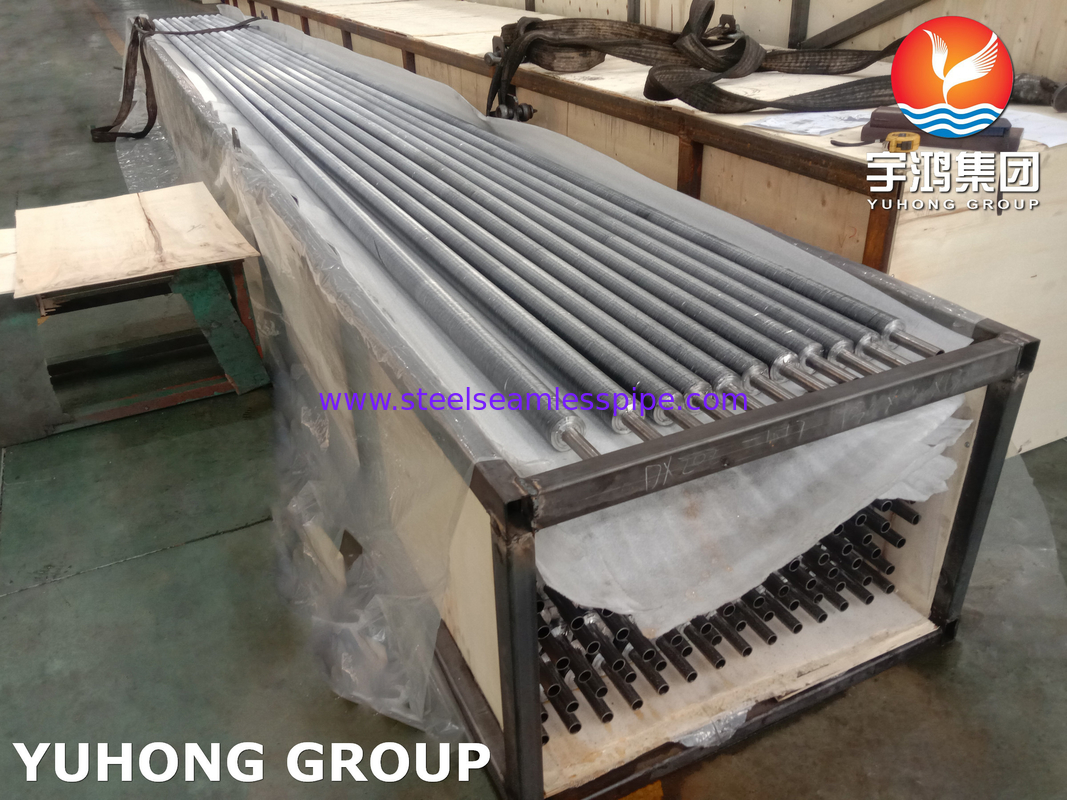

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Tons/Month |
| Product Name: | Nickel Alloy Steel Finned Tube | Standard: | ASME SB163 |
|---|---|---|---|
| Tube Material: | Monel400(N04400) | Type: | G Type/Embeded |
| Fin General Material: | Aluminum | Application: | Heat Exchanger，Boiler...... |

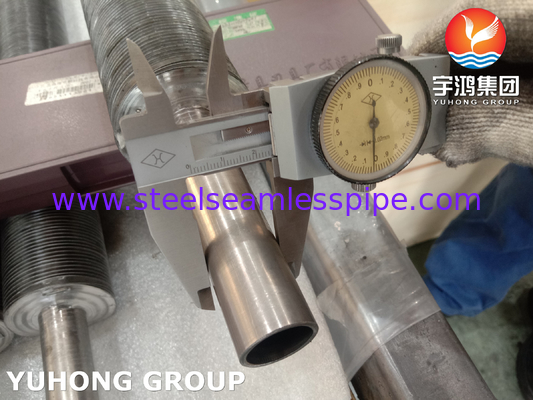

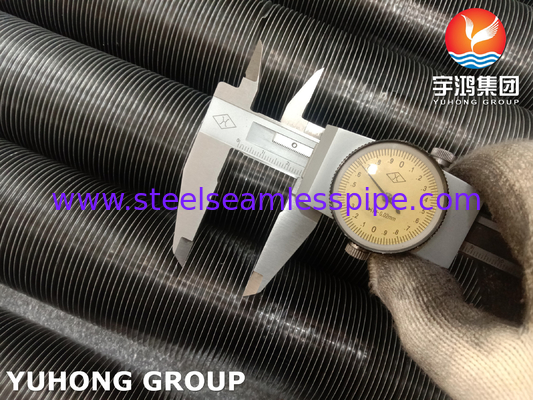

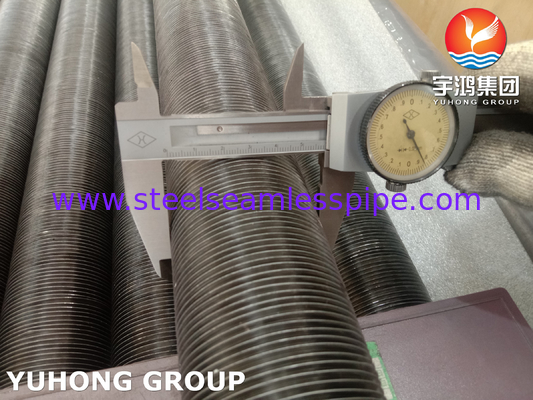

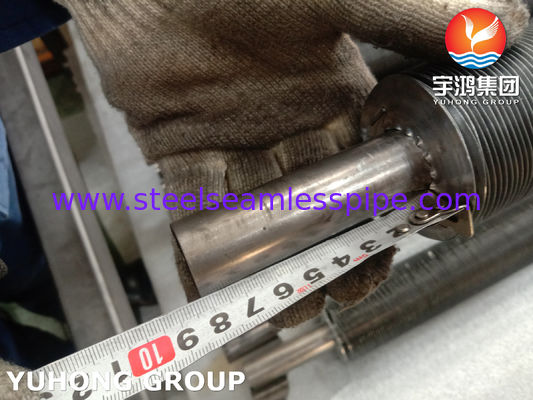

ASME SB163 Monel 400 (N04400) Nickel Alloy Tube Embedded G Type Embeded Fin Tube
Corrosion resistance:
The corrosion resistance of Monel400 is generally better than nickel copper, it is more resistant to the corrosion of reducing media than pure nickel, and is more resistant to the corrosion of oxidation media than pure copper, and has very good corrosion resistance to sulfuric acid, phosphoric acid and carbon. In particular, it is resistant to the corrosion of hydrochloric acid and has excellent corrosion resistance to hot concentrated alkali. Monel400 alloy has excellent corrosion resistance in fluorine gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives. At the same time, it is more resistant to corrosion in seawater than copper-based alloys. Monel400 is a deformable nickel-copper nickel-based alloy with good seawater corrosion resistance and chemical corrosion resistance, and strong resistance to chloride stress corrosion cracking. This alloy is one of the few alloys that can be used in fluoride. It has good oxide resistance in hydrofluoric acid and fluorine gas medium
Tube Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
Tube Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Tube Physical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.8 gm/cm3 | 0.318 lb/in3 |
Tube Pressure Rating
|
Tube O.D. |
Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Monel 400 Application areas of application are:
1. Seamless water pipes and steam pipes in power plants
2. Seawater exchangers and evaporators
3. Sulfuric acid and hydrochloric acid environment
4. Crude oil distillation
5. Use the pump shaft and propeller of the equipment in seawater
6. The nuclear industry uses equipment for uranium extraction and isotope separation
7. Manufacture pumps and valves for hydrochloric acid production equipment
8. Marine and chemical processing equipment
9. Valves, pumps, propeller shafts
10. Gasoline and clean water tank
11. Processing containers and pipes
12. Heat exchanger
Monel 400 Typical engineering applications:
1. Water supply and steam generator piping system of power station;
2, the theme of the heater and evaporator of the salt plant;
3, sulfuric acid and hydrofluoric acid alkylation device;
4, industrial heat exchanger;
5. Composite plate in crude oil distillation unit;
6, offshore installation of the wave cover;
7. Shaft of propeller and pump in seawater system;
8. Uranium and isotope separation systems in nuclear fuel production;
9. Pumps and valves in hydrocarbon chlorination production;
10. MEA reboiler pipeline.
