Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A179 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 ton per month |
| Specification: | ASTM A179 | Grade: | A179 |
|---|---|---|---|
| Application: | Oil Cooler, Pre Heater, Radiator, Air Conditioner Evaporator | Type: | Low Fin Tube |
| Fin Material: | Aluminum ,Copper And Steel | Shape: | Round |
| High Light: | Air Cooler Finned Tube,Condenser Low Fin Tube,ASTM A179 Low Fin Tube |
||

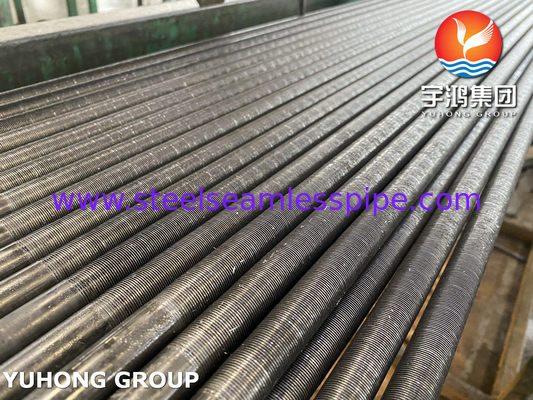

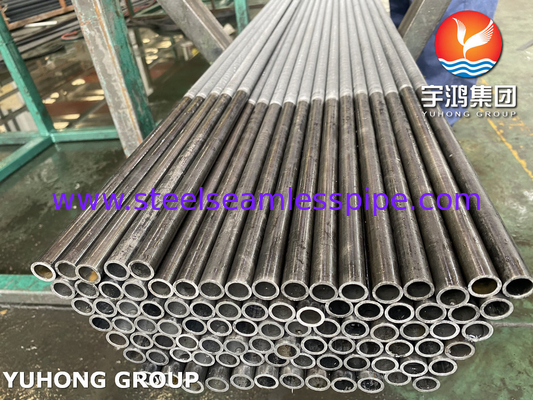

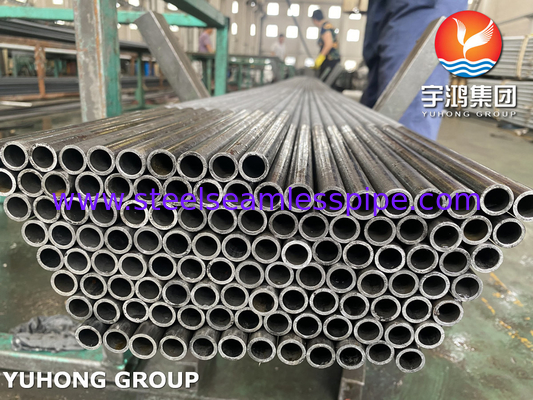

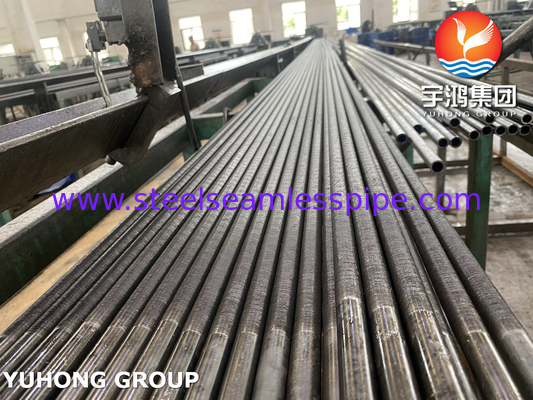

Carbon Steel ASTM A179 Low Fin Tube For Condenser And Air Cooler
What is low fin tube?
A low fin tube is essentially a single integral tube — made of a singular material — with a smaller fin of about 1/16th of an inch of fin height. The fin is in the tube wall. They are generally used in liquid to liquid or liquid to gas applications such as coolers, condensers and chillers.
Low fin tube forming short fins in tube wall that greatly increase the surface area over smooth tube. The fins are Integral formed into the tube wall so the outside diameter of the fins are not larger than the pre-finned smooth tube.
Low finned tubes can be provided with a smooth or rifled tube inside surface.Some special work condition added rifling grooves of inside the tube promote turbulant flow and better heat transfer through the tube wall.
Integral low fin tube developed as a method of increasing heat transfer performance of fluids while minimizing the size also cost of the heat exchanger. The fin tubes can improve the thermal performance of a heat exchanger without change shell size, flow arrangement or re-positioning of tube. The external surface of the tube is increased by the formation of "low fins".
The fin is produced by being rolled from the wall of the tube and is therefore integral with the tube itself. Due to fin rolling the wall thickness beneath the finned section is reduced compared with the plain ends. The bore of the fin section is slightly reduced. Most tubular materials can be finned, however hardness of the material usually determines whether the tubes suitable for finning.
A179 Chemical Composition
| Element | A/SA 179 |
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | ≤0.035 max |
| S | ≤0.035 max |
ASTM A179 Material Properties
|
Element |
A/SA 179 |
|
Tensile Strength KSI (MPa) |
47 (325) |
|
Yield Strength KSI (MPa) |
47 (325) |
|
Elongation min. % |
35 |
Equivalent Material:
| Grade | ASTM A179 / ASME SA179 | |
| UNS No | K01200 | |
| Old British | BS | CFS 320 |
| German | No | 1629 / 17175 |
| Number | 1.0309 / 1.0305 | |
| Belgian | 629 | |
| Japanese JIS | D3563 / G3461 | |
| French | A49-215 | |
| Italian | 5462 | |
Features:
--Be able to replace all air heat exchanger tube
--Compact structure, easy to install
--Convenient operation, long lifetime
--Suitable for both concentrated heating and seperated small heating place
Applications:
Condenser,Evaporator,Fluid-Cooler,Oil-Cooler,Radiator, Refrigeration,Tube-shell Heat ex-changer etc.
