Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A179 EMBEDDED FIN TUBE |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-80 Days |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 1500tons/month |
| Standard: | ASME SA179 / ASTM A179 | Type: | Seamless |
|---|---|---|---|
| Tube Material: | Carbon Steel | Fin Material: | Aluminium Steel |
| Ends: | Plain Ends/ Beveled Ends | Shape: | Round |
| Length: | Customized | ||
| High Light: | Heat Exchanger Embedded Fin Tubes,Carbon Steel G Fin Tubes |
||

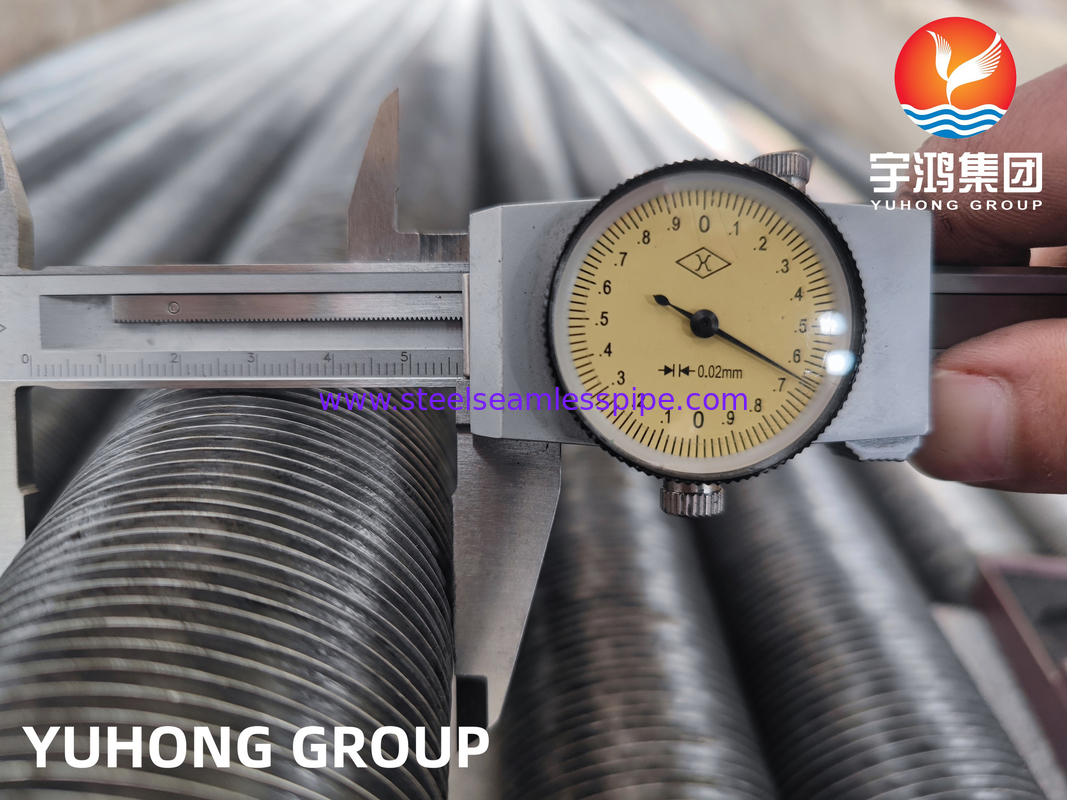

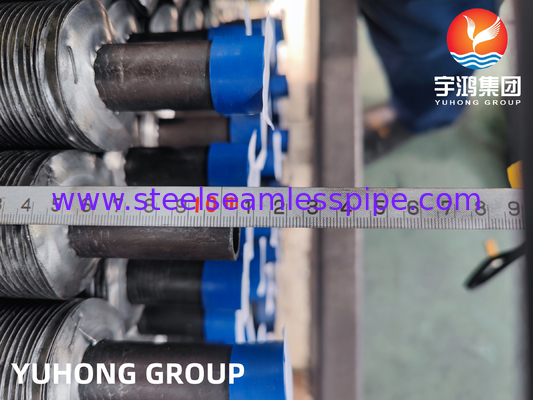

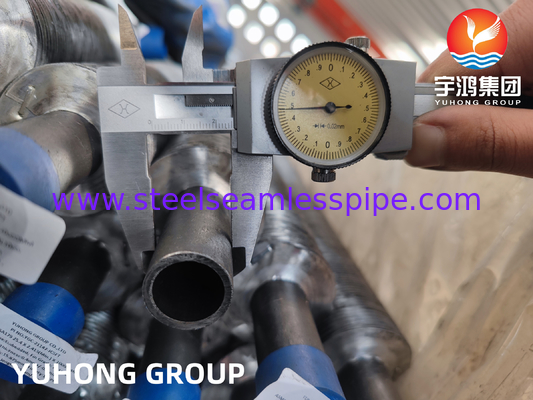

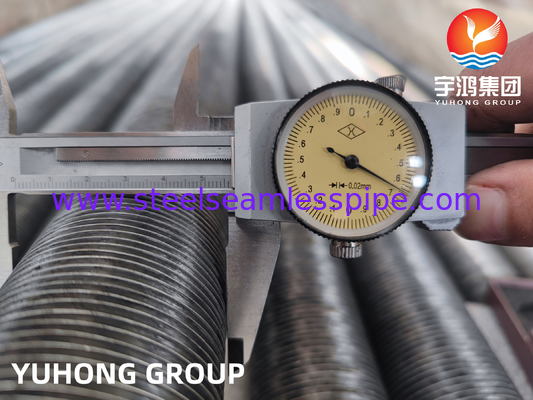

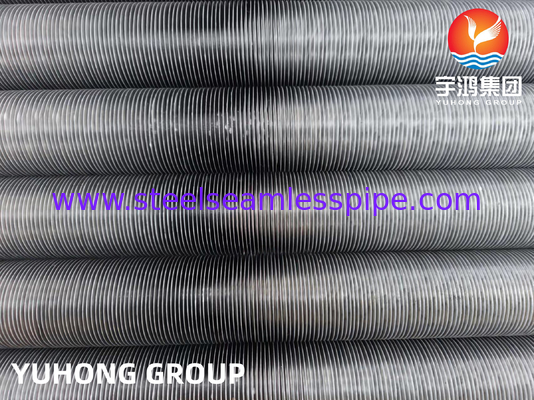

ASTM A179 Embedded G-Type AL Carbon Steel Heat Exchanger Fin Tube
Overview
ASTM A179 fin tubes are a type of heat exchanger tubes that are widely used in various applications.ASTM A179: ASTM A179 is a specification that covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for heat exchangers, condensers, and similar heat transfer apparatus. These tubes are made from carbon steel and are designed to have excellent thermal conductivity.Fin Tubes: Fin tubes are created by attaching fins to the outer surface of the base tubes. The fins can be in the form of extruded, low-fin, or solid fins. Fin tubes increase the surface area of the tubes, enhancing heat transfer efficiency.
Chemical Composition of ASTM A179
| Grade | C | Mn | S | P | |
| A179 | Min | 0.06 | 0.27 | ||
| Max | 0.18 | 0.63 | 0.035 | 0.035 |
Mechanical Properies of ASTM A179
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| A192 | ≥47(325) | ≥26(180) | ≥35 |
Wall Thickness Tolerance of ASTM A179
| Seamless, Cold-Finished Tubes | Type | Wall Thickness Tolerance | |
| OD Range | Under(-) | Over(+) | |
| 0~38.1mm (Incl.) | SMLS | 0 | 20% |
| 38.1mm~76.2mm (Incl.) | SMLS | 0 | 22% |
Uses&Application
1>.HVAC Systems: They are used in heating, ventilation, and air conditioning (HVAC) systems for efficient heat transfer between the fluids and air.
2>.Power Plants: These tubes find application in power plants for heat recovery steam generators (HRSGs), condensers, and boilers.
3>.Petrochemical Industry: ASTM A179 fin tubes are utilized in petrochemical plants for heat transfer in heat exchangers, air coolers, and oil coolers.
4>.Refrigeration Systems: The tubes are employed in refrigeration systems for efficient heat exchange and energy transfer.
5>.Industrial Processes: They can be found in various industrial processes requiring heat transfer, such as chemical processing, food processing, and pharmaceutical manufacturing.
