Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, Korea |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Studded Fin Tube , Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiable |

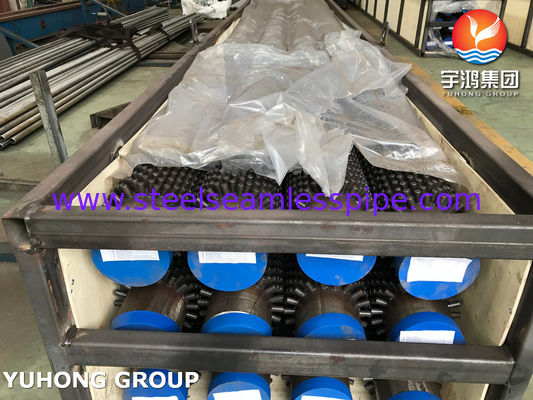

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Base Tube Grade: | ASME SA335 P9, ASTM A335 P9, ASME SA213 T9, ASTM A213 T9 | Stud Material Grade: | 1Cr13, 2Cr13, 3Cr13, 11Cr, 13Cr, SS409, SS410 , SS304 , Carbon Steel , Alloy Steel |
|---|---|---|---|

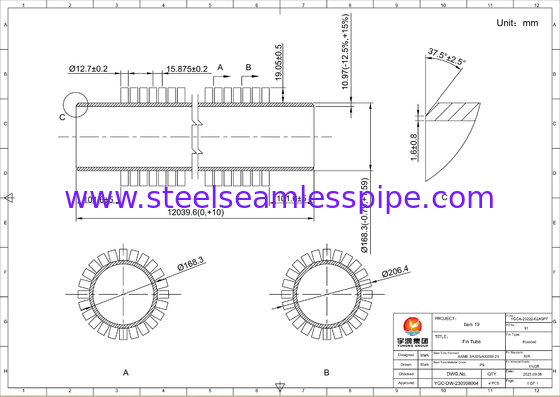

| Stud Hight: | 1/2inch(12.7mm), 5/8inch（15.875mm）, 3/4inch (19.05mm), 7/8inch(22.23mm), 1inch (25.4mm),... | Stud Dia.: | 12.7mm, 15.88mm ,... |
| Fin Type: | Solid Fin , High Frequence Weldding , HFW, .. | Application: | Oil Furnace Tube , Steam Furnace Tube, Reforming Tube |
| High Light: | Finned Tube ASME SA335,SS 409 Steam Reforming Furnace Tube,Oil Furnace Studded Fin Tube |
||

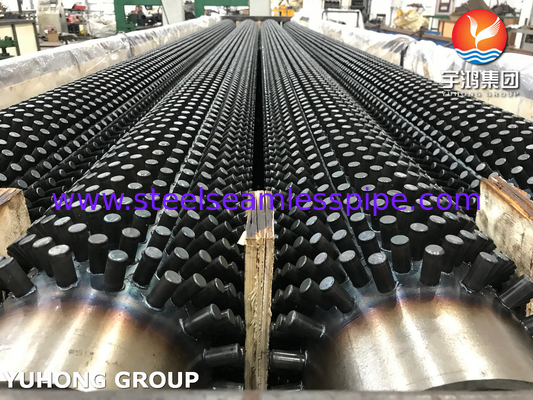

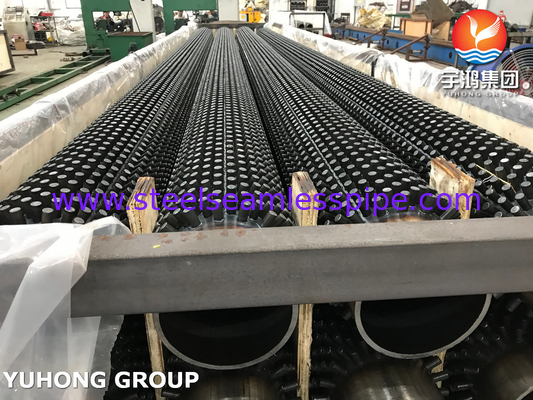

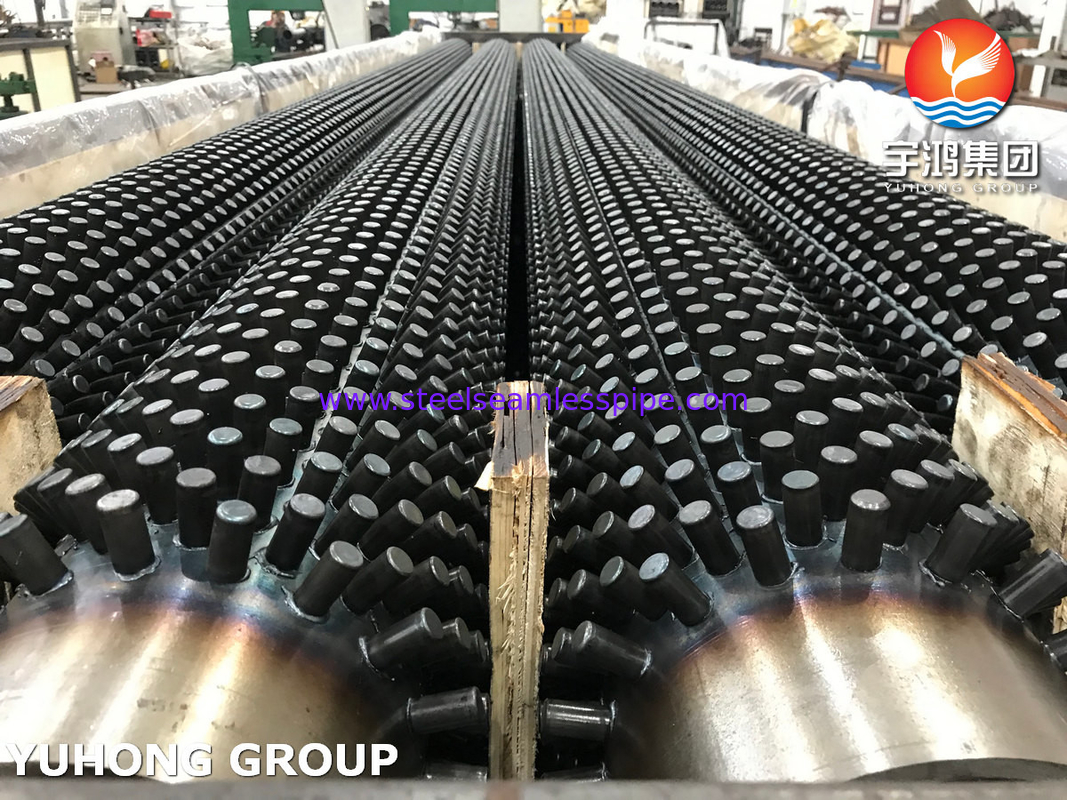

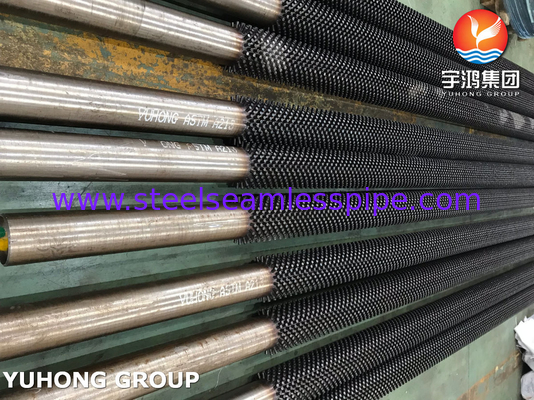

Studded Tube , ASTM A213 T9 / ASME SA213 T11 with 11Cr (SS 409) Studded Fin Tube ,Steam Reforming Furnace
YUHONG GROUP Studded tube is mainly used in petrochemical and coal chemical industry for tubular heating furnace, convection heat exchanger, air preheater, chemical equipment, heat exchange equipment. To expand the heat transfer area of the light tube by 2 to 3 times, it can improve the heat transfer coefficient of the flue gas side, improve the comprehensive thermal efficiency of the equipment, and is an energy-saving heat transfer element. Its main function is to expand the heat transfer area of the tube and improve the thermal efficiency of the heating furnace.
YUHONG GROUP ASME SA213 T9 / ASTM A213 T9 material is the U.S. standard production of high temperature with chromium-molybdenum alloy heat-resistant steel, because of its good oxidation resistance, high temperature strength and resistance to sulfide corrosion performance, widely used in petroleum refining devices high temperature, high pressure, flammable, explosive pipeline, especially the heating furnace direct heat pipe, the medium temperature up to 550 ~ 600 ℃
Studded tubes are used in fire furnaces to enhance heat transfer efficiency and improve the overall performance of the furnace. The studs on the tubes create turbulence in the flue gas flow, which helps in increasing heat transfer rates. This results in improved thermal efficiency and reduced fuel consumption.
| Fin Tube | |||||||||
| Base Tube Part | Fin Part | ||||||||
| Specification | Material Grade | Major Sizes | Material Grade | Fin Type | Fin Hight | Fin Thickness | Fin Qty | Fin Dia. | Bare Length |
| ASTM A213 ; ASME SA213; ASTM A249; ASME SA249; ASTM A269; ASME SA269; ASTM A312; ASME SA312; ASTM A376; ASME SA376; ASTM A789; ASME SA789; ASTM A790; ASME SA790 | TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP317L, TP321, TP321H, TP347, TP347H , S31803, S32205, S32750, S32760 | Tube Size: 15.875 X 1.65; 15.875 X 2.11; 15.875 X 2.77; 19.05 X 1.65; 19.05 X 2.11; 19.05 X 2.77; 25.4 X 2.11; 25.4 X 2.77; 25.4 X 3.05; 25.4 X 3.4; 31.75 X 2.11; 31.75 X 2.77; 31.75 X 3.05; 31.75 X 3.4; 38.1 X 2.11; 38.1 X 2.77; 38.1 X 3.05; 38.1 X 3.4; 44.45 X 2.11; 44.45 X 2.77; 44.45 X 3.05; 44.45 X 3.4; 44.45 X 3.81; 44.45 X 4.57; 50.8 X 2.11; 50.8 X 2.77; 50.8 X 3.05; 50.8 X 3.4; 50.8 X 3.81; 50.8 X 4.57; 57.15 X 2.11; 57.15 X 2.77; 57.15 X 3.05; 57.15 X 3.4; 57.15 X 3.81; 57.15 X 4.57; 63.5 X 2.11; 63.5 X 2.77; 63.5 X 3.05; 63.5 X 3.4; 63.5 X 3.81; 63.5 X 4.57; Pipe Size: 2 1/2" SCH40 (73.03 X 5.16); 2 1/2" SCH80 (73.03 X 7.01); 3" SCH40 (88.9 X 5.49); 3" SCH40 (88.9 X 7.62); 3 1/2" SCH40 (101.6 X 5.74); 3 1/2" SCH80 (101.6 X 8.18); 4" SCH40 (114.3 X 6.02); 4" SCH80 (114.3 X 8.56); 5" SCH40 (141.3 X 6.55); 5" SCH80 (141.3 X 9.27); 6" SCH40 (168.3 X 7.11); 6" SCH80 (168.3 X 10.97); 8" SCH40 (219.1 X 8.18); 8" SCH80 (219.1 X 12.7); Length Max.: 25M/PC; other sizes depend on customer requst | Stainless Steel: SS304, SS304L, SS316L, SS317L, SS347, SS310; SS409 (1CR12), SS410(1Cr13); Carbon Steel(CS) , Alloy Steel: ASTM A387 Gr.A, Gr.B, Gr.C; Aluminum ASTM A209 / ASME SA209 AL1060, Gr.6061; ASME SA210/ ASTM A210 AL1060 , AL1100, Gr.6061, Gr.6063, ASTM A221/ ASME SA221 AL 1060 , Gr.6061, Gr.6063 Alloy Steel: P11, P22, P5, P9 | Solid Fin : High Frequency Weldding(HFW), Serrated Fin Tube, Studded Tube /Pin Tube, Square Fin Tube, H Type Fin tube, HH type Fin tube; Embedded : G Type Fin Tube; Wound: L, LL, KL ; Extruded; Thread Fin tube ; Low Fin tube; Corrguated Fin Tube; Bamboo Tube; U bend Fin tube | 1.6mm ~60mm | 0.2mm~3.0mm | Depend on client request | 12.7mm~25.4mm | 40mm~client request |
| EN10216-5; EN10217-7; DIN 17456; DIN17457; DIN17458 | 1.4301,1.4305, 1.4306, 1.4307, 1.4571,1.4401, 1.4404, 1.4541, 1.4948, 1.4550, 1.4912, 1.4845, 1.4462, 1.4539, 1.4438, 1.4501 | ||||||||
| ASTM A335; ASME SA335; ASTM A213; ASME SA213 | T1, T11, T12, T22, T23, T5, T9, T91, T92, P1, P11, P12, P22, P23, P5, P9, P91, P92 | ||||||||
| ASTM A53; ASTM A106, ASME SA106 | GR.A, GR.B, GR.C | ||||||||
| ASTM A178; ASME SA178; ASTM A179, ASME SA179; ASTM A192; ASME SA192; ASTM A209; ASME SA209; ASTM A210; ASME SA210; ASTM A 214; ASME SA214; ASTM A333; ASME SA333 | Gr.A, Gr.B, Gr.C, A179, A192, T1a, T1b Gr.A1, Gr.1, Gr.3, Gr.6 | ||||||||
| ASTM B161; ASME SB161; ASTM B163; ASME SB163; ASTM B164; ASME SB164; ASTM B165; ASME SB165; ASTM B167; ASME SB167; ASTM B407; ASME SB407; ASTM B444; ASME SB444; ASTM B622; ASME SB622; ASTM B388; ASME SB388 | Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500. Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840. Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Titanium : Gr.2 , Gr.5, Gr.7, Gr.9 ; | ||||||||
