Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A335 P9 STUD FINNED TUBE |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Base Material: | CARBON STEEL,ALLOY STEEL | Base Tube O.D: | 38 Mm ~219 Mm |
|---|---|---|---|
| Base Tube THK: | 4.0 Mm ~20 Mm | Fin Height: | 6.0 Mm ~ 38 Mm |
| Tube Length: | Max 15 Mtrs | Package: | Frame Cases |
| High Light: | Steam Boiler Finned Tube,Studded Hfw Finned Tube,A335 P9 Finned Tube |
||
Studded HFW Finned Tube A335 P9 For Heat Exchanger Radiator Steam Boiler
Finned tubes are used wherever electricity is generated or raw material is refined and efficient cooling is required. Finned tubes are used in condensers, coolers and furnaces. The larger surface area means that fewer tubes are needed compared to the use of plain tubes. The higher efficiency of finned tubes thus enables significant space and cost savings
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8-30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |

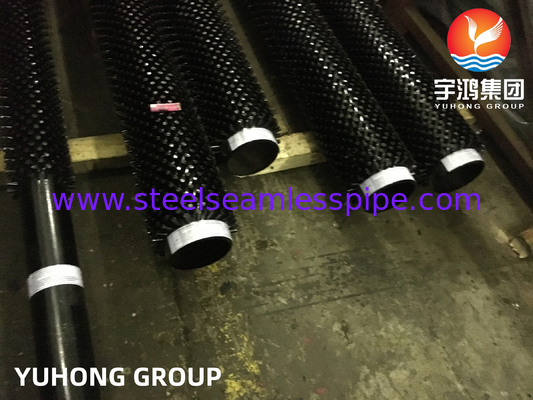

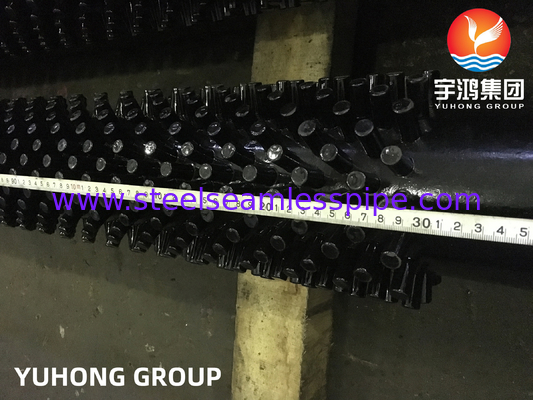

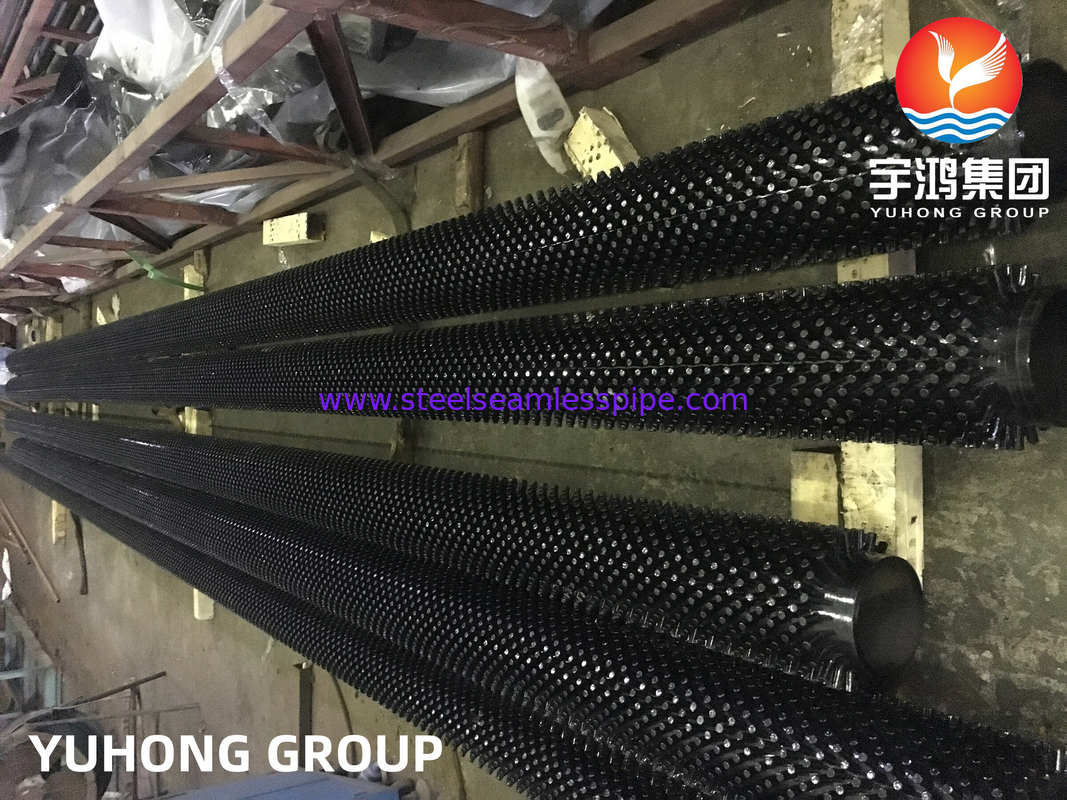

What is a Studded Tube?
Studded tubes are a type of metal tubes. These tubes have studs welded onto the metal tube.
These studs are arranged in a specific formation throughout the length of the tube.
They are often used in boilers and refineries. As they increase the surface area for higher heat transfer they are used for reheating.
Features of a Studded Tube
Uses of Studded Tubes
Steel studded tubes are used instead of finned tubes for heat transfer in the petrochemical industry, generally in furnaces and boilers where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning.
Base Tube Material:
stainless steel stud tube, carbon steel stud pipe,alloy steel studded tube.
A335 P1,P5,P9,P11, A213 T9,T11,T22,TP304,TP316/316L,TP321
A106GrB,A210 Gr A1, A210 GrC,ASME SA192/ASTM A192
ASME SA213/ASTM A213 TP304/304L TP316/TP316L TP321
TP310S TP317
Application:
Boiler,Super heater, Gas furnace burner, heat exchange equipment ,chemical equipment,heat recovery of the petrochemical industry, in areas of convection ovens, vacuum generators for chemical processing, etc.Boiler stud tube,Super heater stud tube, Gas furnace burner stud tube.
