Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS C70600 O61 (Copper-Nickel 90/10) |
| Minimum Order Quantity: | 200 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Iron Case / Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM B111, ASME SB111 | Material Grade: | UNS C70600 O61 (Copper-Nickel 90/10) |
|---|---|---|---|
| Product Name: | Integral Low Fin Tube | Fin Height: | 0mm - 1.6mm |
| Fin Pitch: | 0.6mm - 2.0mm | Tube Outer Diameter: | 10 - 38mm |
| Fin Thicness: | 0 - 0.3mm | Tube Length: | 18 Meters Max |
| Tube Material: | Carbon Steel,Stainless Steel,Copper,Alloy Steel | Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling |
| High Light: | Condensers Copper Nickel Finned Tube,Integral Low Fin Tube,Low Fin Tube UNS C70600 |
||

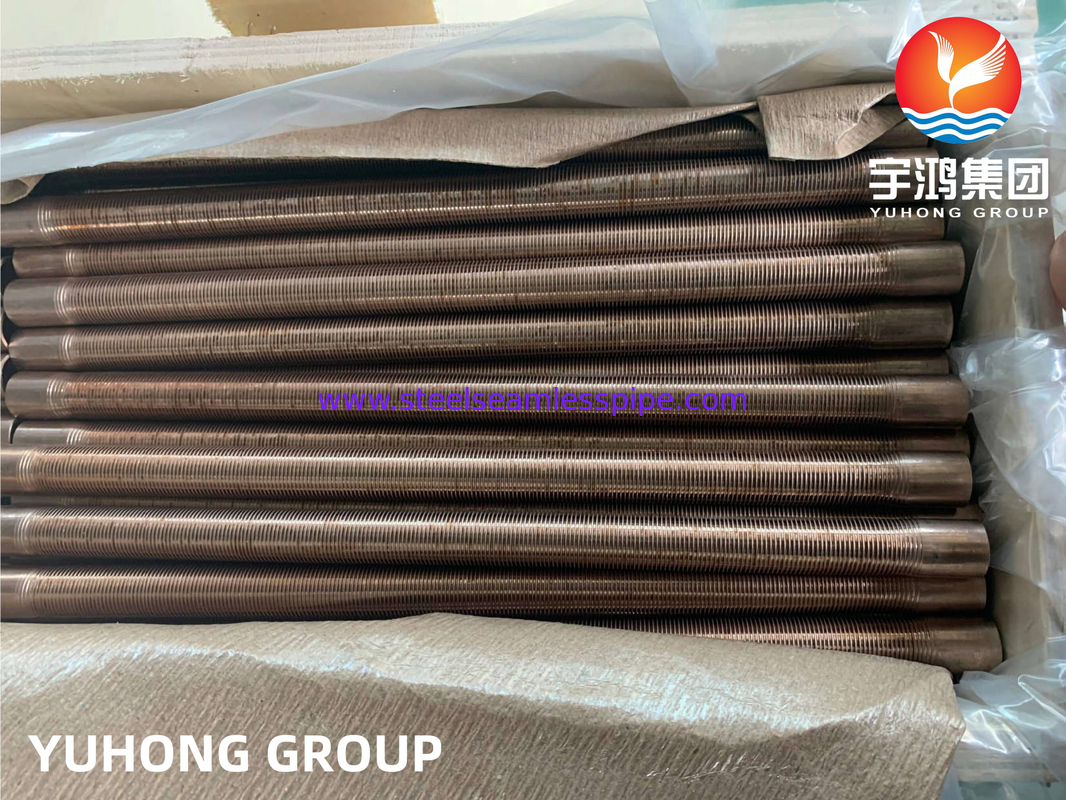

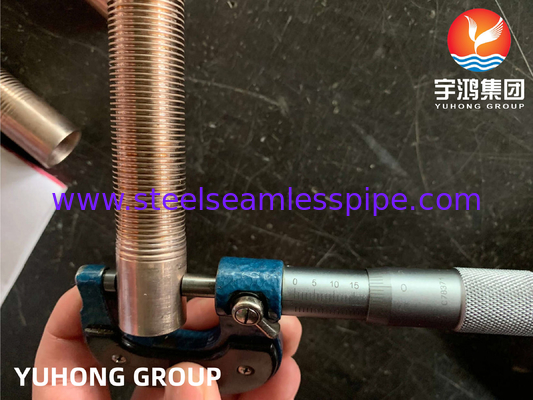

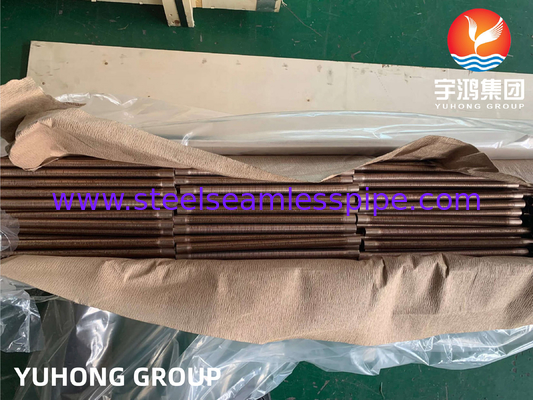

ASTM B111 UNS C70600 O61 Copper Nickel 90/10 Integral Low Fin Tube For Condensers
ASME SB111 UNS 70600, Copper Nickel 90/10, Low Fin Tubes have excellent overall strength corrosion resistance, high ductility, good toughness, excellent resistance to stress corrosion, good erosion, excellent fabrication and welding properties. Copper Nickel 90/10 Low FinTubes are used in various applications like marine systems, oil and gas, chemical and petrochemical industries, and shipbuilding equipments. They are also widely used for handling seawater in all types of heat exchanger and cooling plant.

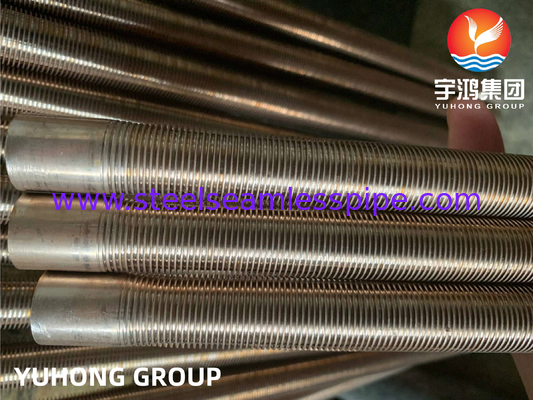

ASTM B111 UNS C70600 O61 Copper Nickel Alloy Low Fin Tubes are made to form fins with a certain height, distance and thickness on the outer surface of the base tube. Copper nickel low fin tubes are mostly used as heat exchanger elements and evaporators. Using integral low fin tube is developed as a method of increasing heat transfer performance of fluids while minimizing the size also cost of the heat exchanger. The low fin tubes improve the thermal performance of a heat exchanger without changing shell’s size, flow arrangement or re-positioning of tubes. The external surface of the tube is increased by the formation of "low fins".
Material Grade:
| Material | ASTM B111 | BS2871 | JIS H3300 | DIN1785 | GB/T 8890 |
| Copper Nickel | C70600 | CN102 | C7060 | CuNi10Fe1Mn | BFe10-1-1 |
| C71500 | CN107 | C7150 | CuNi30Mn1Fe | BFe30-1-1 | |
| C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | BFe30-2-2 | |
| C70400 | — | — | — | BFe5-1.5-0.5 | |
| Aluminium Brass | C68700 | CZ110 | C6870 | CuZn20AL2 | HAL77-2 |
| Admiralty Brass | C44300 | CZ111 | C4430 | CuZn28Sn1 | HSn70-1 |
Chemical Composition:
| Elements | Content (%) |
| Ni | 9.0-11.0 |
| Fe | 1.0-1.8 |
| Zn | 1.0 |
| Mn | 1.0 |
| Pb | 0.05 |
| Cu | Rem. |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | 80000Psi, 551Psi | 35000Psi, 241Psi | 30 % |
Applications:
Evaporators
Heat Exchangers
HVAC Industry
Electrical Industry
Constructions Industry
Automobiles Industry
Oil and Gas Coolers
Electrical Engineering Industry
Marine Engineering Industry
Pharmaceutical Equipment
Chemical Equipment
