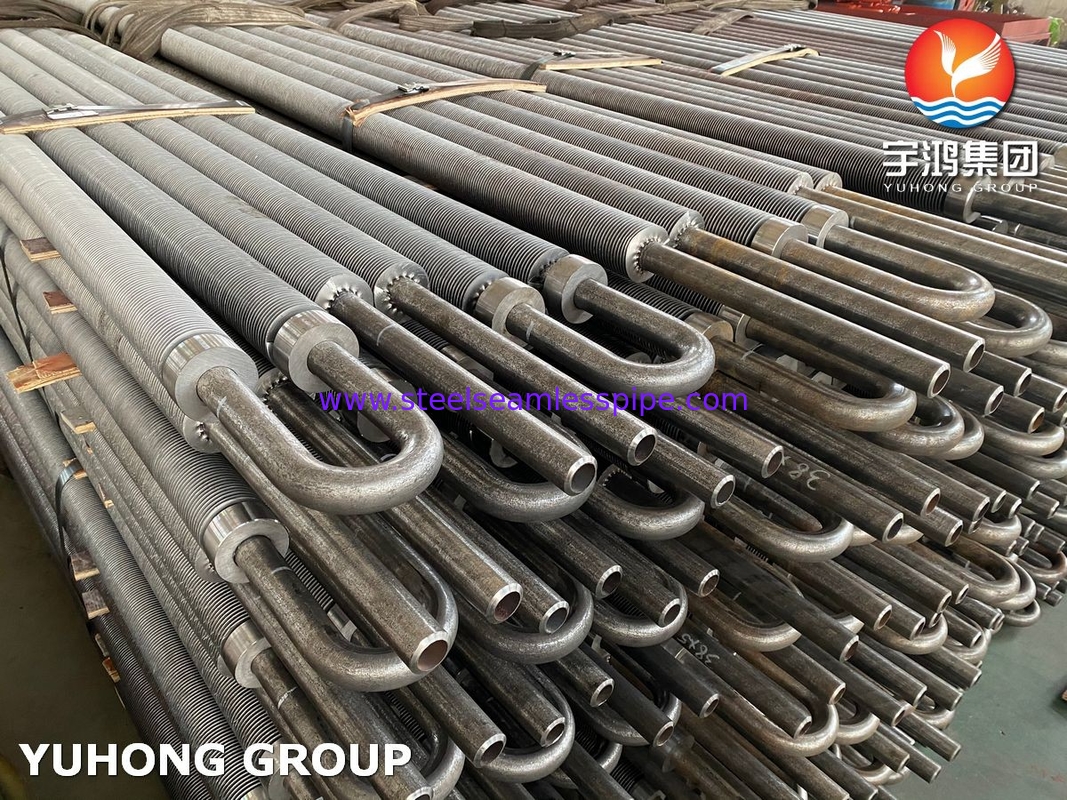

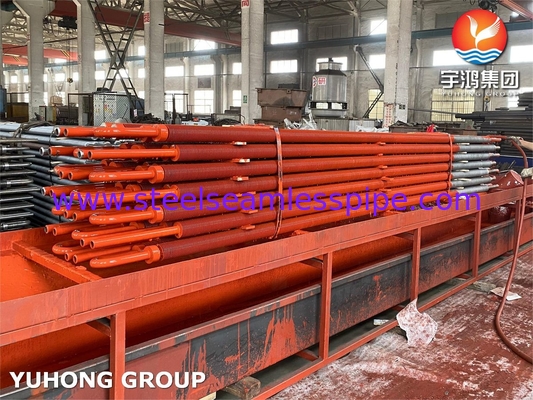

CARBON STEEL U BEND FINNED TUBE A179 A192 EXTRUDED AND STUDDED FIN

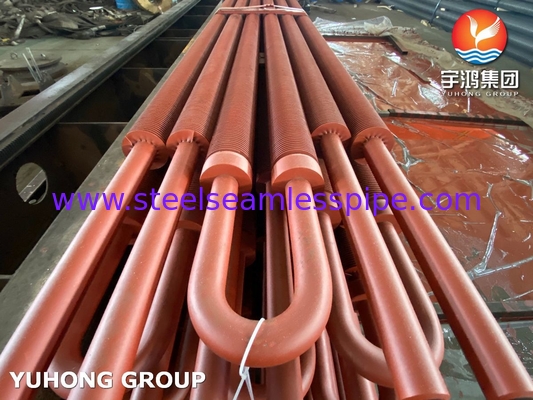

What is U Fin Tube?
A U-bend finned tube is a type of heat transfer component used in many industrial and commercial applications for eficient heat exchange. It consists of a tube that is bent in a U-shape with fins attached to its outer surface. The fins are typically made of metal, such as aluminum or copper, and are designed to increase the surface area of the tube, thereby enhancing its heat transfer performance.
How to produce U Fin Tube?
Tube prepare→Finning→Bending→Heat treatment→Inspection→Finishing→Packaging
Its important o note that the production process for U-bend finned tubes may vary depending on the manufacturer, materials used, and application
requirements, Consulting with a qualified manuacturer or engmeer with expertise in heat exchanger components can provide more detaled guidance on the specific production process for U-bend finned tubes based on your requirements. Proper manufacturing processes, quality control, and imspection are criica to ensure the fial product meets the desired specifications and performance requirements.
Technical Details/Base Tube Details
Tube Diameter : 20 mm OD Min to 219 mm OD Max.
Tube Thickness : Minimum 2 mm up to 16mm
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.
Fin Details
Fins Thickness : Min. 0.8 mm to Max. 4 mm
Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)
Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter
Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.
For a rapid quotation, plz send with following requirement:
Number of pieces,
base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Delivery period required.
Keywords: Fin tubes, Finned tube, Finned Pipe Helical Finned Tubes, Solid fin tubes, Serrated finned tube, Helical Serrated Finned Tubes, Tubos Aletados
| *These are the most common fin/tube patterns. We have more than 20 different plate fin and tube combinations. Contact me for more information and options. |
Helical Fin Surface
(Tube OD – Available Helical Fin Height on the Tube) |
| 5/8″ – 3/8″, 1/2″ and 7/16″ |
1″ – 3/8″, 1/2″ , 7/16″ and 5/8″ |
1 1/4″ – 3/8″, 1/2″ , 7/16″ and 5/8″ |
| 15.875mm – 9.525mm, 12.7mm and 11.113mm |
25.4mm – 9.525mm, 12.7mm, 11.113mm and 15.875mm |
31.75mm – 9.525mm, 12.7mm, 11.113mm, and 15.875mm |
- “L” Footed, Embedded and other helical fin attachment options are available.
- Contact me about the availability of 1 1/4″ (31.75mm) tube material
|
