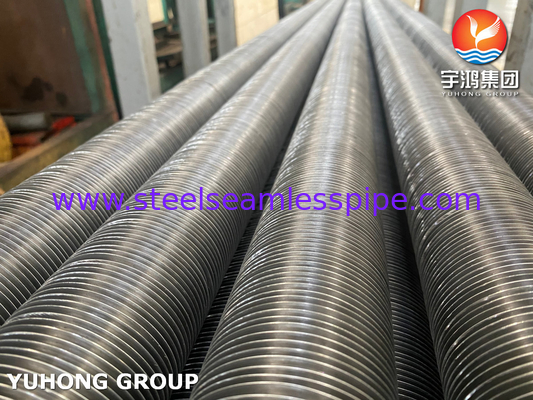

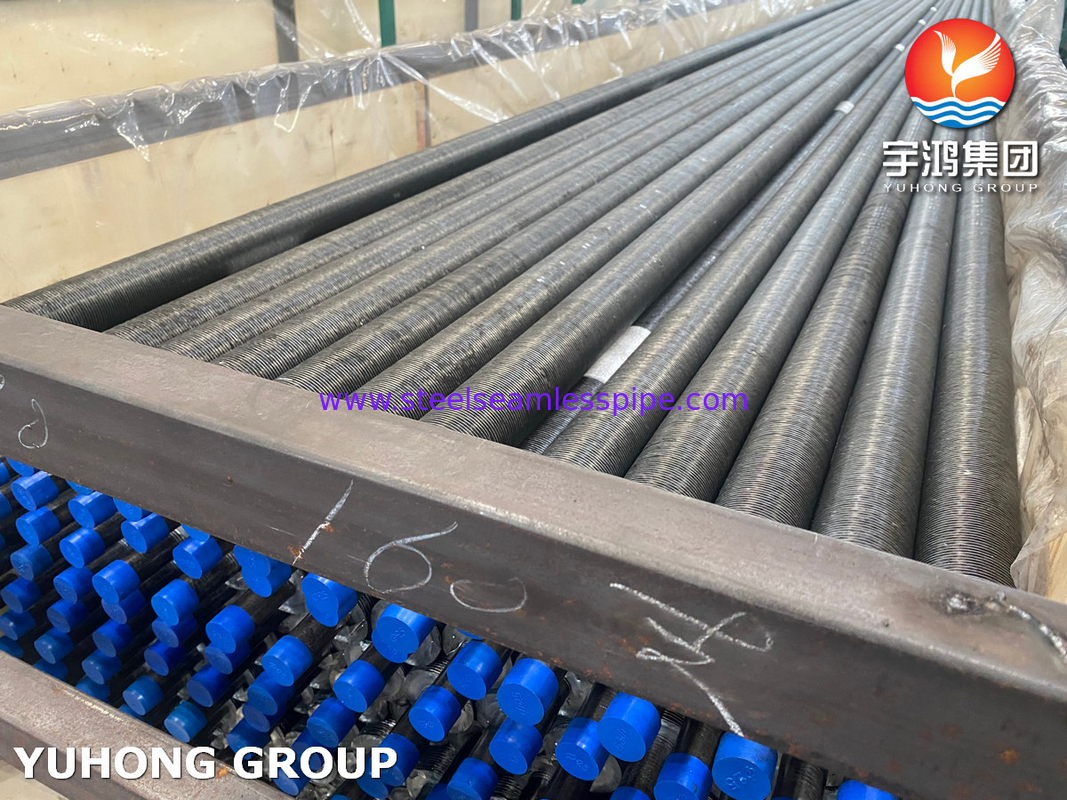

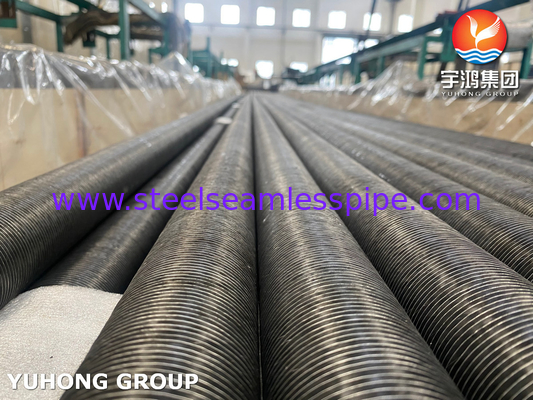

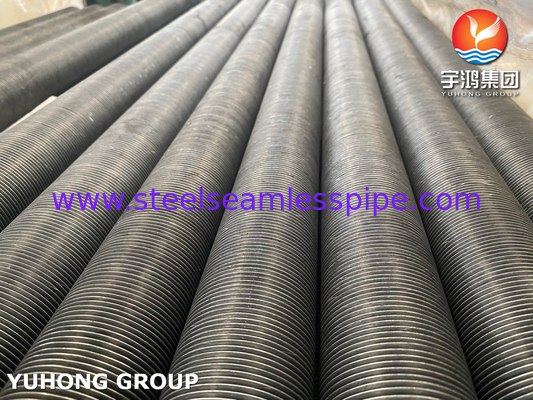

ASTM A179 Carbon Steel Finned Tube L Type LL Type KL Type Fin Tube For Air Cooler

ASTM A179 Carbon Steel Finned Tube, L Type, LL Type, KL type Fin Tube For Air Cooler

ASTM A179 specifies seamless cold-drawn low-carbon steel tubes primarily used in tubular heat exchangers, condensers, and similar heat transfer devices. When combined with A1060 aluminum fins, the tubes can be enhanced for greater heat transfer efficiency. These fins can be applied in various configurations, including L, G, LL, and KL types, each offering unique benefits for different applications.

Advantages of ASTM A179 Fin Tube with A1060 Fin

1. Enhanced Heat Transfer: The addition of A1060 aluminum fins increases the surface area, significantly improving heat transfer efficiency.
2. Corrosion Resistance: Aluminum fins offer good resistance to corrosion, which extends the lifespan of the tubes in harsh environments.
3. Lightweight: Aluminum fins are lightweight, reducing the overall weight of the heat exchanger unit.
4. Cost-Effective: Combining carbon steel tubes with aluminum fins provides a cost-effective solution compared to using more expensive materials like stainless steel or copper.
5. Versatile Configurations: The availability of different fin types (L, G, LL, KL) allows customization for specific heat transfer requirements and mechanical properties.

Production Process of ASTM A179 Fin Tube with A1060 Fin

1. Tube Manufacturing: ASTM A179 tubes are produced by seamless cold-drawn methods to ensure precision and high quality.
2. Fin Attachment:
   • L-Type: L-shaped fins are wrapped around the tube with the fin foot tension wound, providing a tight fit and good thermal contact.
   • G-Type: G-shaped fins are embedded into the tube wall by cutting grooves and then winding the fin into these grooves.
   • LL-Type: Similar to L-type but with an extra layer of overlapping fins, offering higher mechanical strength and better thermal contact.
   • KL-Type: Combines the benefits of both embedded and tension-wound fins, providing superior heat transfer and mechanical strength.
3. Finning Process: The fins are applied using specialized finning machines that ensure precise attachment and consistent quality.
4. Testing and Quality Control: The finned tubes undergo rigorous testing to ensure they meet the required specifications and performance standards.

Applications of ASTM A179 Fin Tube with A1060 Fin

1. Heat Exchangers: Widely used in shell and tube heat exchangers for various industries, including chemical processing and power generation.
2. Condensers: Ideal for use in condensers, particularly in HVAC systems and power plants, where efficient heat transfer is critical.
3. Boilers: Used in economizers and other boiler components to enhance heat recovery and improve overall efficiency.
4. Air Coolers: Employed in air-cooled heat exchangers and radiators, benefiting from the improved heat dissipation provided by the fins.
5. Petrochemical Plants: Suitable for heat recovery applications in petrochemical plants, improving energy efficiency.
6. Refrigeration: Used in refrigeration systems for better thermal management and heat exchange efficiency.
