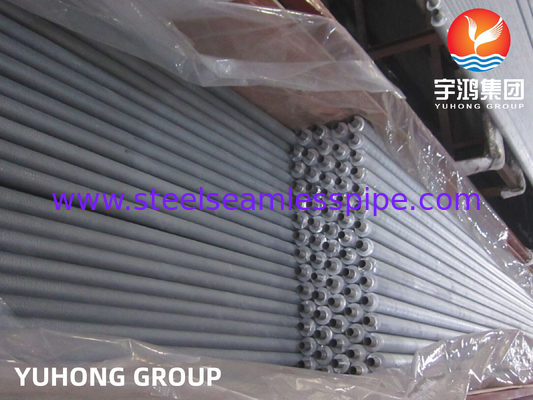

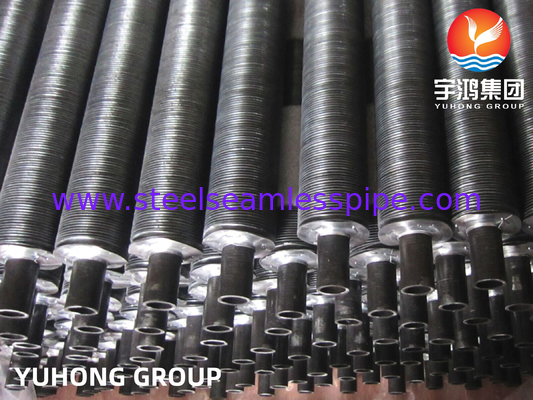

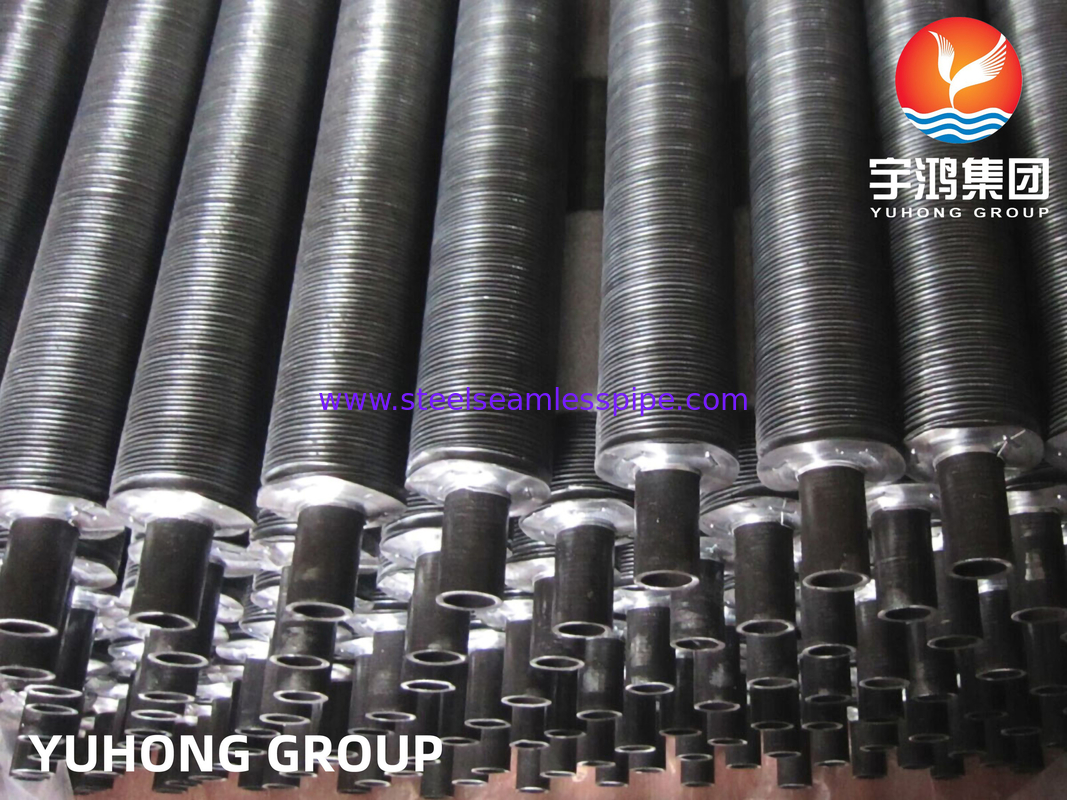

Embedded G Type Fin Tube ,ASME SA179 with Aluminum , For air cooler application
Overview
Material: A179 is a low carbon steel.
Standard: ASTM A179/A179M.
Form: Seamless cold-drawn tubes.
Key Features
High Heat Transfer Efficiency: Due to its low carbon content, A179 tubes have excellent thermal conductivity, making them ideal for heat exchangers, condensers, and similar applications.
Corrosion Resistance: While not as corrosion-resistant as stainless steel, A179 offers sufficient protection against oxidation and corrosion in typical environments.
Mechanical Properties: A179 tubes offer good mechanical strength and can withstand moderate pressures and temperatures. They are suitable for applications involving bending and coiling.
Applications
Heat Exchangers: Widely used in boilers, superheaters, condensers, and economizers.
Air Coolers: Ideal for use in air-cooled heat exchanger systems.
Condensers: Commonly used in various industrial processes requiring heat exchange.
Chemical Composition
Carbon (C): ≤ 0.06%
Manganese (Mn): 0.27-0.63%
Phosphorus (P): ≤ 0.035%
Sulfur (S): ≤ 0.035%
Mechanical Properties
Tensile Strength: ≥ 325 MPa
Yield Strength: ≥ 180 MPa
Elongation: ≥ 35%
Advantages
Seamless Construction: Ensures uniform strength and prevents leakage.
Versatility: Suitable for a variety of industrial applications.
Cost-Effective: Provides a good balance of performance and cost
SA179 steel tube contains the accompanying determinations: ASTM A179/ASME SA179 with Seamless – Hot Rolled or Cold Drawn sort, 1/4" NB To 2" NB (Nominal Bore Size) external Diameter, 1 mm Thickness to 8 mm divider Thickness, length as 5800mm/ 6000mm/ 6096mm/ 7315mm/ 11800mm, etc upto Max length 27000mm with Plain Ends/Beveled Ends/Coupling. Measures A179 Tube Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes, Tube Certified and Tested as per Impact Test, Heat Treated, Hardness Test, Flattening Test, Reverse Flattening Test, Flaring Test, Flange Test, Hydrostatic Test.The Carbon Steel A179 Heat-Exchanger Tubes is carefully exposed to different tests so as to guarantee the nature of the item. This evaluation of the cylinder is stuffed in wooden box or case so as to maintain a strategic distance from outer harm amid the last phase of creation. These evaluations of cylinders are utilized in different modern applications and are accessible in market driving costs. You can without much of a stretch purchase this cylinder from our market sellers.
ASME SA179 TUBES SPECIFICATIONS
| Standards |
ASTM, ASME and API |
| Size |
1/2” NB to 36” NB |
| Thickness |
3-12mm |
| Schedules |
SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance |
Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| Craft |
Cold rolled and Cold drawn |
| Type |
Seamless / ERW / Welded / Fabricated |
| Form |
Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length |
Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End |
Plain End, Beveled End, Treaded |
Features:
- Dimensional accuracy.
- High strength
- Durable
- Corrosion resistance
- Fine finish
Application:
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
Inspection and Tests Performed:
Chemical Composition inspection, Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test
Surface Treatment:
Oil-dip, varnish, Passivation, phosphating, Shot Blasting
For a rapid quotation, plz send with following requirement:
Number of pieces,
base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Delivery period required.
